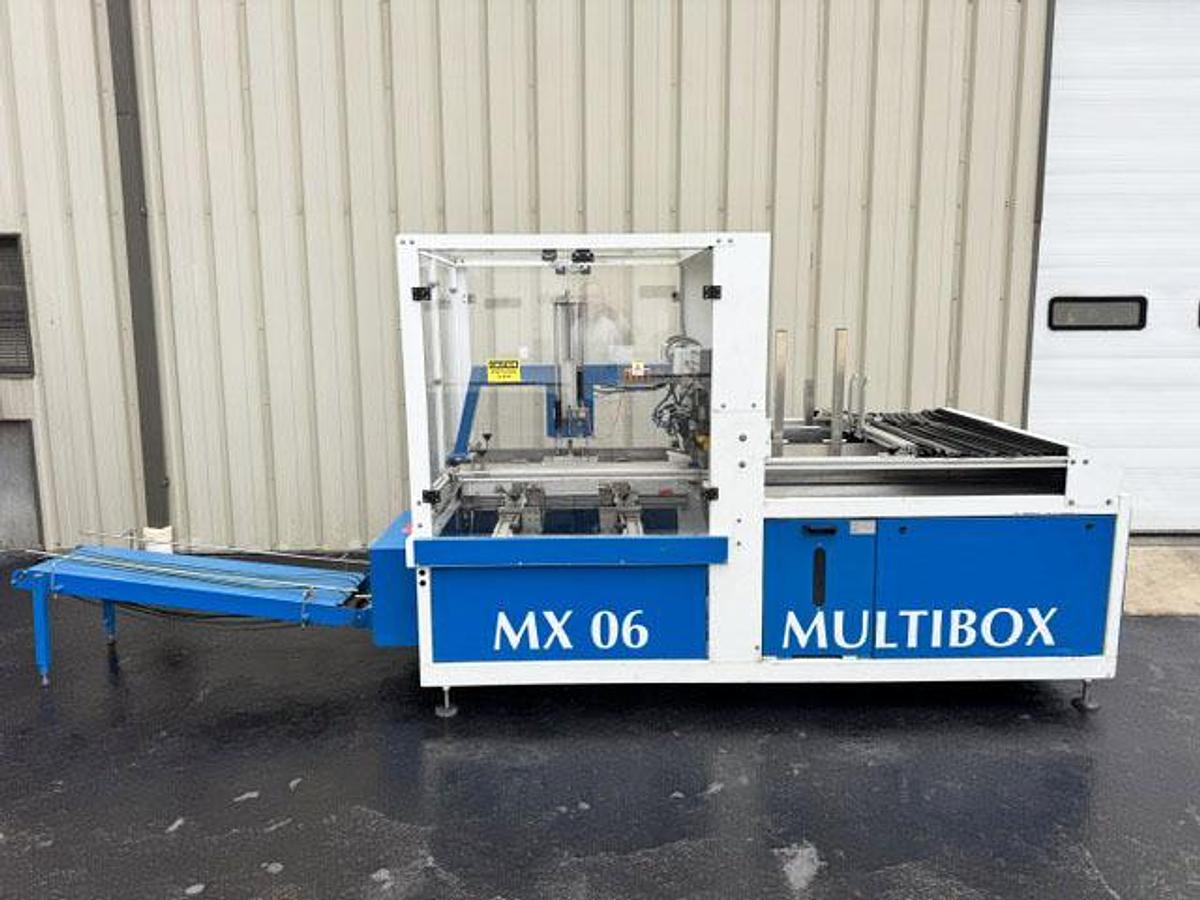

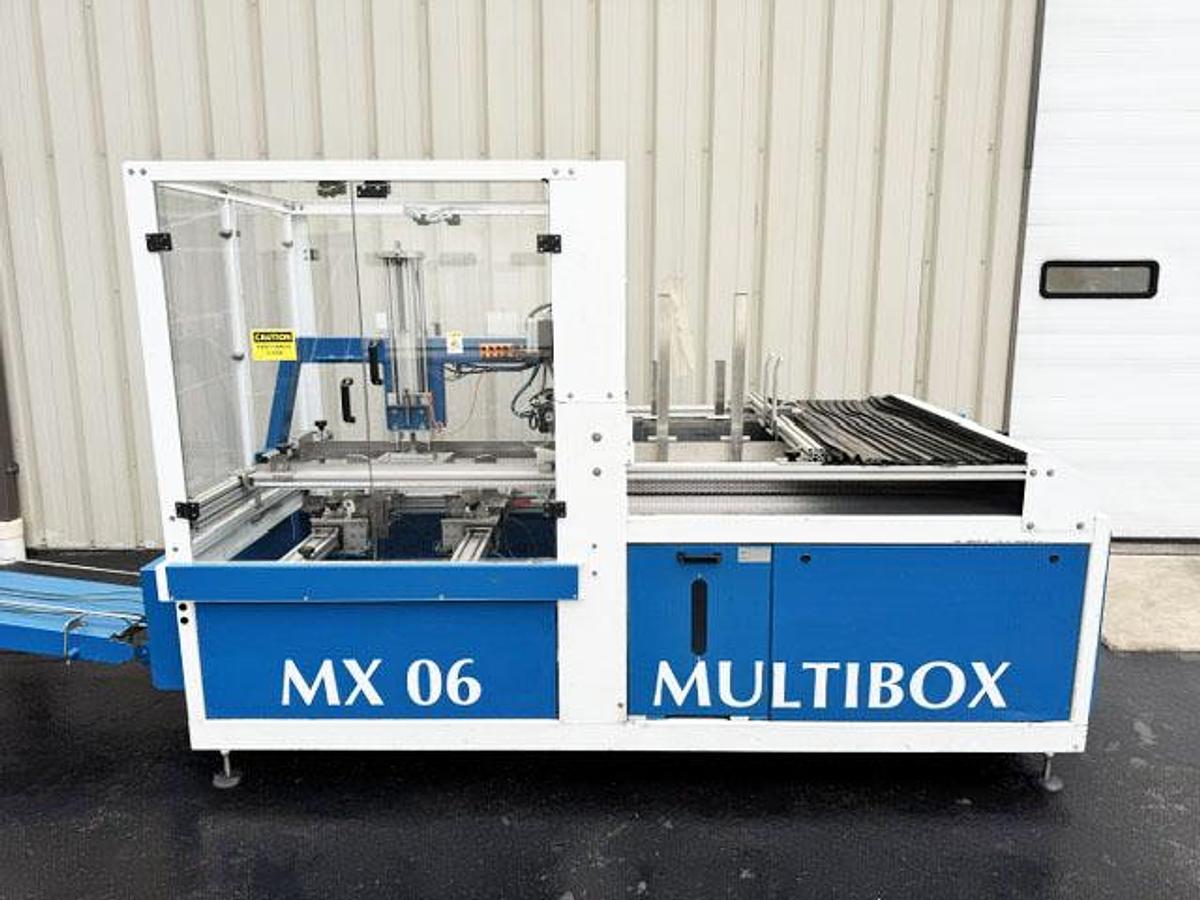

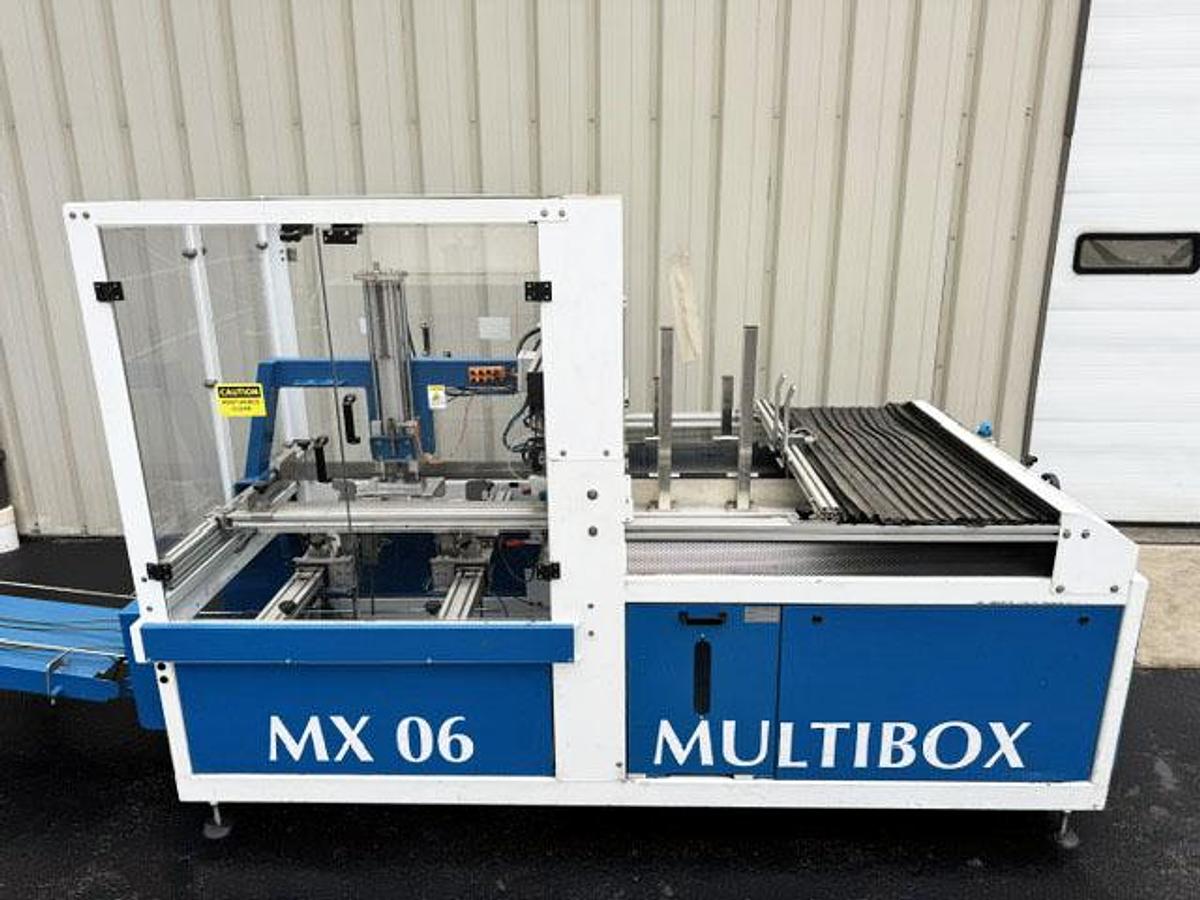

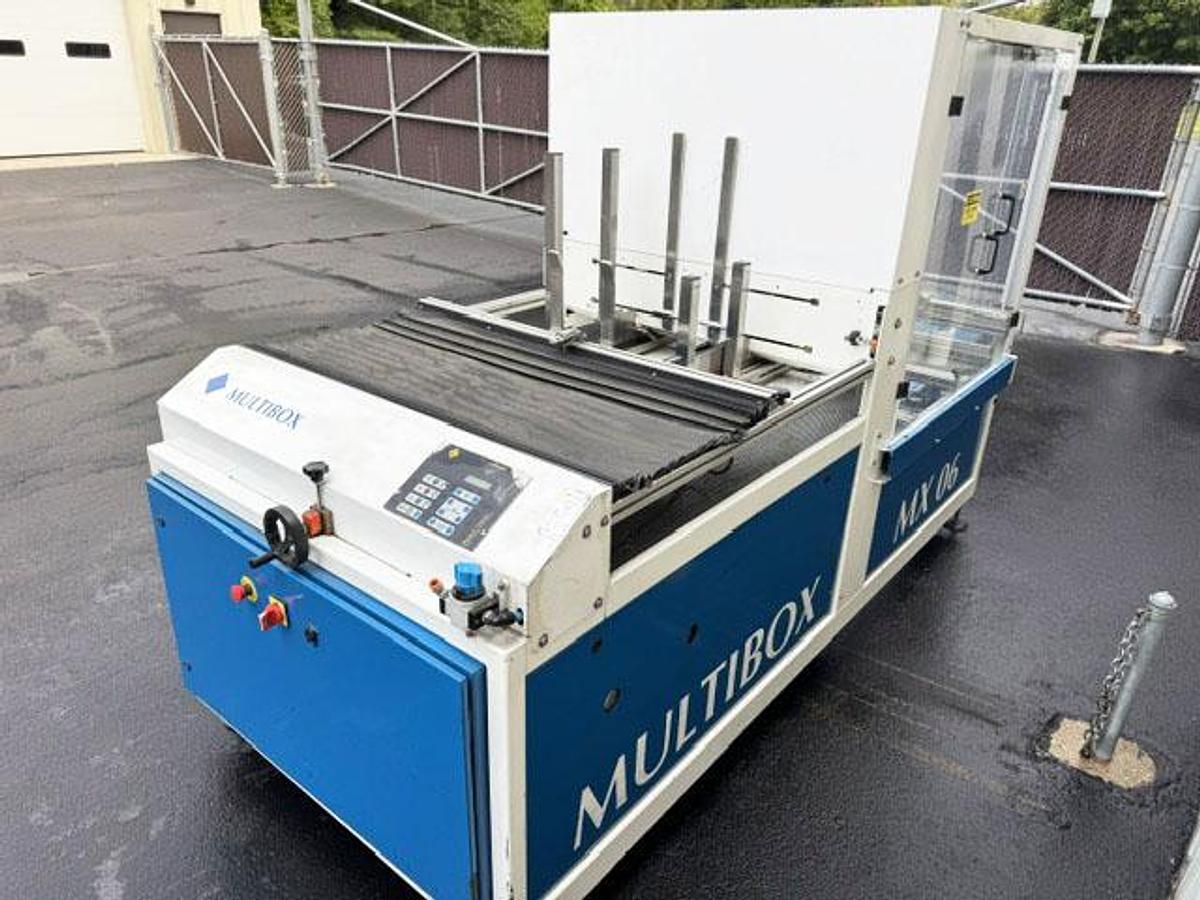

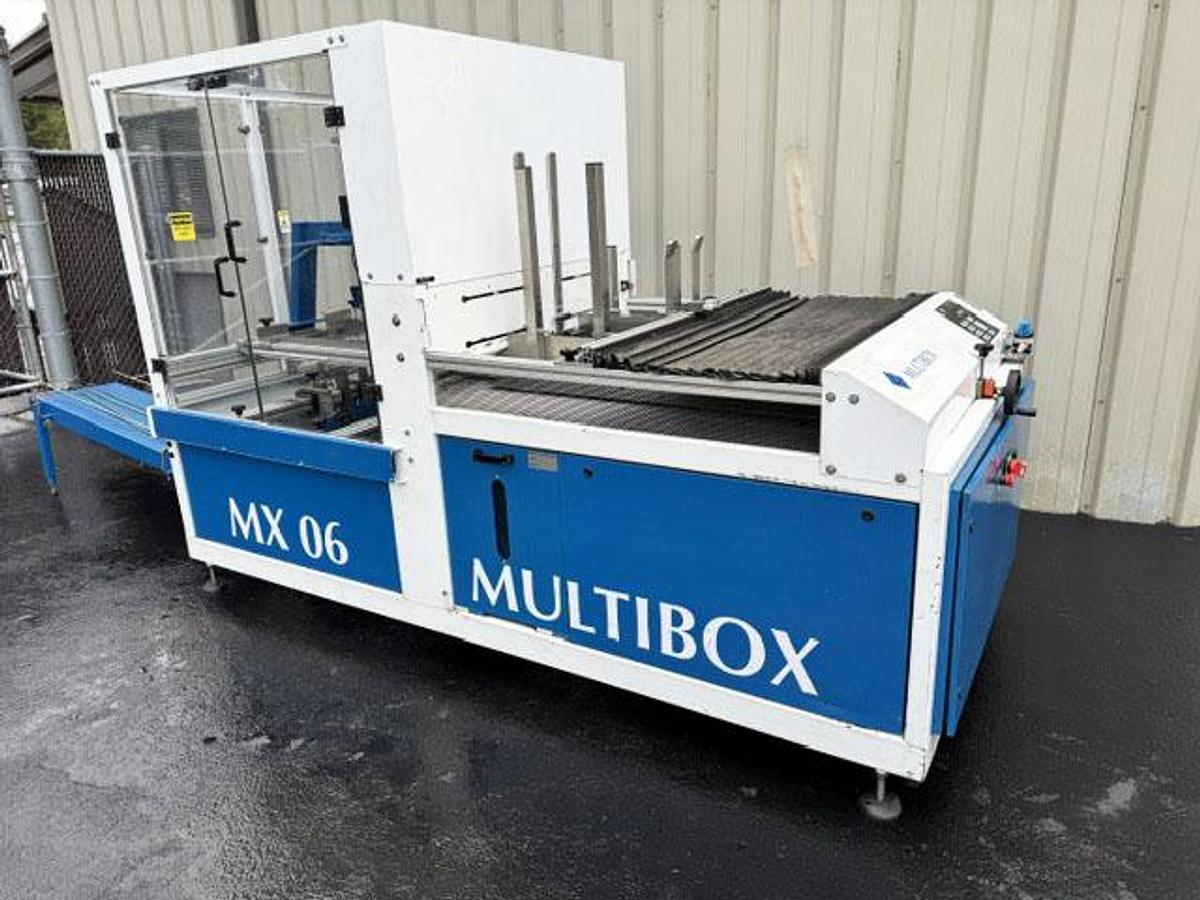

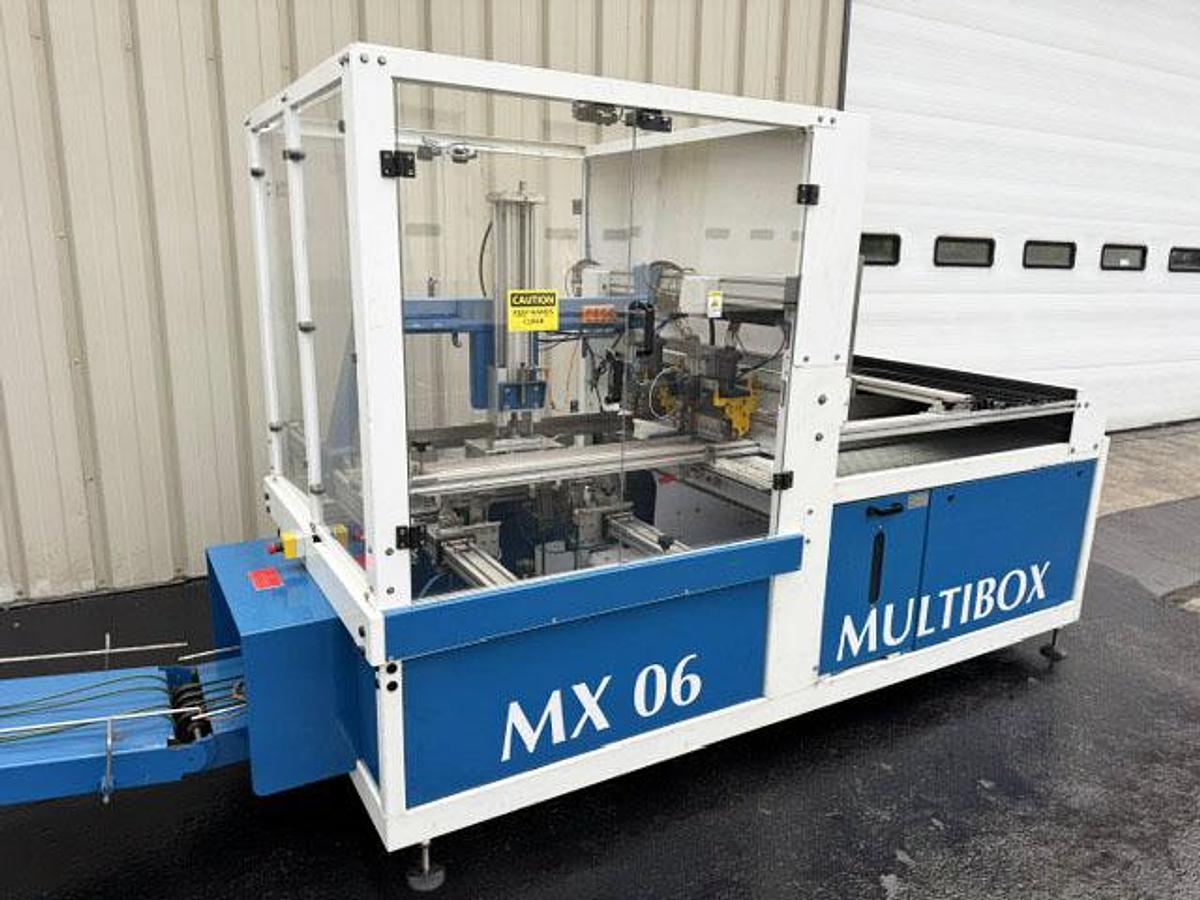

Multibox Automatic Hot Glue Tray Former Erector model MX06

used Multibox MX06 Automatic Hot Glue Tray Former Erector

Details:

- Model Number MX06

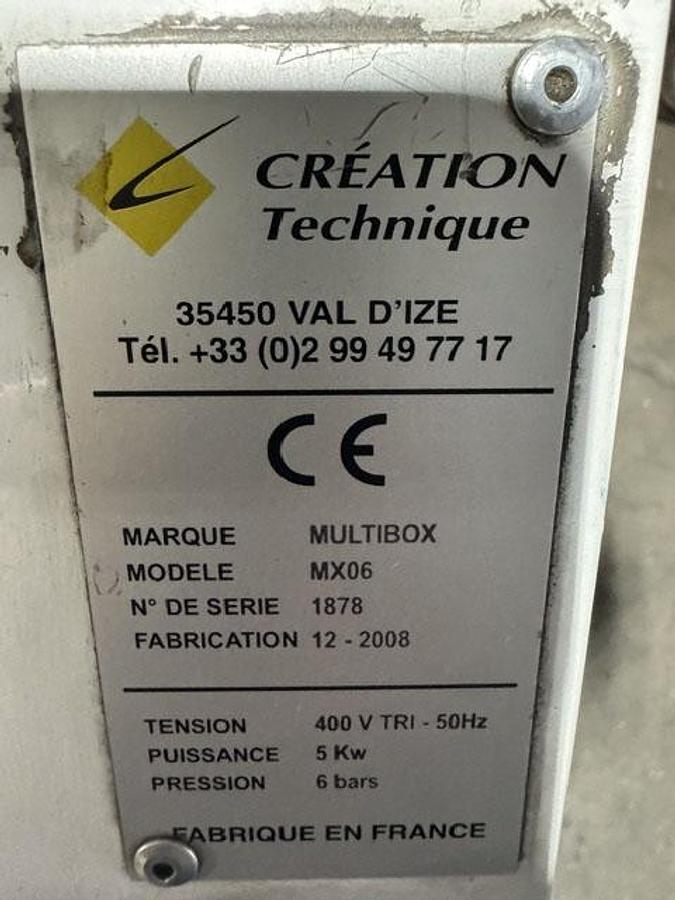

- Serial Number 1878

- Manufacturer: Multibox International B.V. (Creation Technique)

- Vertical Tray Former Erector

- Factory rated speed 800 – 1000 trays per hour

- Tray Length Range 300 mm to 600 mm

- Tray Width Range 200 mm to 400 mm

- Tray Height Range 80 mm to 150 mm

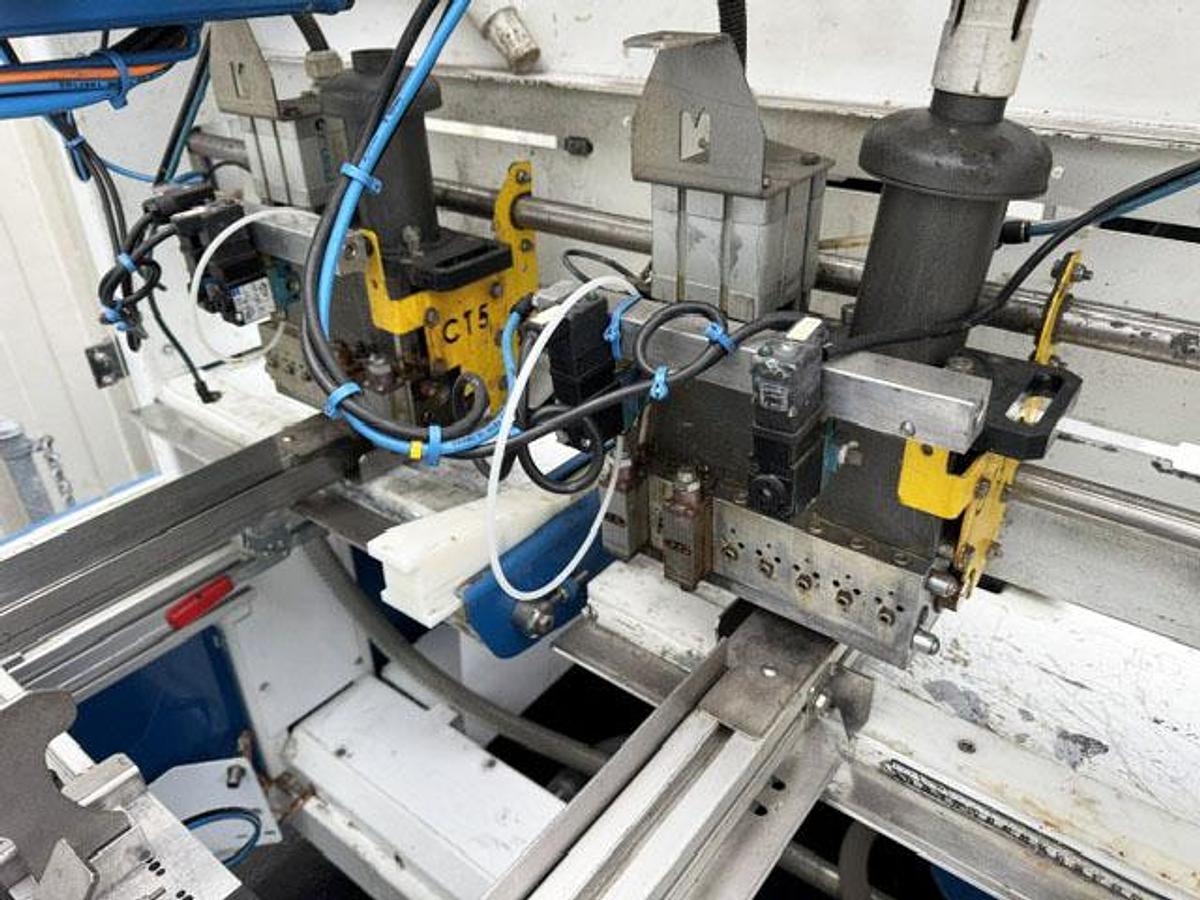

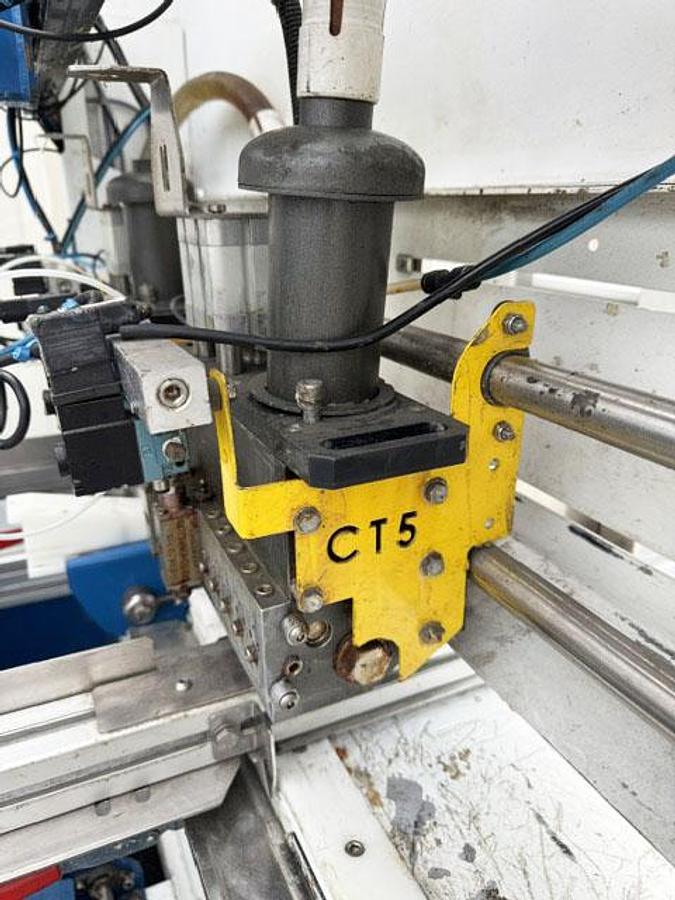

- Built In/Integrated Hot-Melt Glue System with (2) CT5 Hot Glue Applicators

- Multi-Format Quick-Adjustment Capability

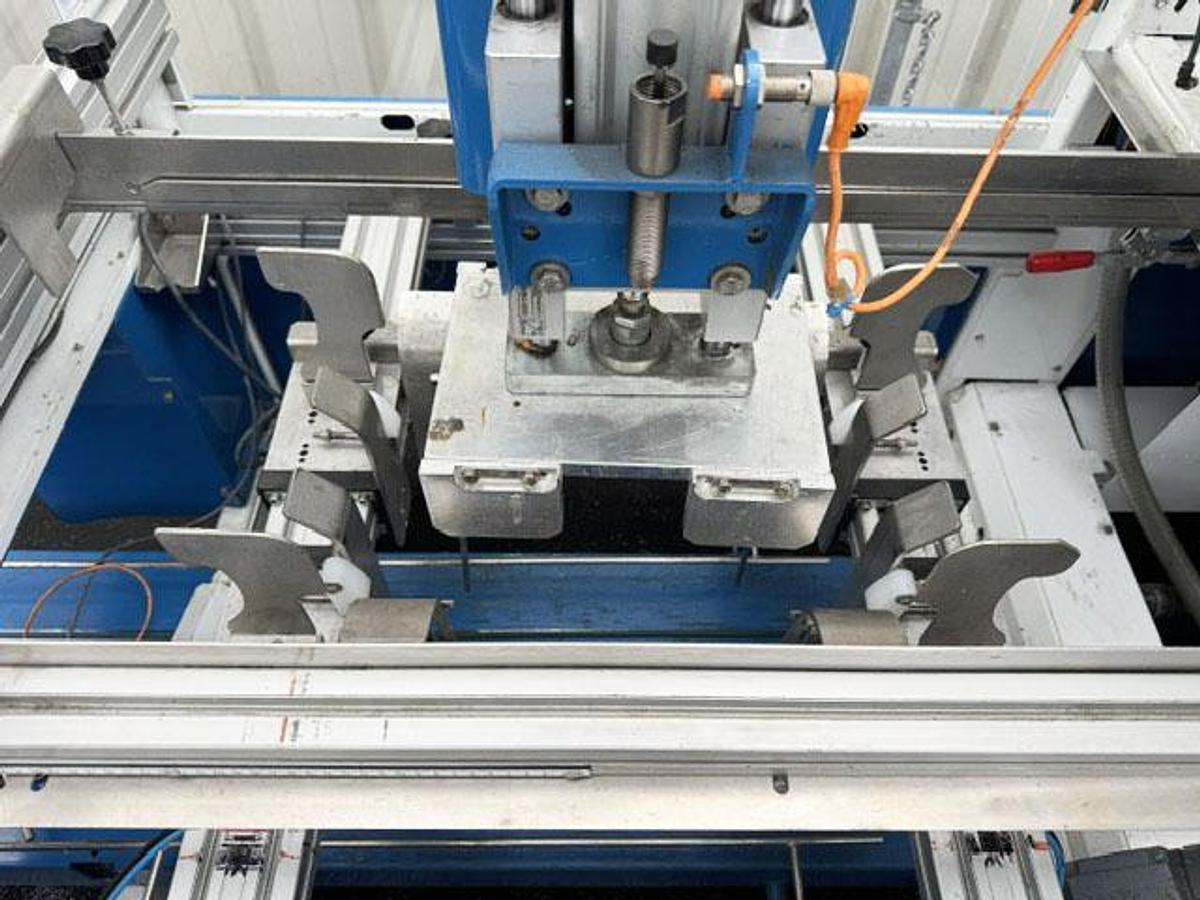

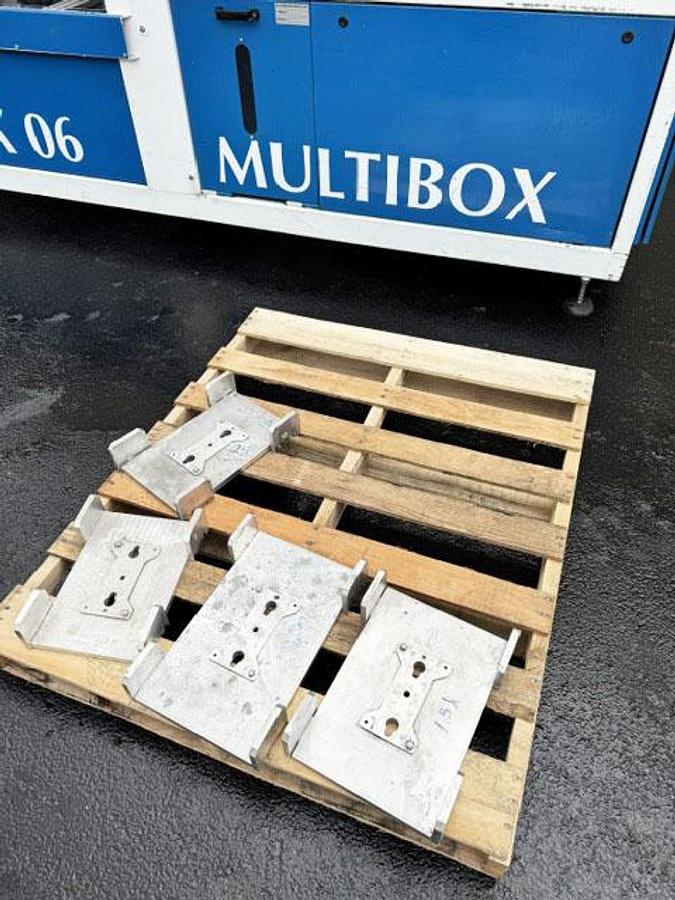

- Includes (3) Existing Tray Mandrels (16” x 10.5”, 14.25” x 10.75”, 14.5” x 10”, 13” x 9.75”, 10.5” x 8”)

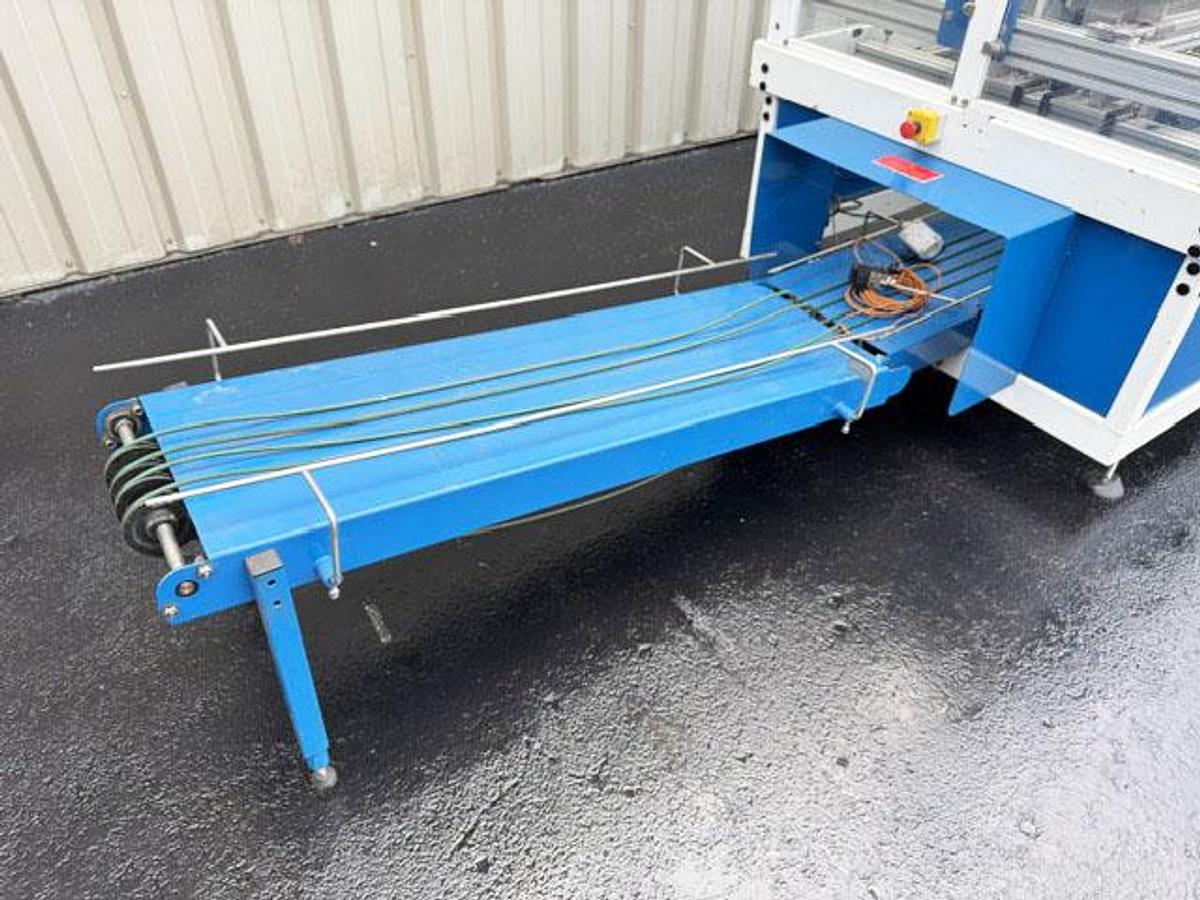

- Extended Tray Discharge Conveyor x 60” Long

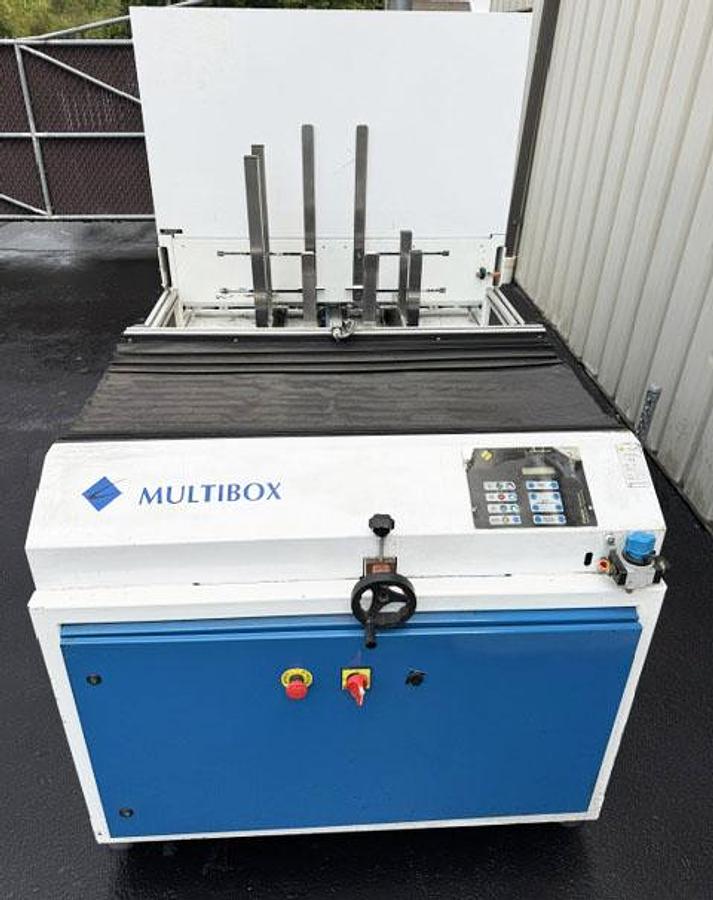

- Operator Controls with E-Stops

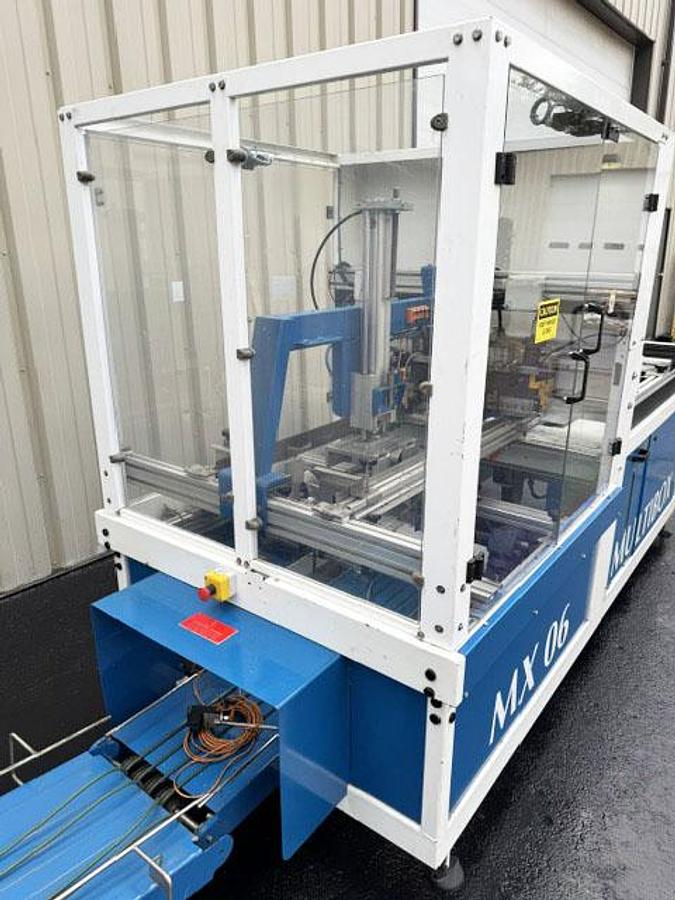

- Safety Interlocking Access Doors

- Electrical 400 Volt, 3 Ph, 5 Kw, CE Rated

- Pneumatic supply of 6 bars

- (4) Threaded Leveler Legs

- Base Machine Dimensions 132” L x 53” W x 77” H

- Condition: Used

Manufacturers Description

This vertical tray erecting machine is designed for forming and gluing corrugated trays from flat die-cut pieces. It produces tray-type packaging featuring four  glued sides, suitable for various packaging needs. The machine supports formats up to a maximum size of 600 mm in length, 400 mm in width, and 150 mm in height. It offers multi-format capability, allowing easy and reliable format changes.

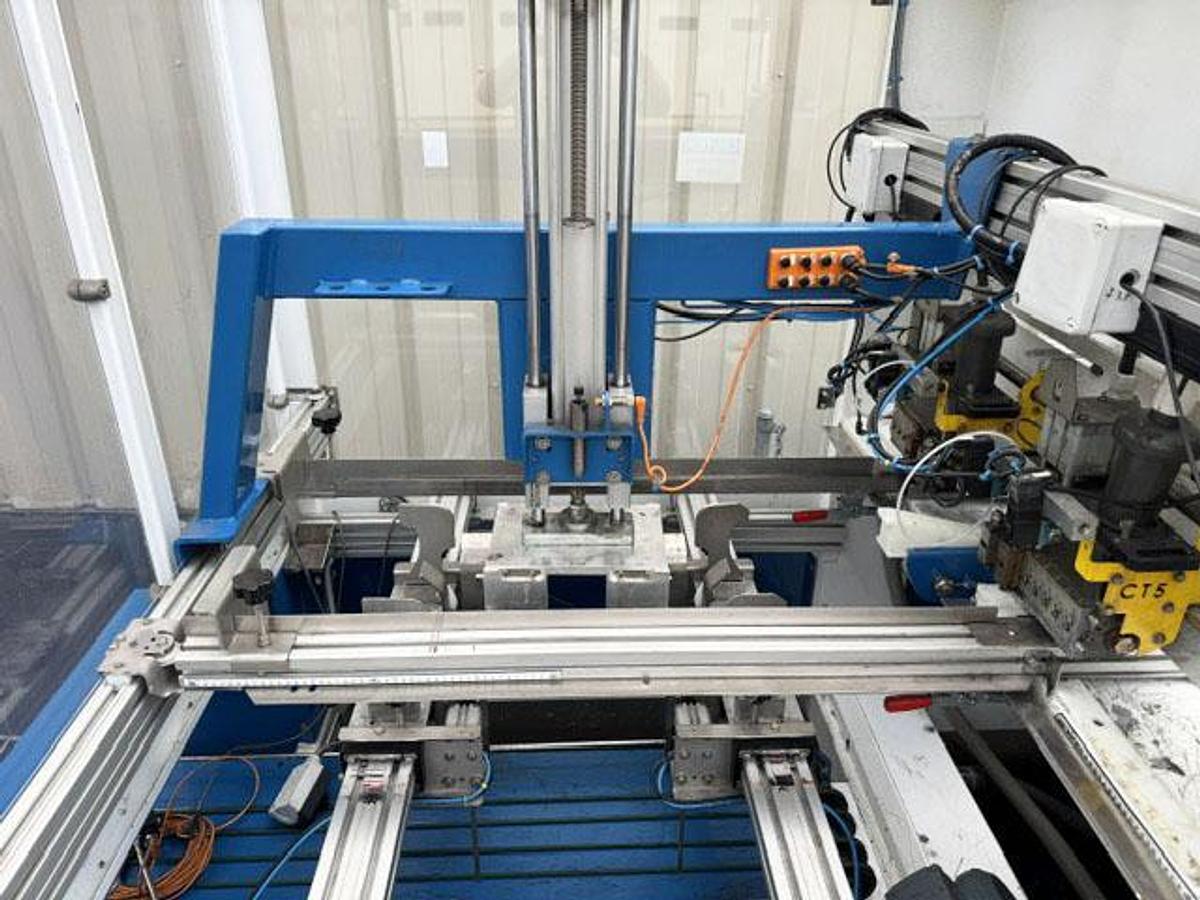

The machine is equipped with a built in integrated gluing system and pneumatic components, including visible pneumatic cylinders and tubes, which are integral

to its operation. It features an extended discharge conveyor belt with rollers on a blue frame for efficient tray handling.

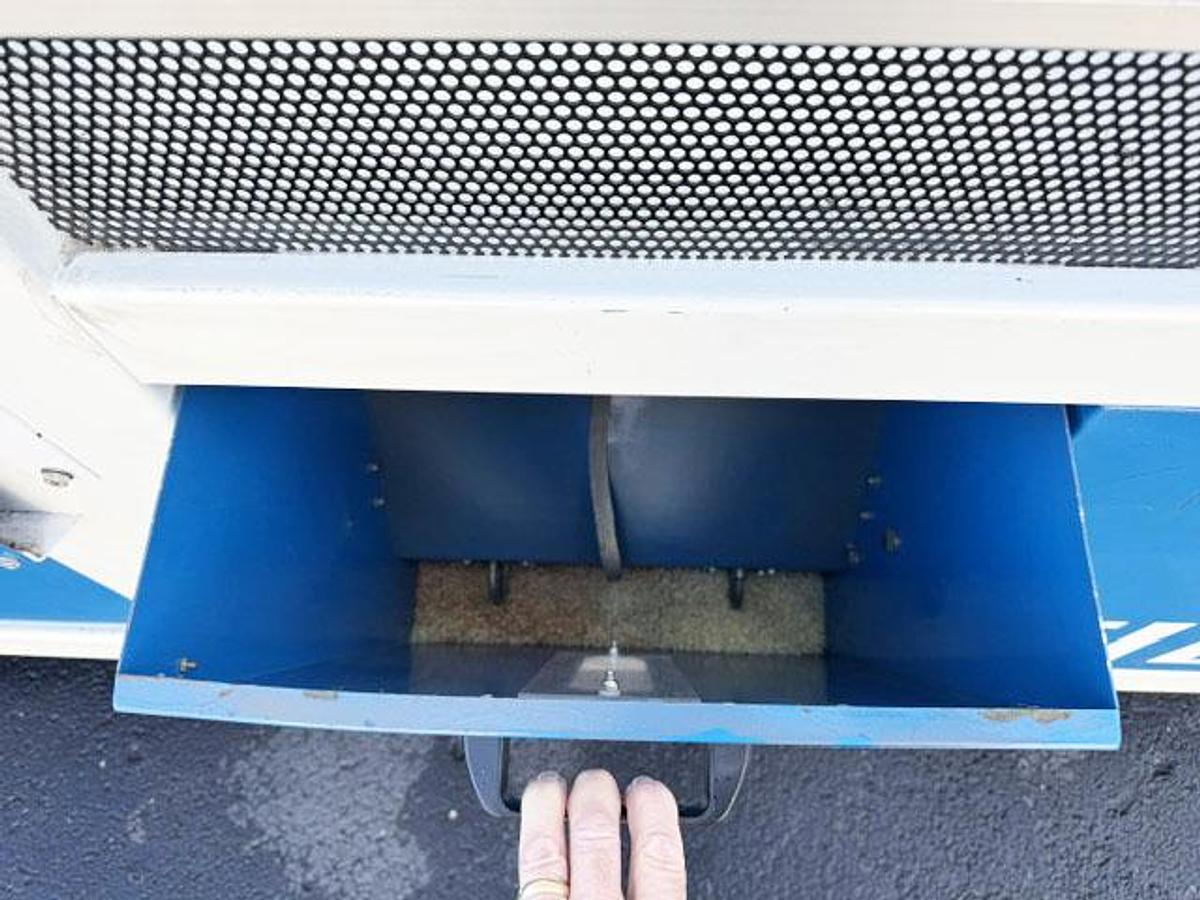

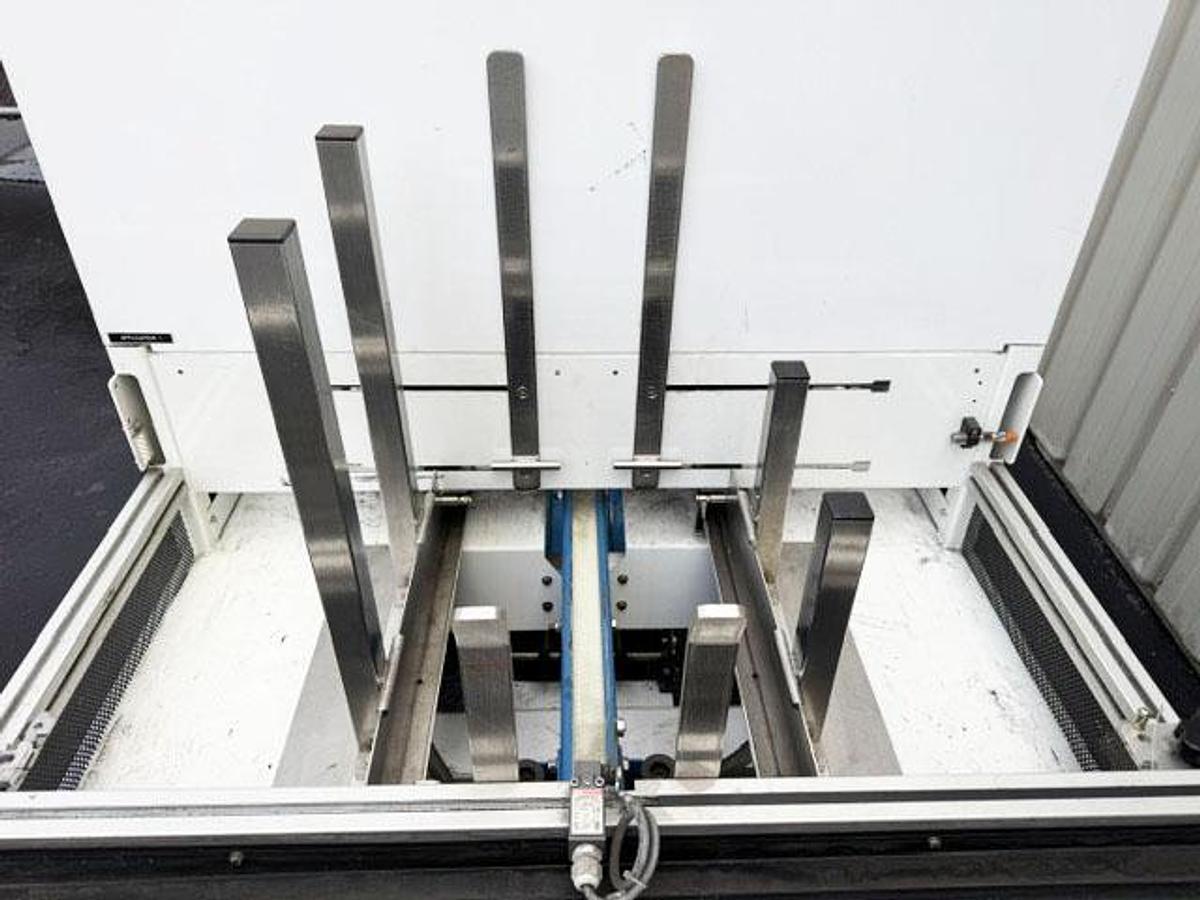

Ergonomic design elements include a cardboard cutout loading height of 870 mm, glue loading height of 1070 mm, and tray output height of 150 mm. The cardboard cutout magazine can hold approximately 250 cutouts at a height between 450 and 500 mm, allowing magazine loading without stopping production.

Glue applicators, each holding 3 kg, can also be loaded during operation after an pre-heating period.
