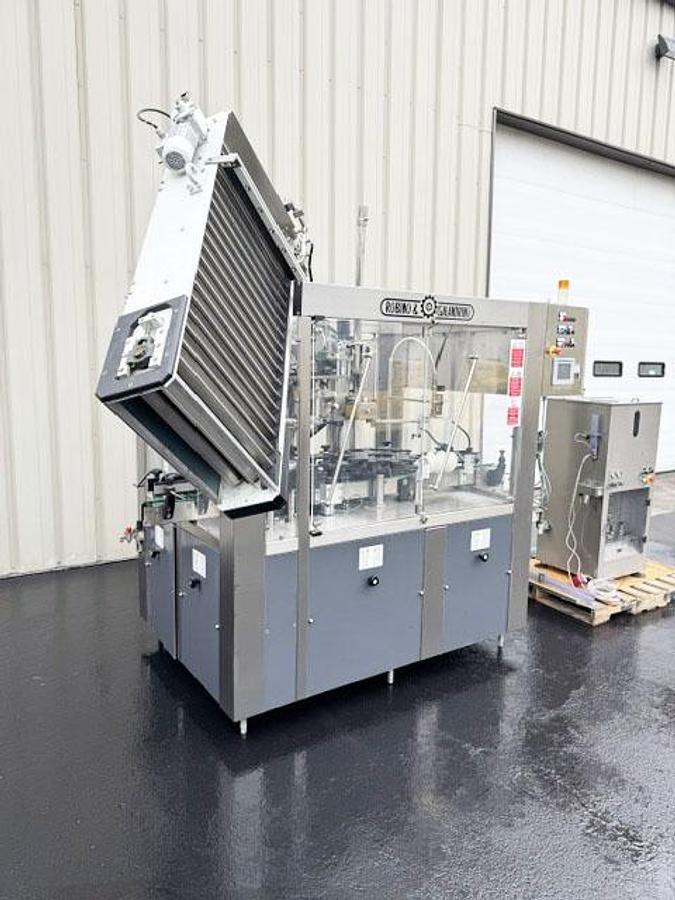

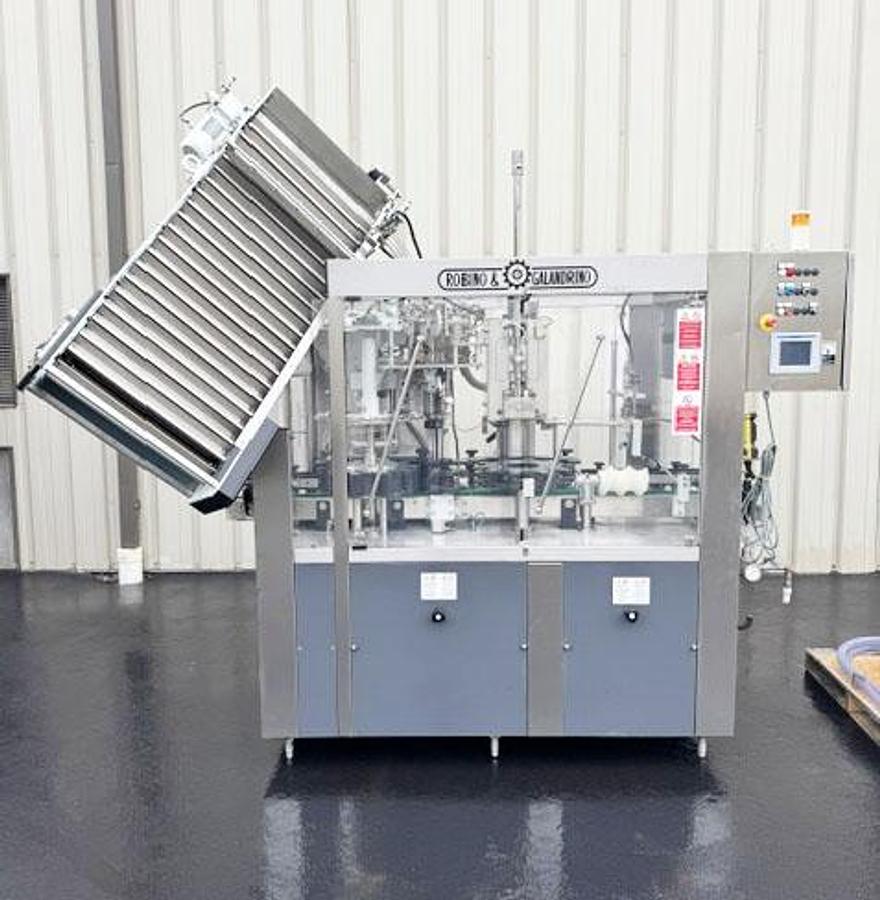

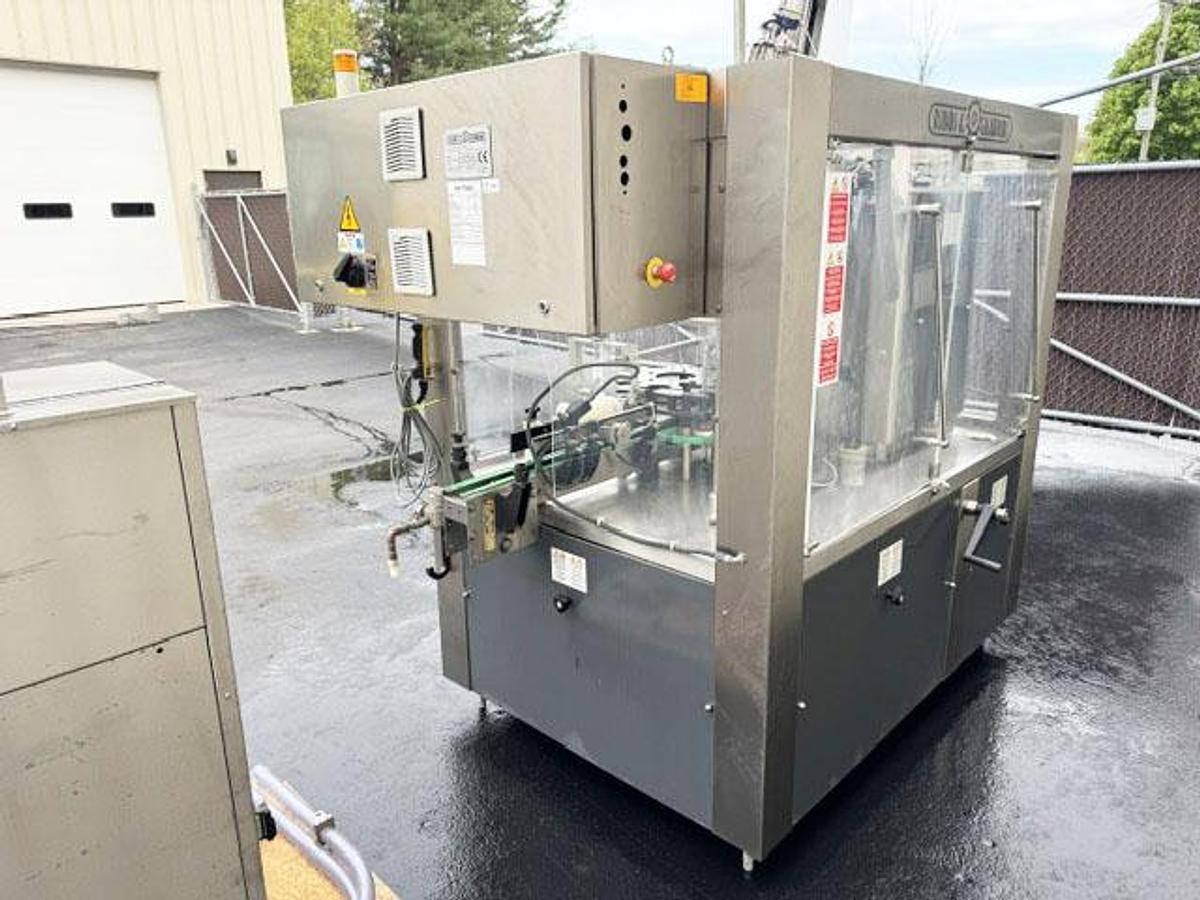

Robino & Galandrino Monbloc Automatic Corker and Wire Hooder

Robino & Galandrino Monbloc Automatic Corker and Wire Hooder

Robino & Calandrino, based in Italy, is a leading manufacture of automatic monobloc machines designed for corking and wire hooding sparkling wine, champagne, beer and cider bottles. Their equipment is designed to handle the full process from bottle infeed to final wire hood application.

Details:

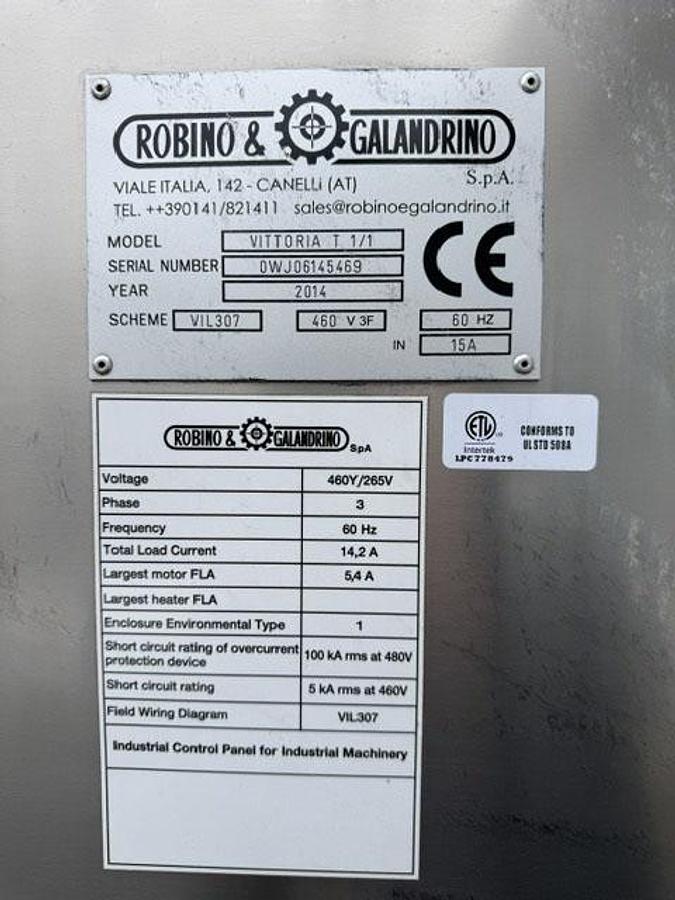

- Model VITTORIA T 1/1

- Serial Number 0WJ06145469

- Manufacturer: Robino & Galandrino S.p.A., Canelli Italy

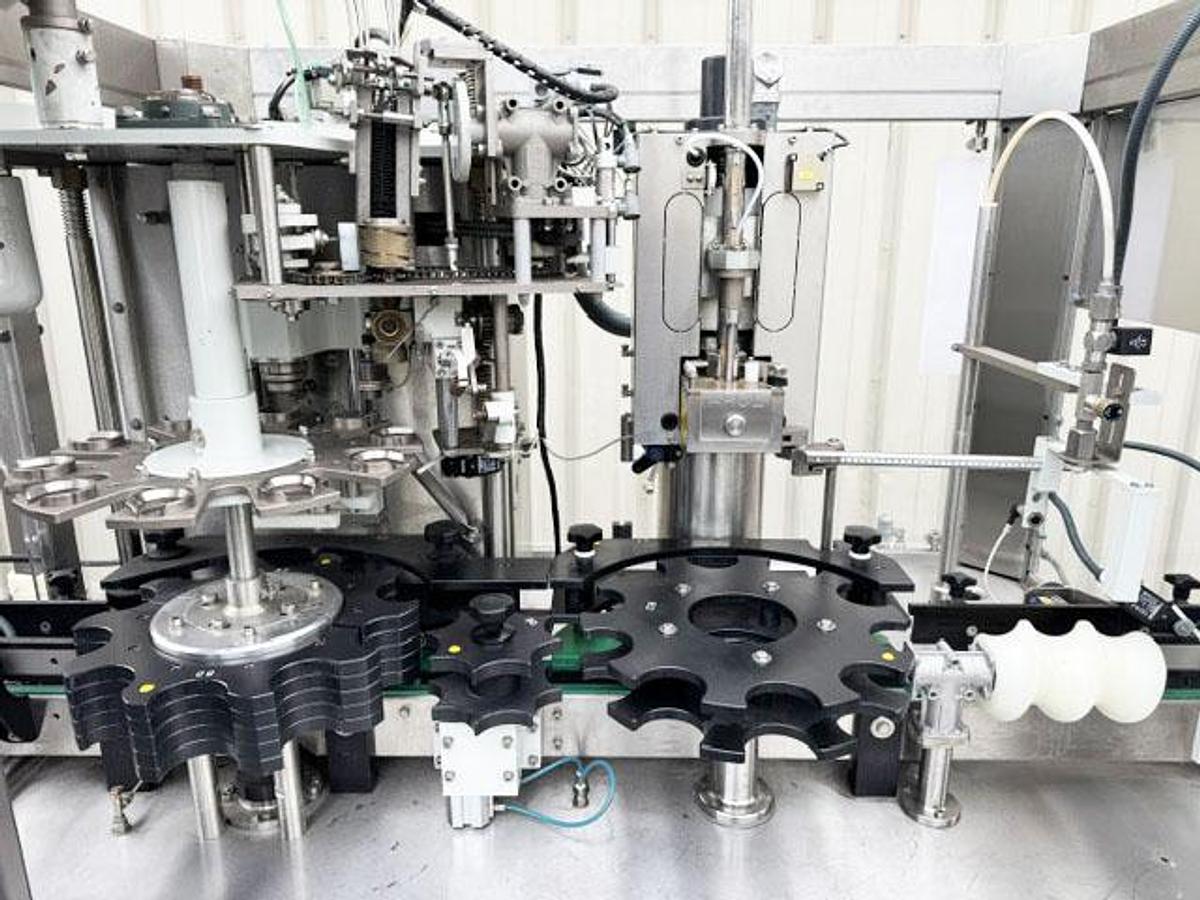

- Automatic monobloc corking & wire-hooding machine

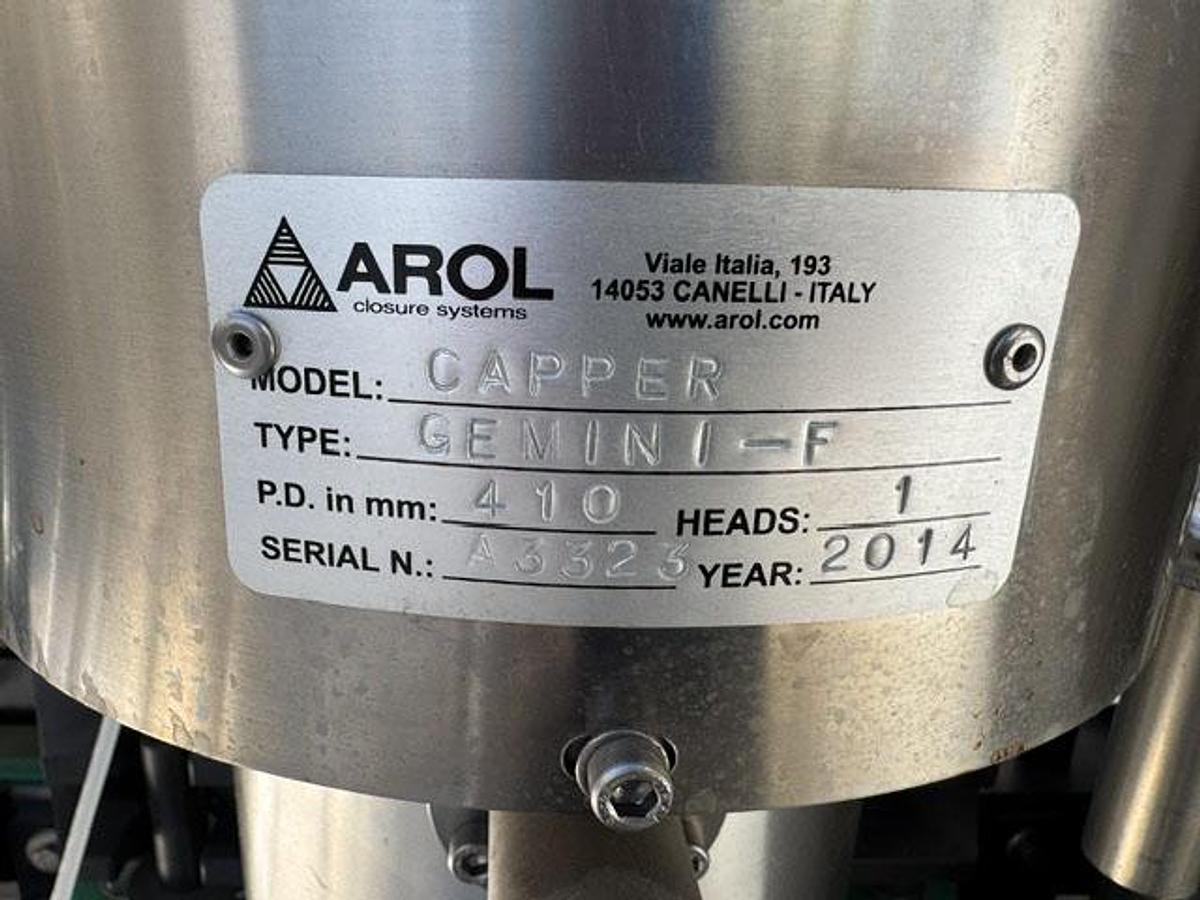

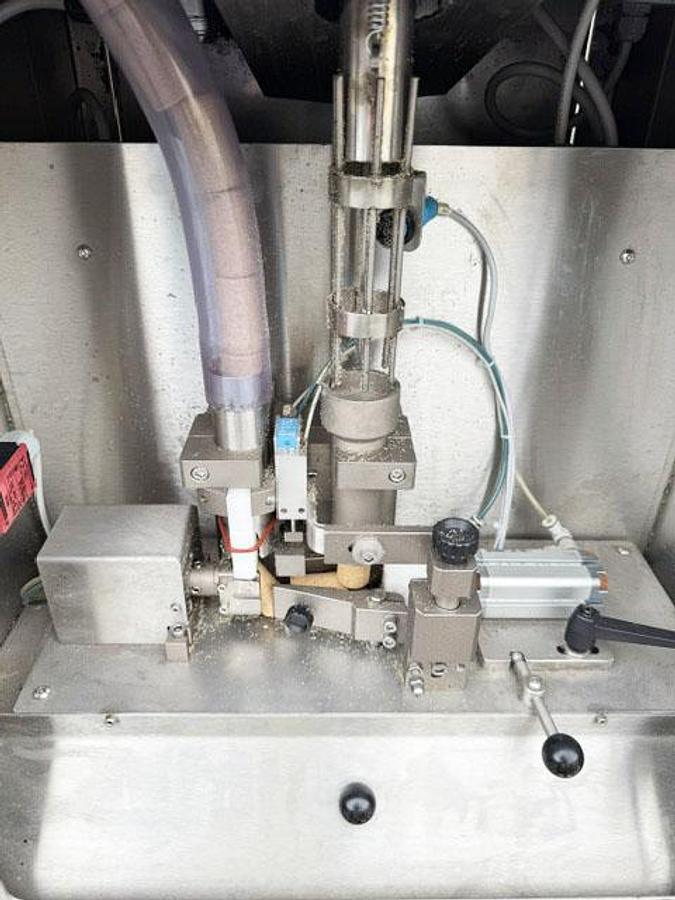

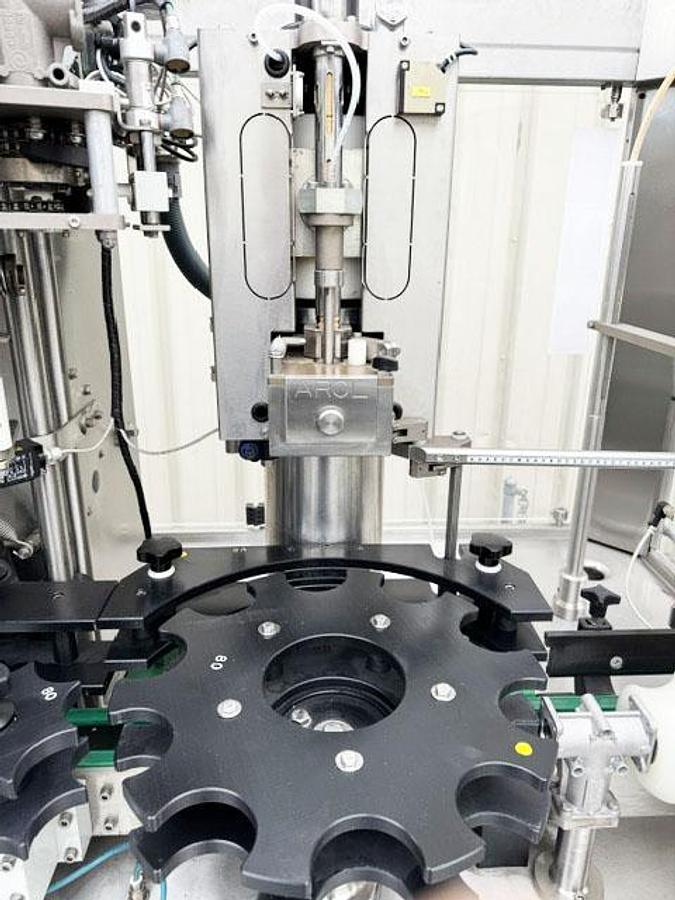

- AROL Model TSI-CLOSYS GEMINI-F Single Head Corker, Serial Number A3323

- Corker presently set for straight beveled corks

- 3.25” Wide x 94” Long Pull Through Bottle Conveyor Section

- Right to Left Container Flow

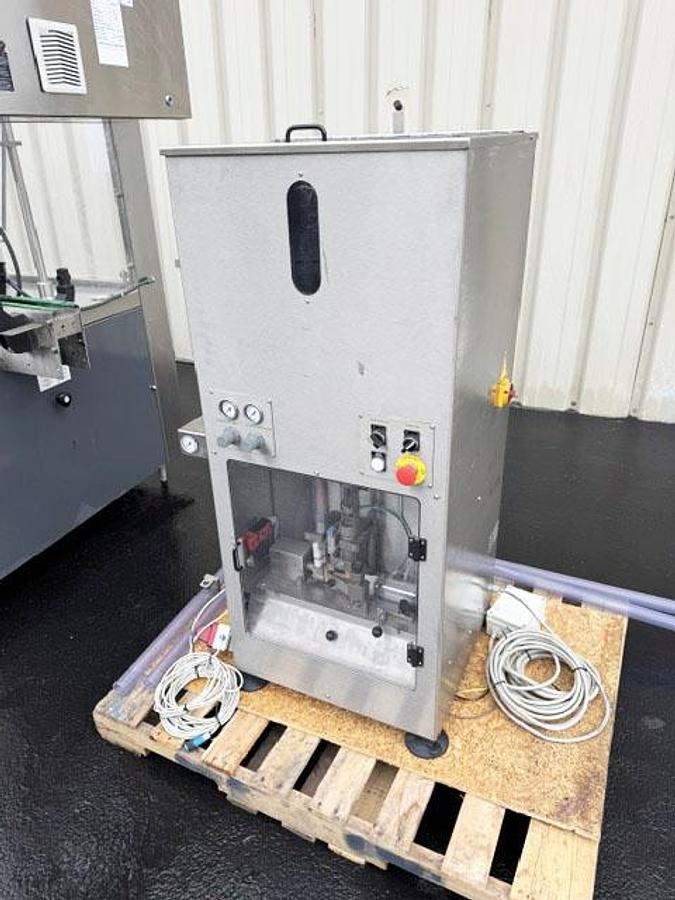

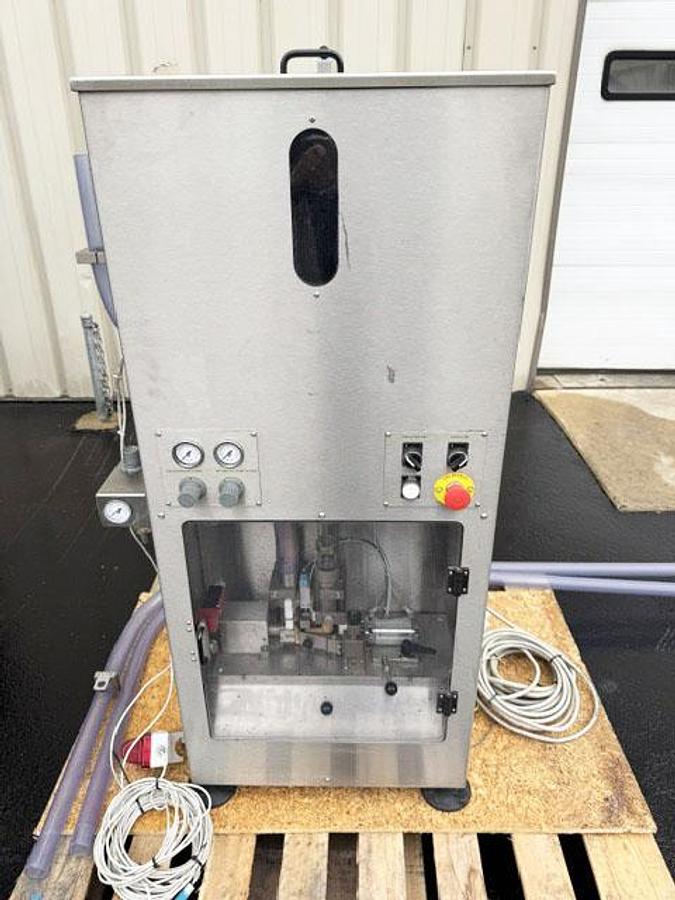

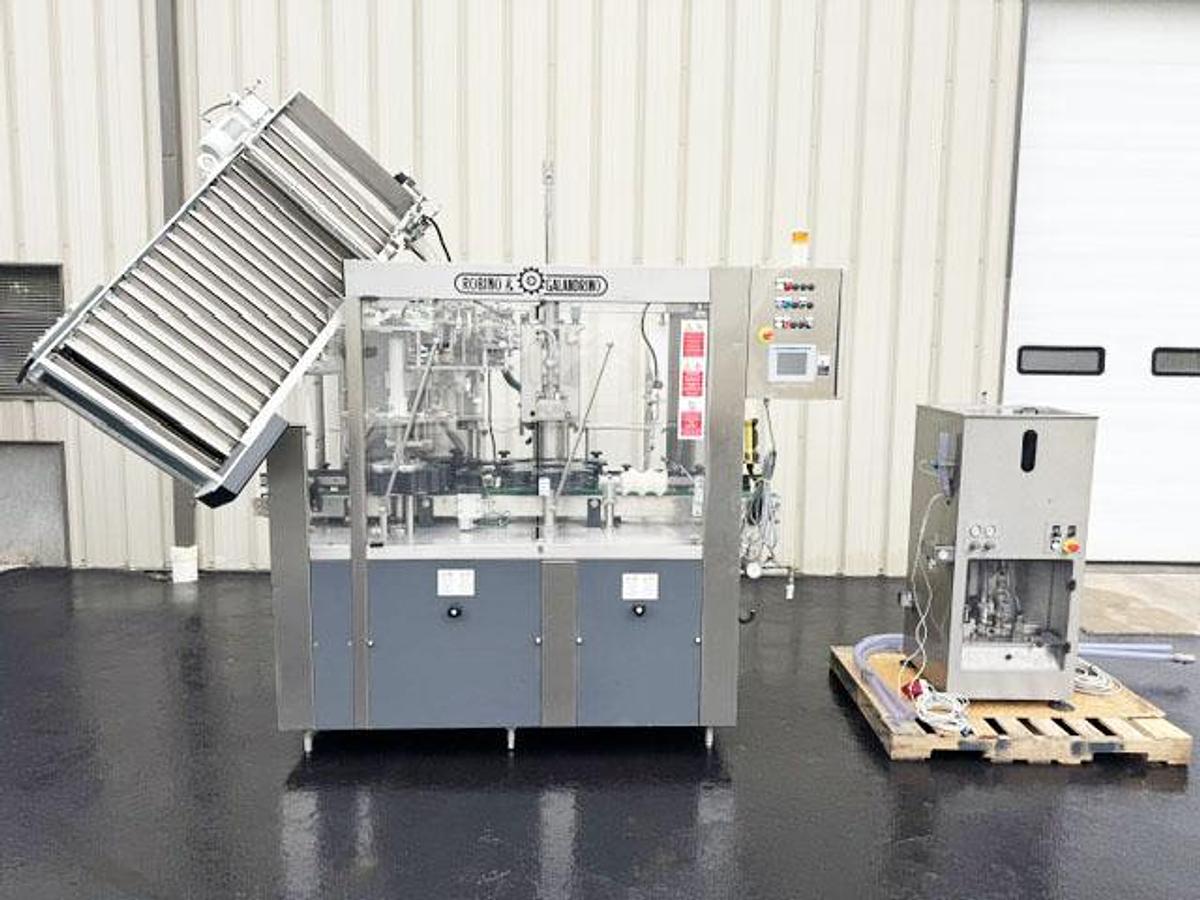

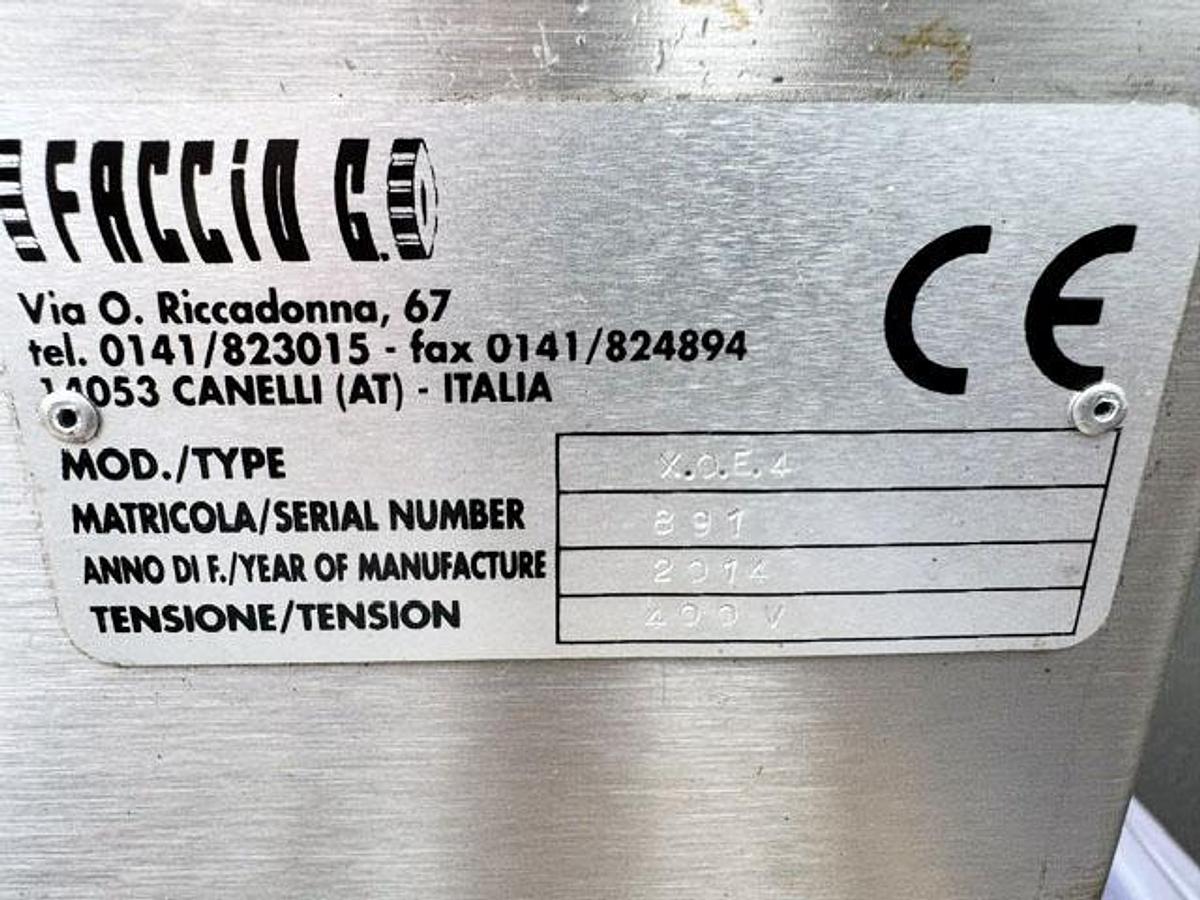

- FACCIO GIUSEPPE Model X.O.E.4 Pneumatic Cork Hopper-Orientor, Serial Number 891

- Cork Size Range – Min 24mm diameter x 38mm length, Max 30.5mm diameter x 48mm length

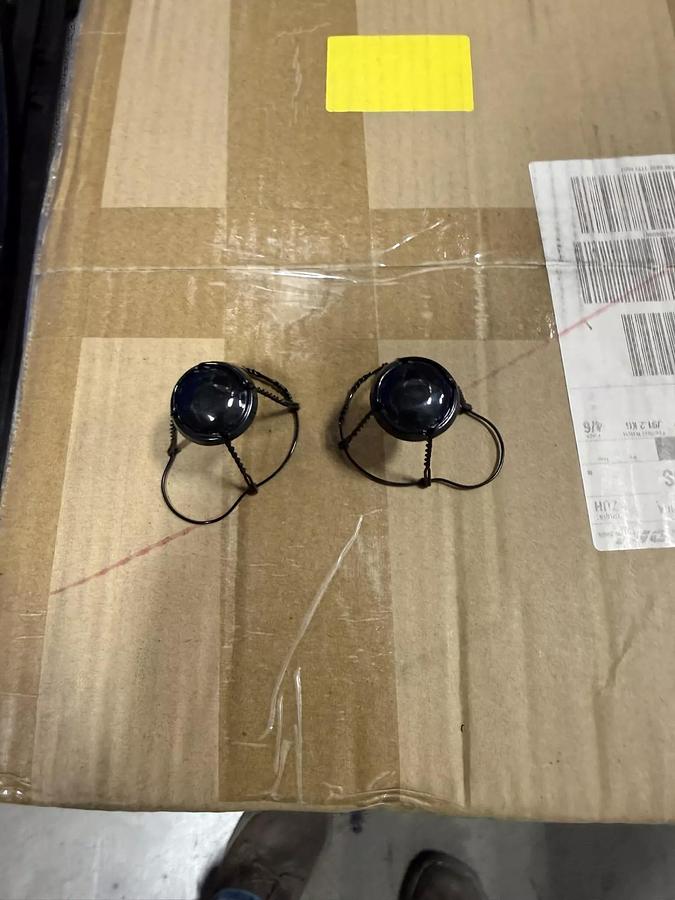

- Single Head Wire Hooder presently set for 4-post wire hoods

- Right to Left Container Flow

- Factory rated up to 3000 bottles per hour

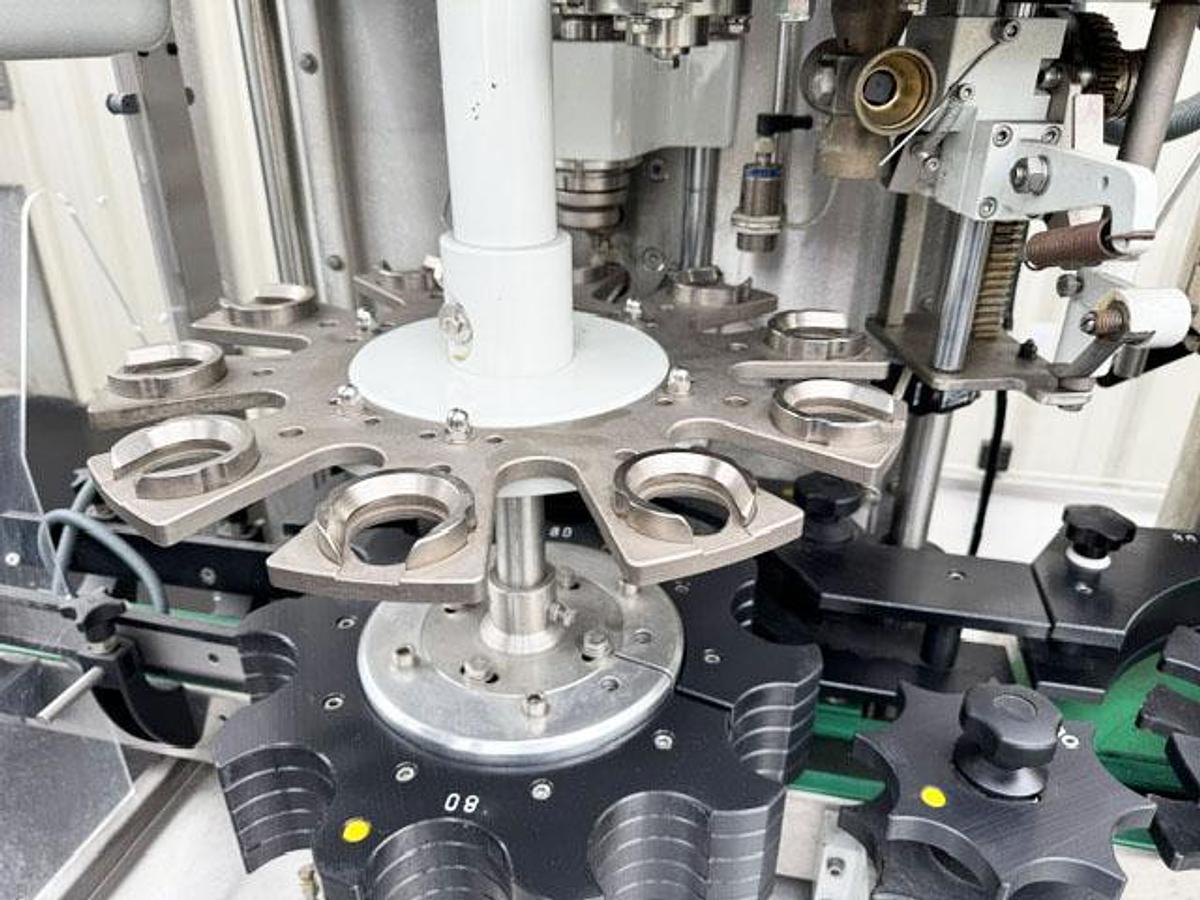

- Includes existing bottle handling change parts for round 750ml wine style bottle

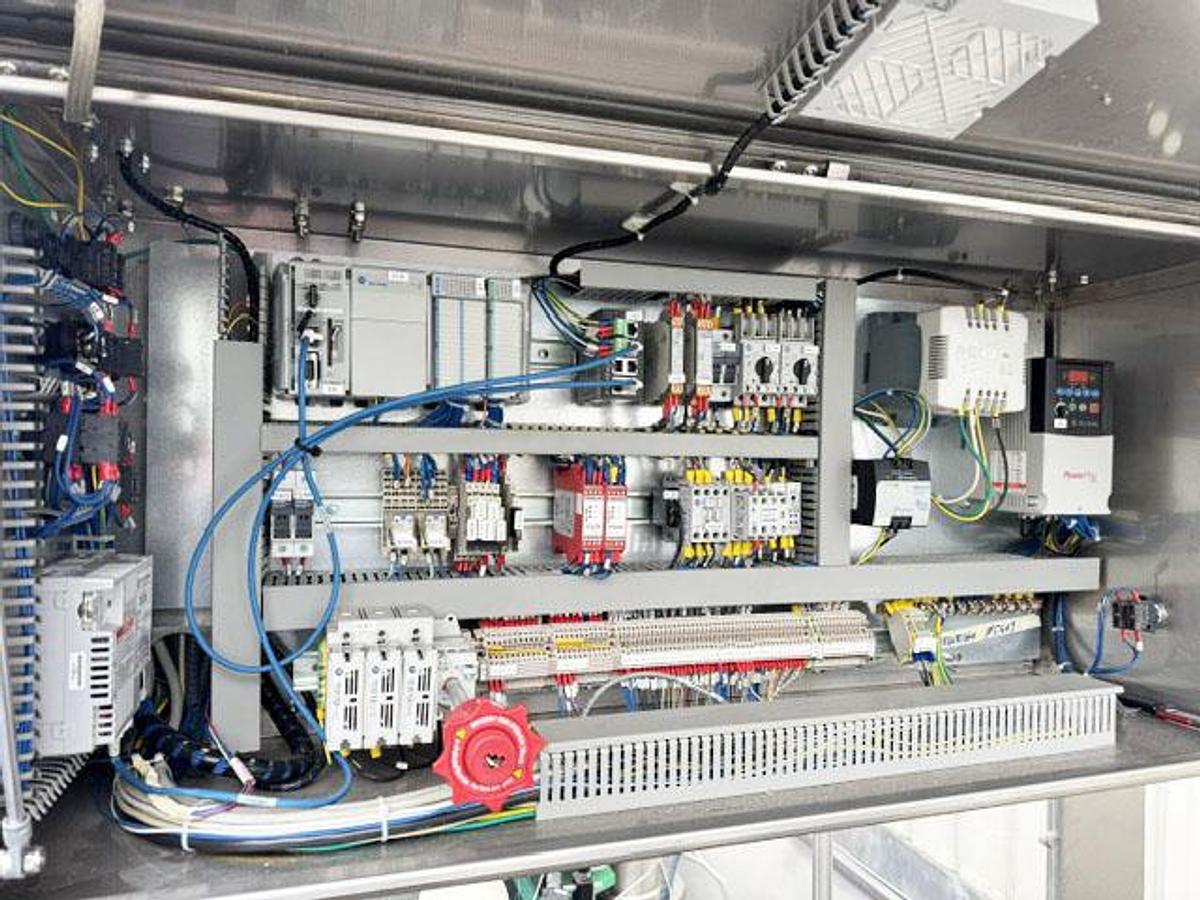

- Allen Bradley MicroLogix Controller

- Allen Bradley PanelView Plus 600 Interface

- Allen Bradley PowerFlex Variable Speed Drive

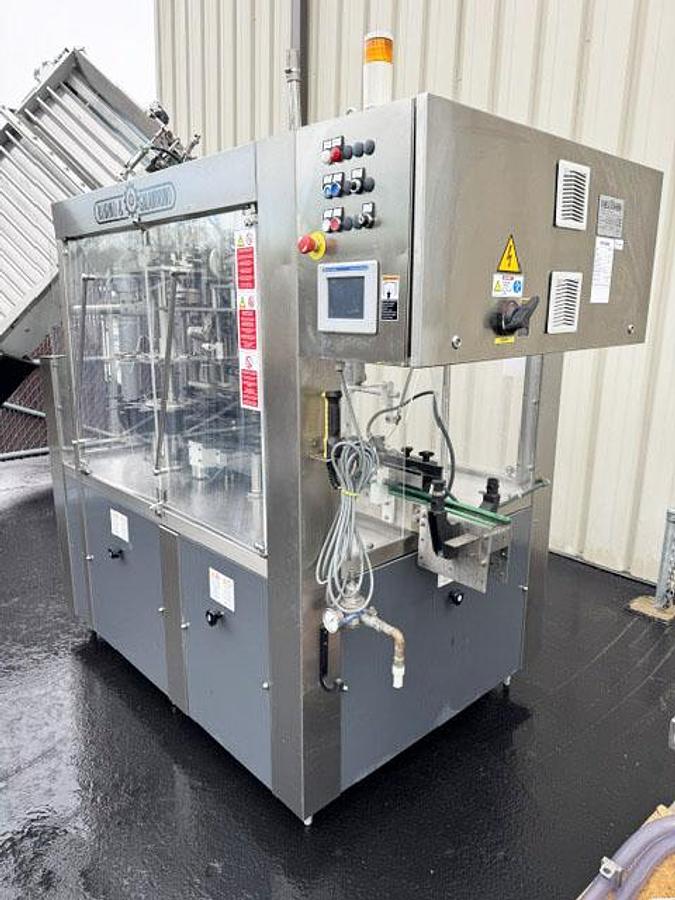

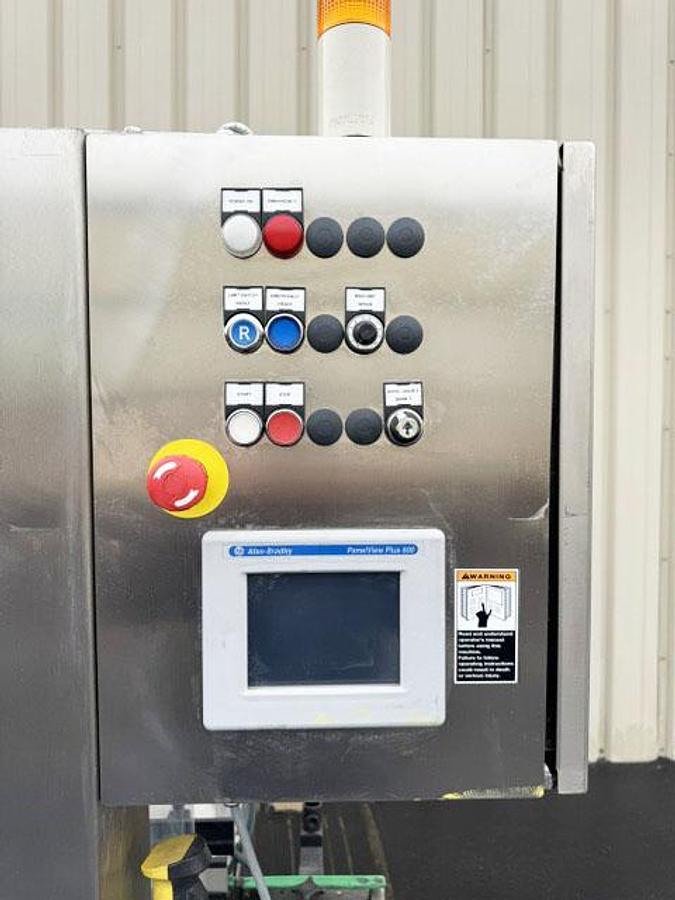

- Operator Controls with E-Stop

- Electrical 460 Volt, 3 Ph, 60 Hz, 15A,

- Threaded Leveler Legs

- Includes Manuals & Schematics

- Condition: Used

- (Corker-Hooder) Dimensions 115” L x 80” W x 106” H @ 4000 lbs.

- (Cork Hooper-Sorter) Dimensions 24” L x 24” W x 54” H @ 200 lbs.
