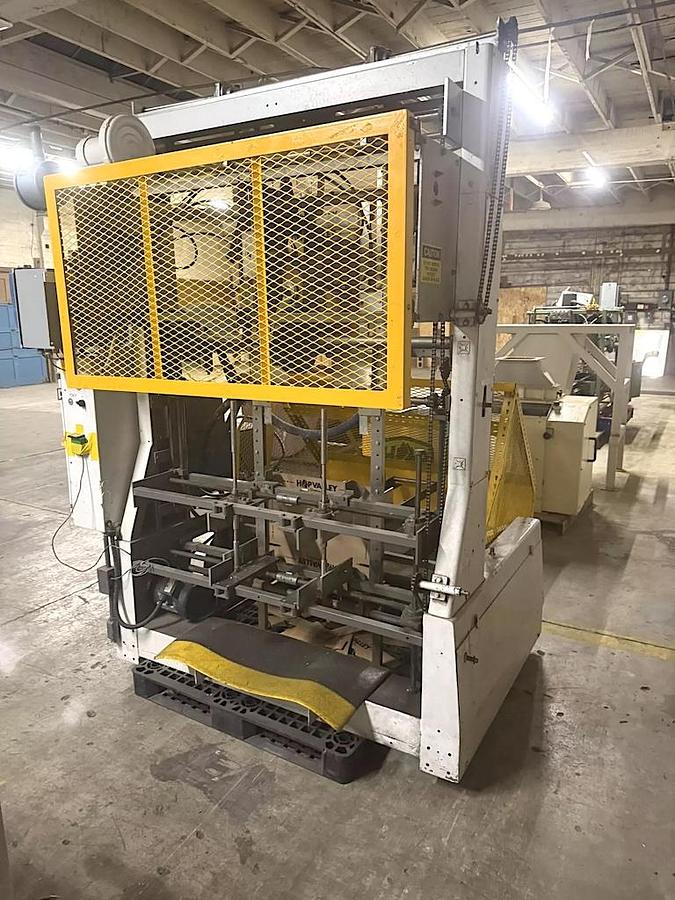

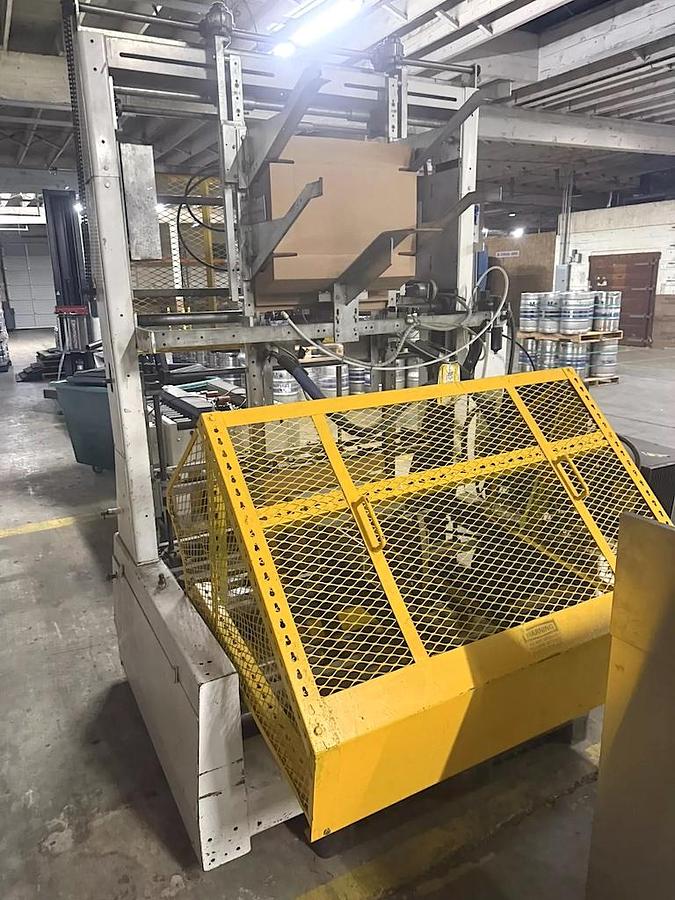

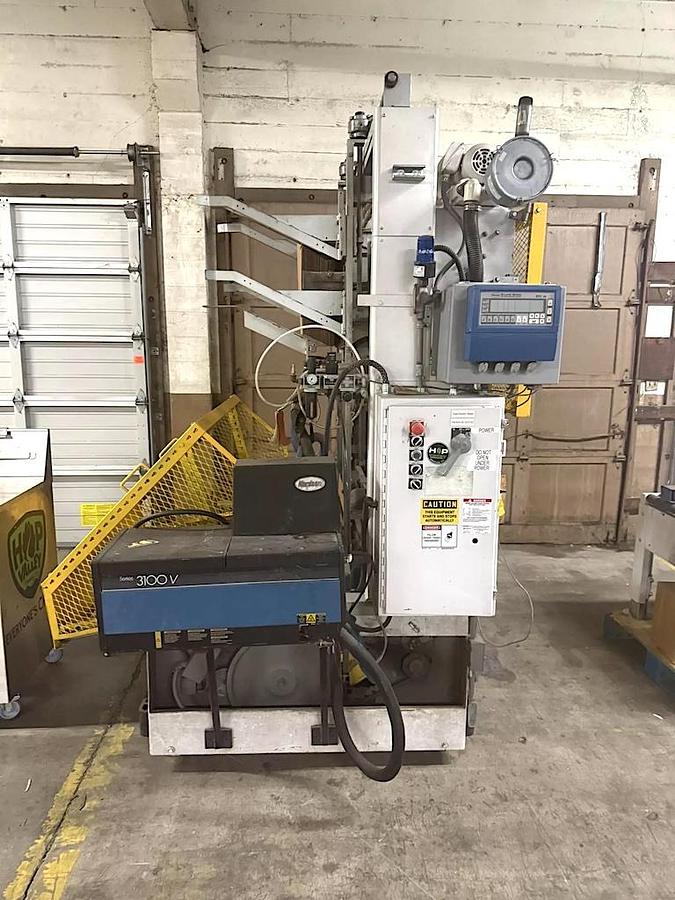

SWF Automatic Tray Former - Tray Erector 1T6K with Nordson 3100 Glue System

SWF 1T6 Tray Former Erector with Nordson 3100 Glue System

The SWF - Thiele Technologies (part of Barry-Wehmiller) Tray Former has long been recognized as the workhorse of the poultry- and proteins-packaging industry. The SWF 1T6 Tray Former offers customers unsurpassed efficiency for high speed applications. The compact footprint is ideal for box rooms, and the machine’s portability gives customers the flexibility to change settings based on their needs.

Details:

Manufacturer: SWF Thiele / BW Packaging

Model 1T6K Tray-Matic

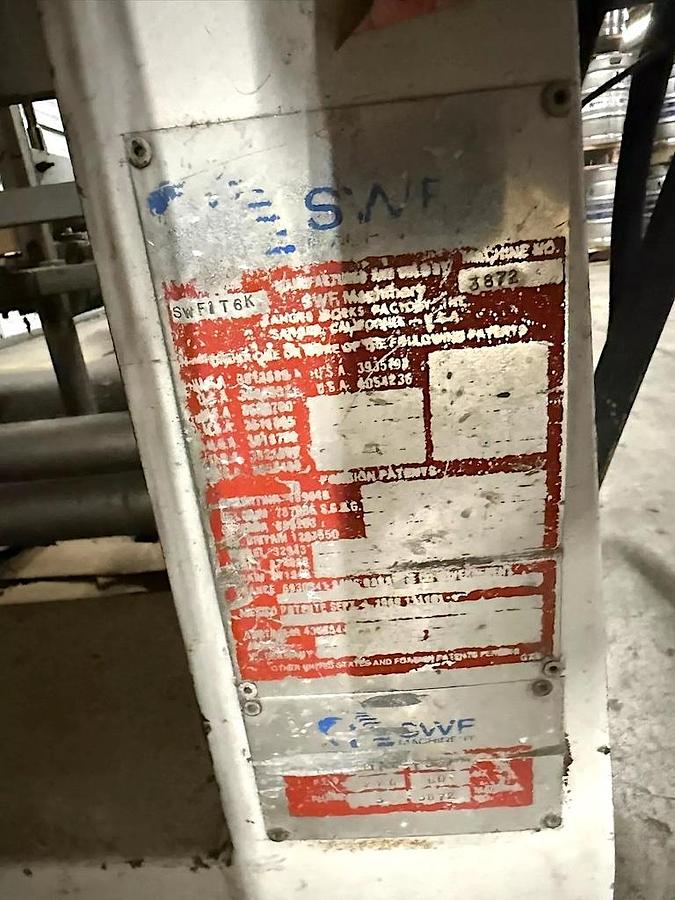

Serial #3872

Designed for one piece solid bottom corrugated trays

Vacuum Blank Feed System with Vacuum Pump

Existing Mandrel for beer trays

Nordson 3500 Hot Glue System with Eclipse Pattern Control

Kwik-Change / Quick Size Change option “K”

Standard Machine Safety Guarding

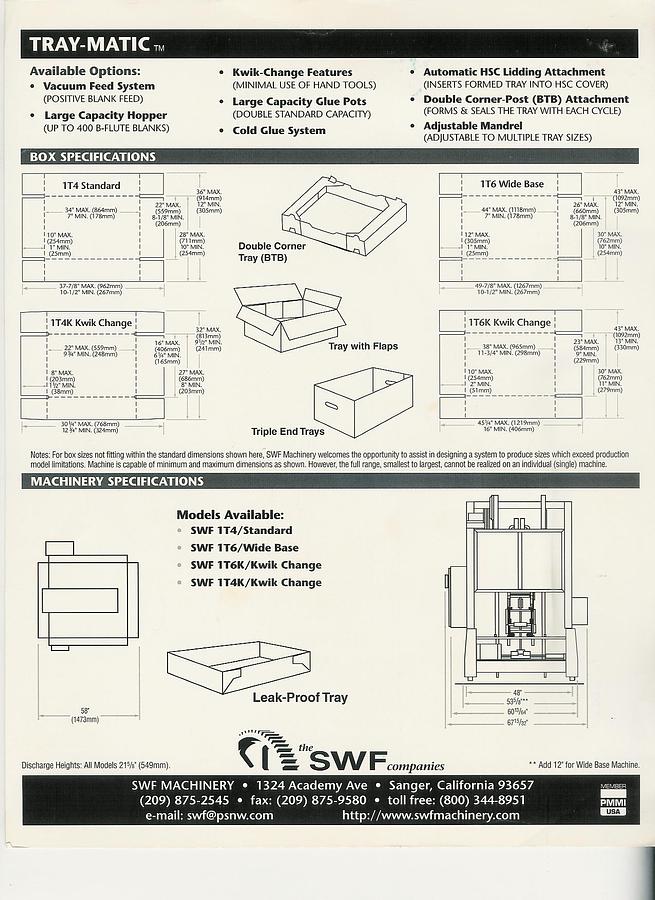

Blank Tray size range: 10-1/’2" to 49-7/8" in Length; 12" to 43" in Width

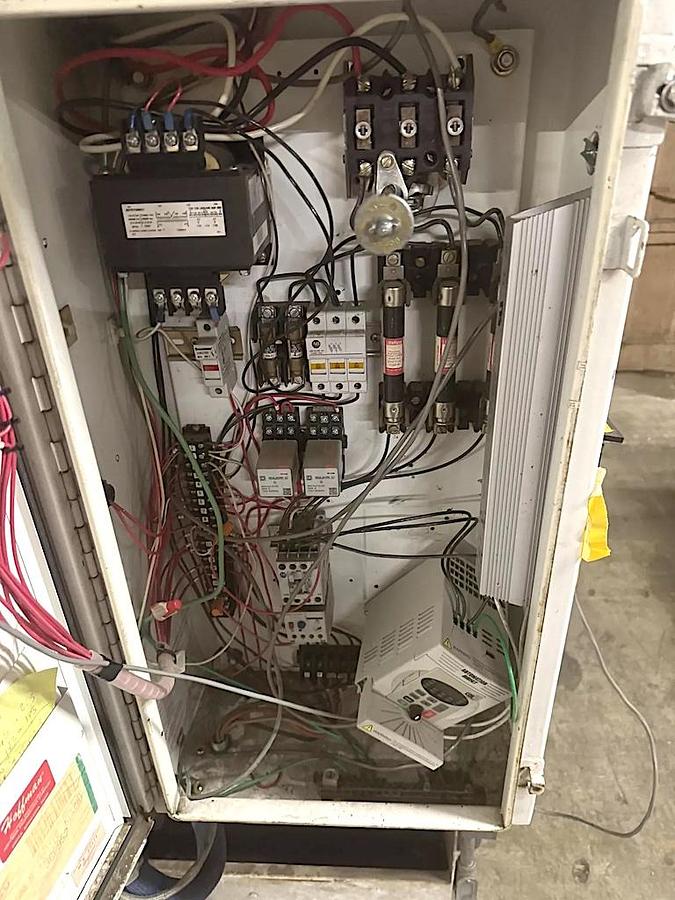

Electrical 440 Volt / 60 HZ. / 3 Phase / 11.9 Amps

Nordson Electrical 480v-3ph-60hz

Approximate Dimensions (overall): 84″W x 60″L x 101″H

Condition: Used
