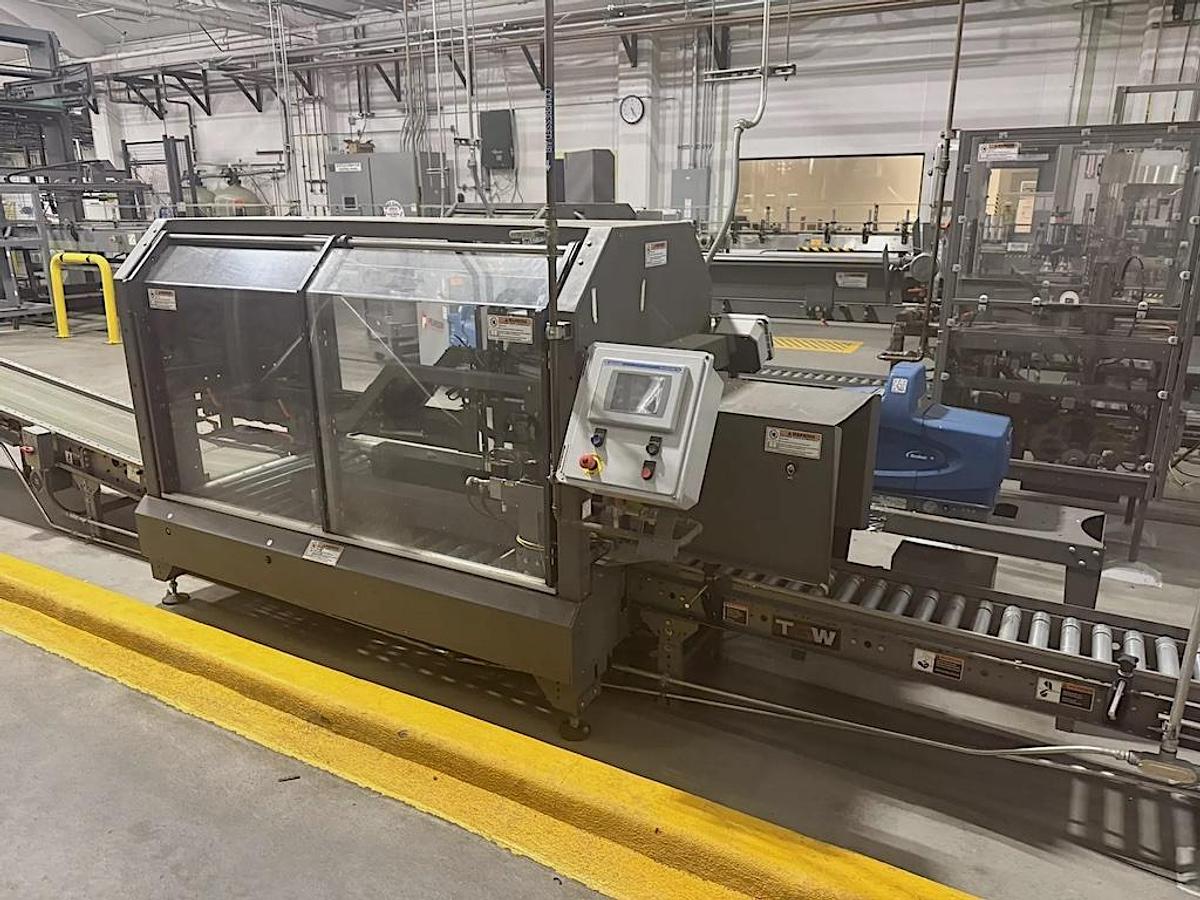

Pearson Packaging Case Sealer - Top Gluer model CS25 with Nordson Hot Glue

Pearson Packaging Case Sealer - Top Gluer model CS25 with Nordson Hot Glue

used Pearson Model CS25 Hot Melt Case Sealers are designed to accommodate a wide range of box styles and sizes for production rates spanning from low to high-speed. With a rugged design, these automatic box closers offer reliable operation in 24/7 high-volume manufacturing and distribution environments. To support an often high-turnover labor force, a uniform and intuitive user interface (HMI) for easy operation and maintenance is standard across the portfolio.

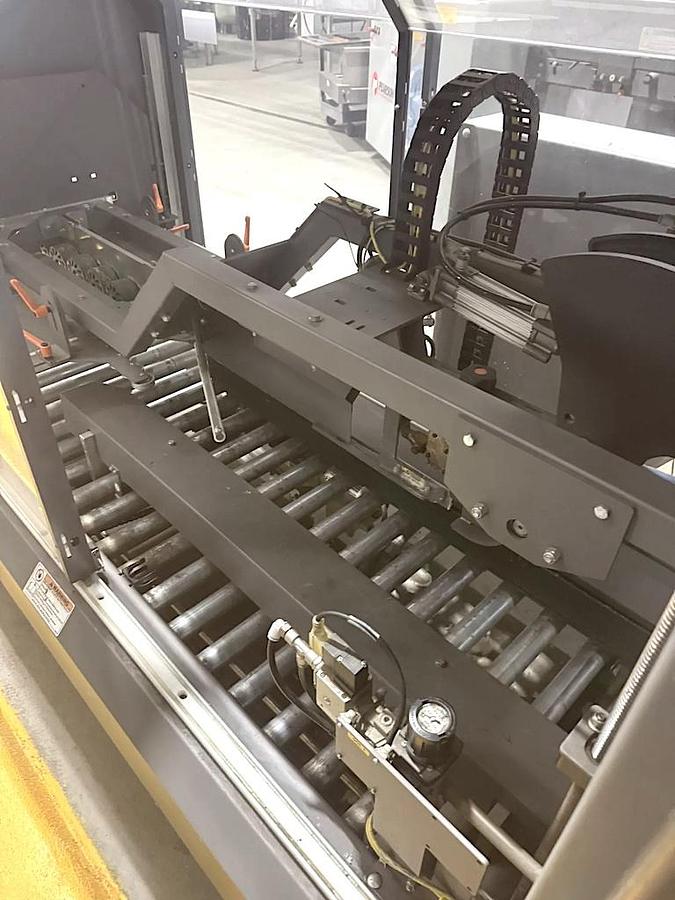

The CS25 Case Sealer is an all-purpose machine for almost any application requiring speeds up to 42cpm. A convenient bypass option eliminates the need for additional conveying when pre-sealed boxes or HSCs are introduced into the line. To ensure consistent sealing of the box, spring loaded synchronous compensating side belts and squaring wheels ensure cases remain square throughout the closing and sealing process.

Details:

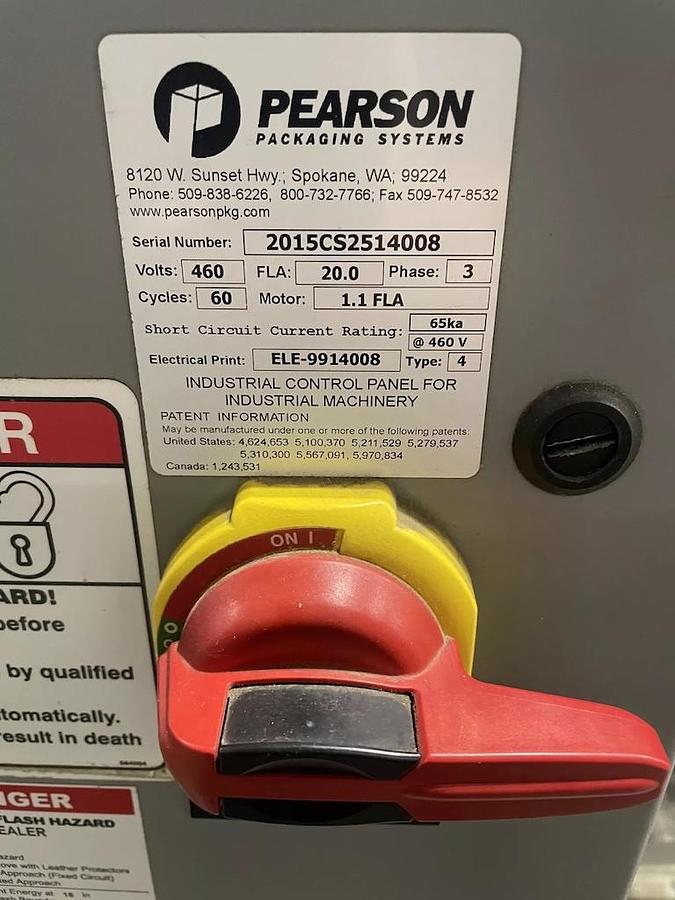

Manufacturer is Pearson Packaging Systems - Spokane, WA

Model CS 25

Serial # 2015CS2514008

Manufactured year 2015

Case Support RSC, FOL, CSSC

Electrical 460V / 3ph / 60Hz, FLA 20.0

Controls are AB CompactLogix with AB PanelView

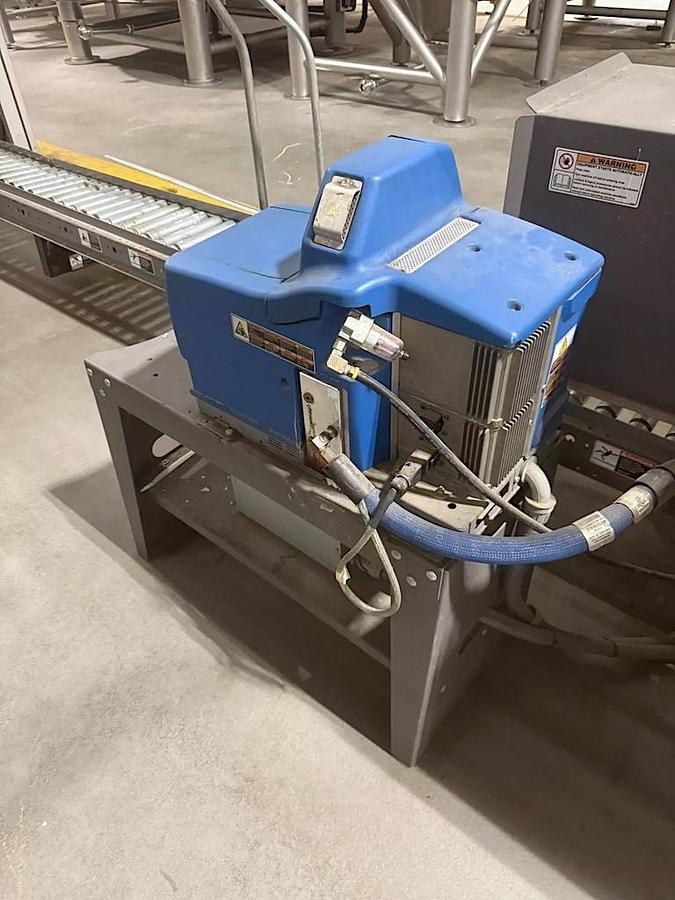

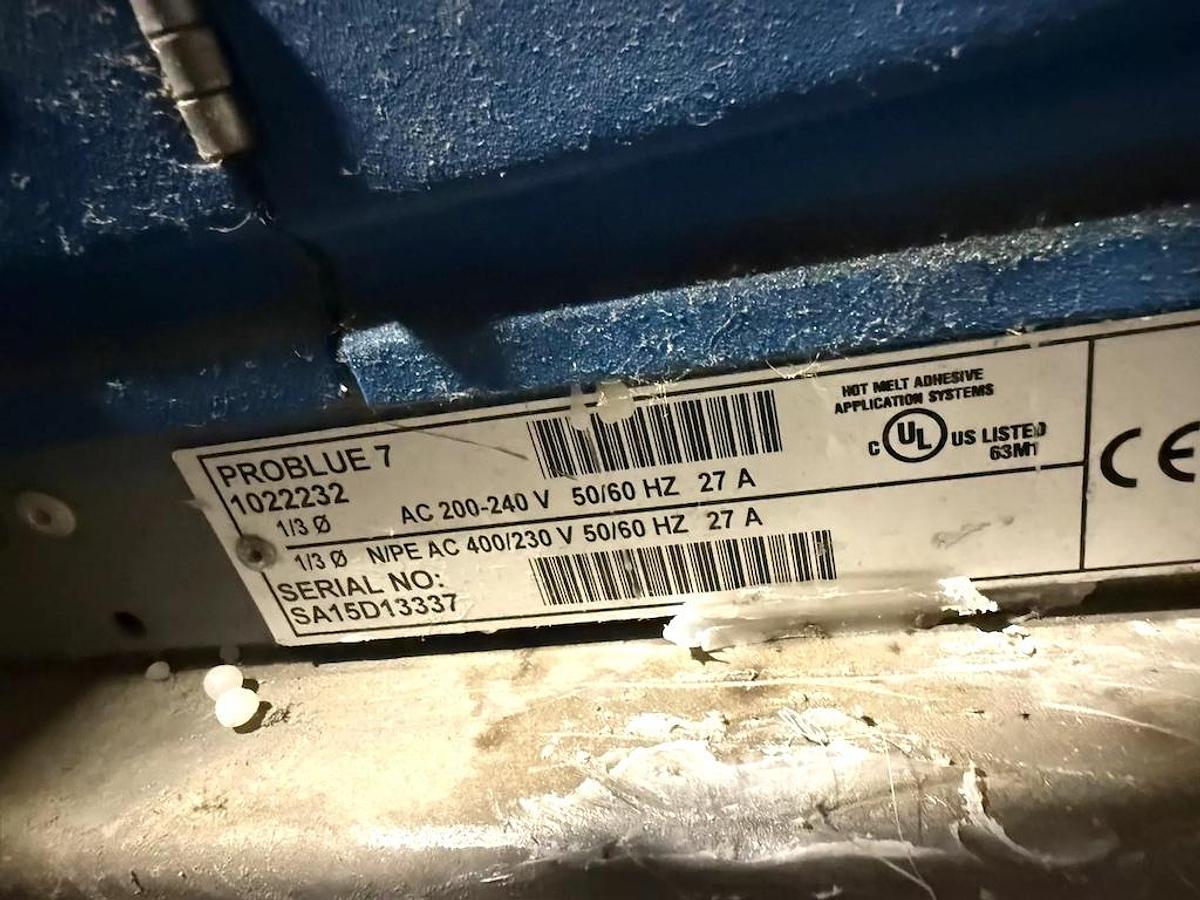

Closure Nordson Pro Blue 7 Glue Unit

Min. Case Sizes 8" (L) x 5" (W) x 4.75" (H)

Max. Case Sizes 24" (L) x 16" (W) x 18.50" (H)

Size Change: Mechanical and Power driven adjustments throughout.

Servo driven rear flap folder

Approx. Machine Size 11 (L) x 5 (W) x 5 (H)

Used condition - Good
