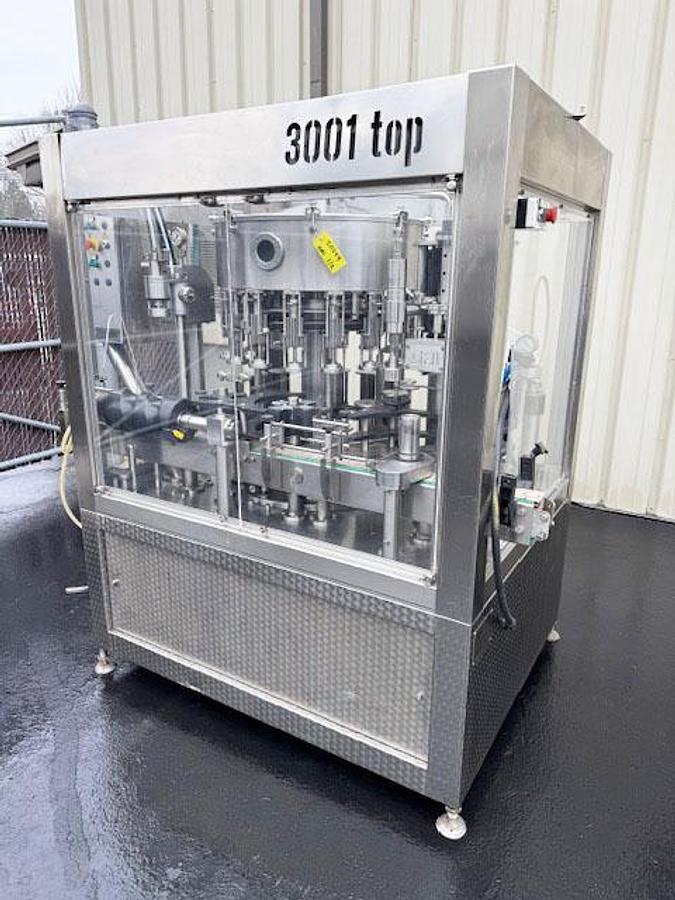

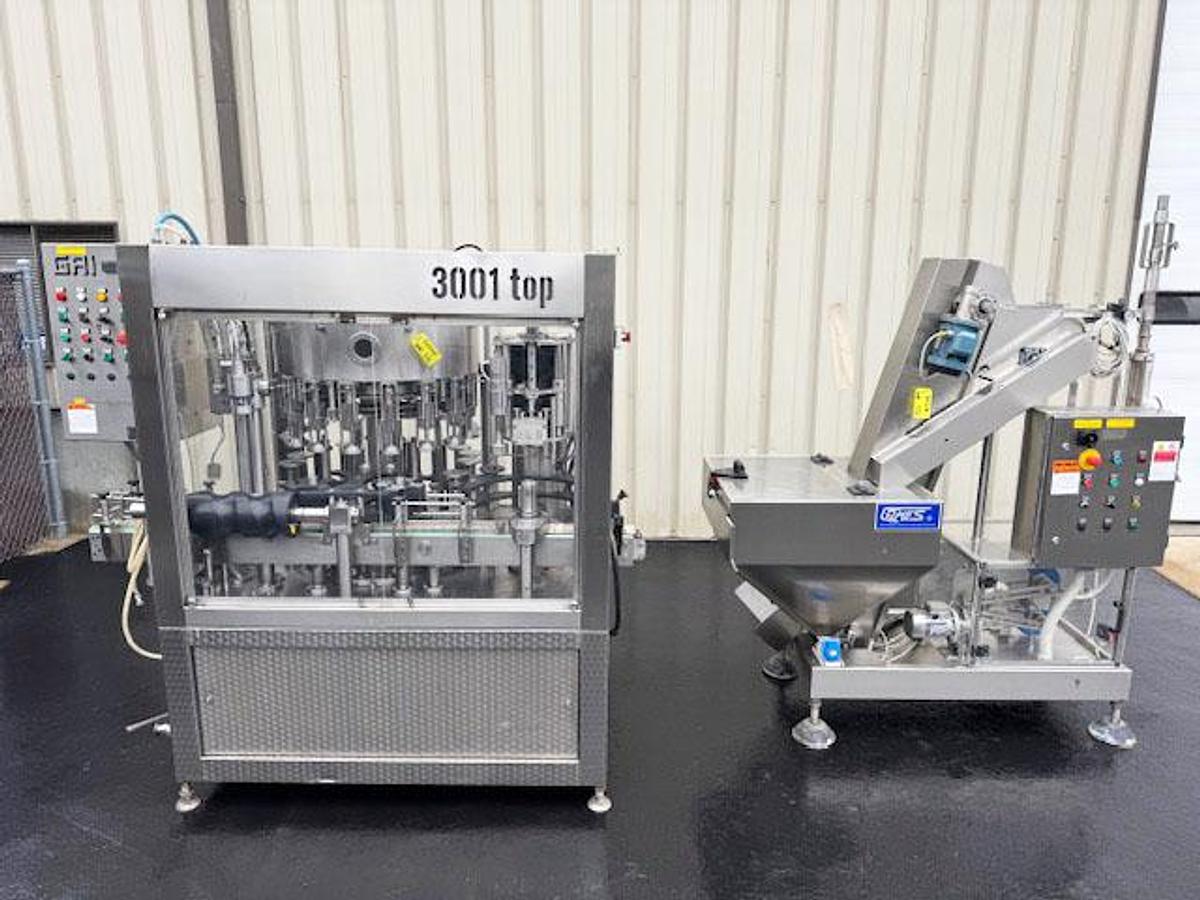

GAI 16-Valve Triblock Bottle Sparger, Filler & Corker with Cork Feed System

Details:

- 1/16/1 Bottle Sparger-Filler-Corker

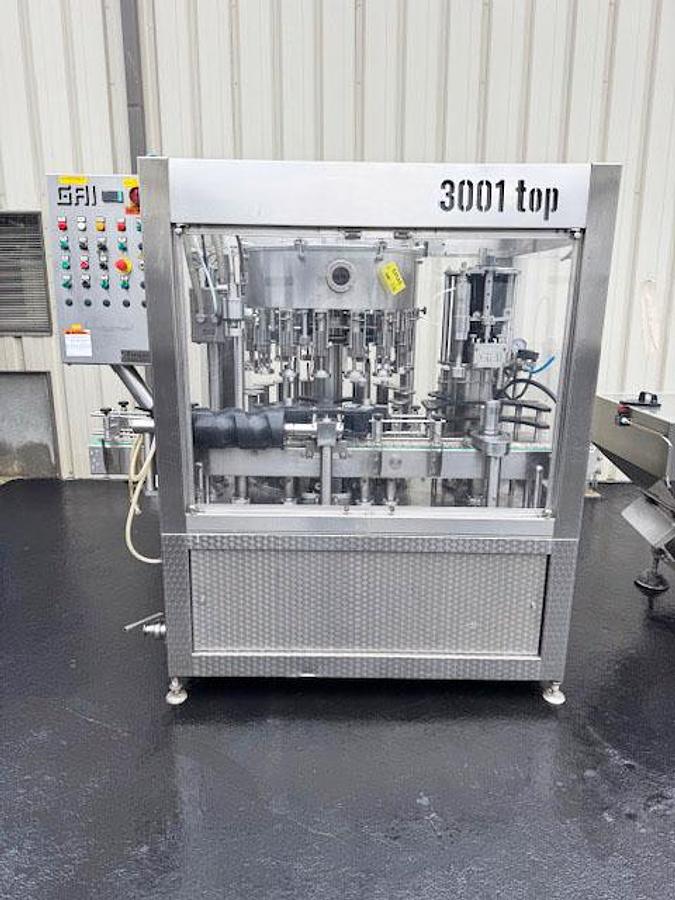

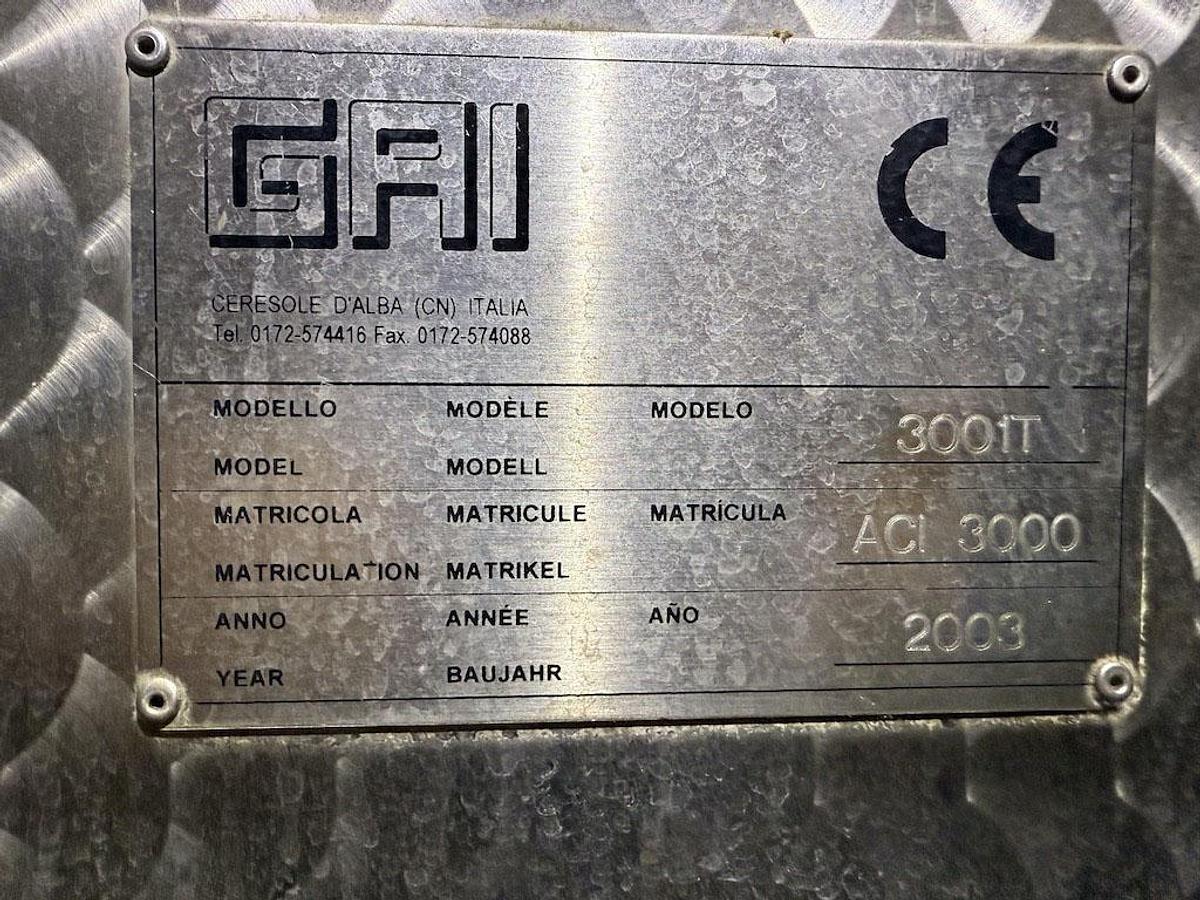

- Model Number 3001 TOP

- Serial Number ACI 3000

- Last filling wine into 750ml glass bottles

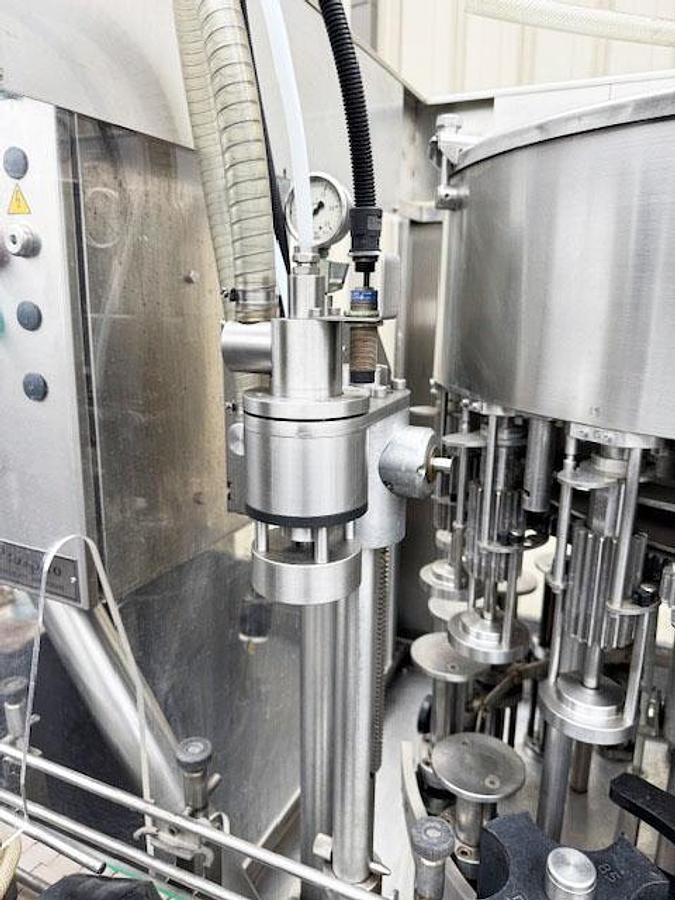

- 1-Head Sparger (vacuum takes approx. 90% of air out of bottle and fills with neutral gas such as CO2 or Nitrogen)

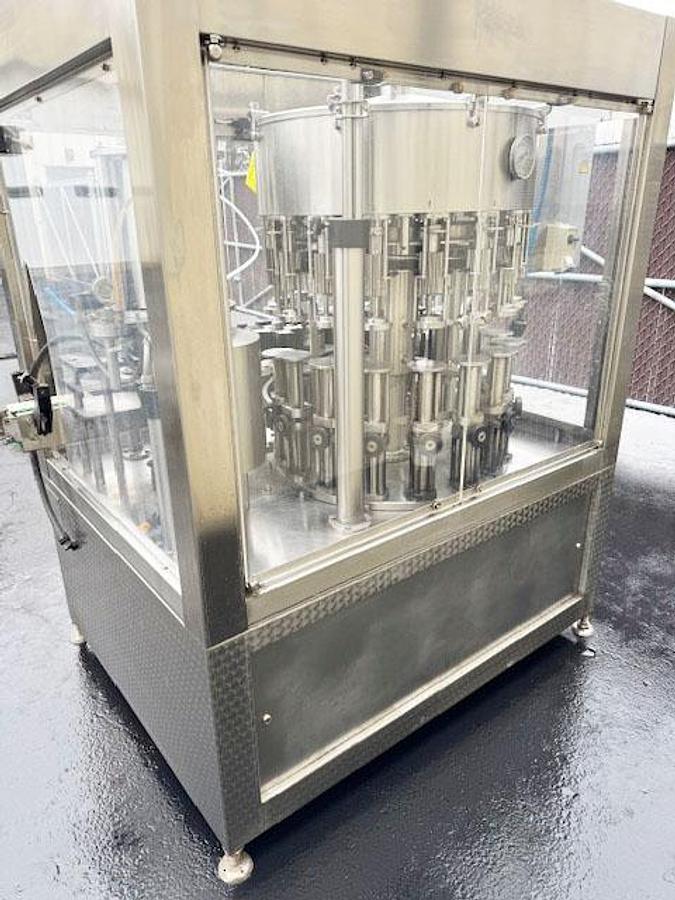

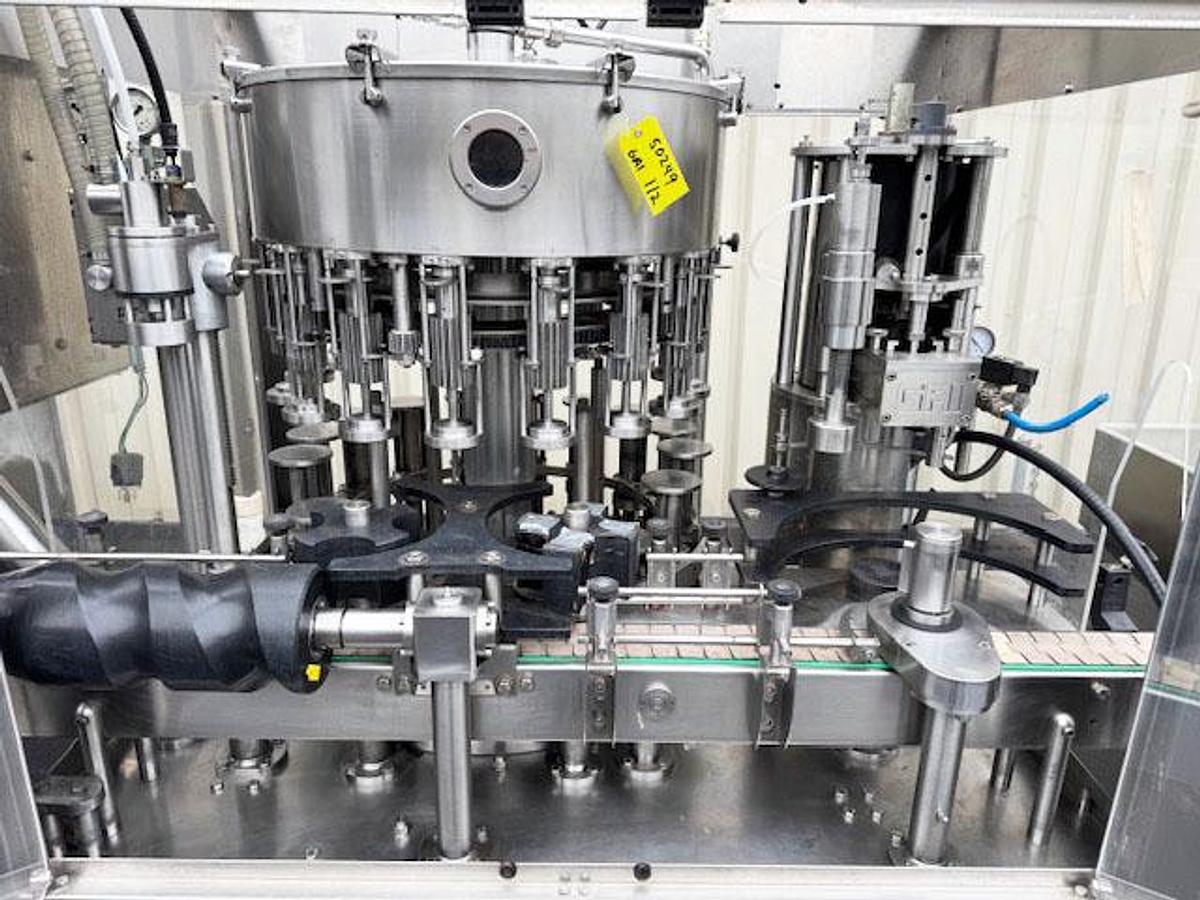

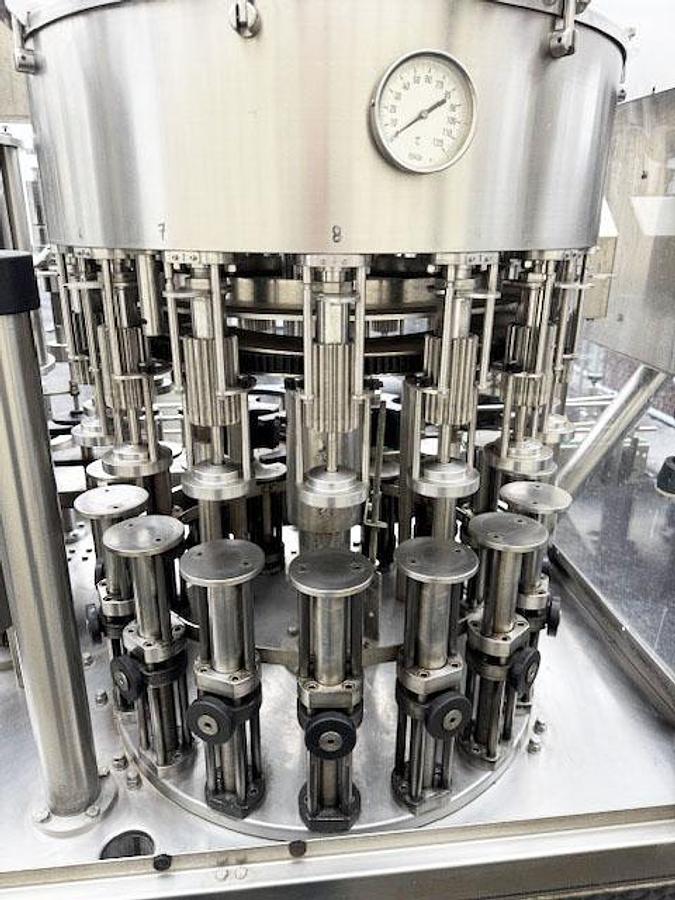

- 16-Valve Gravity Rotary Filler with 5.75” Valve Pitch

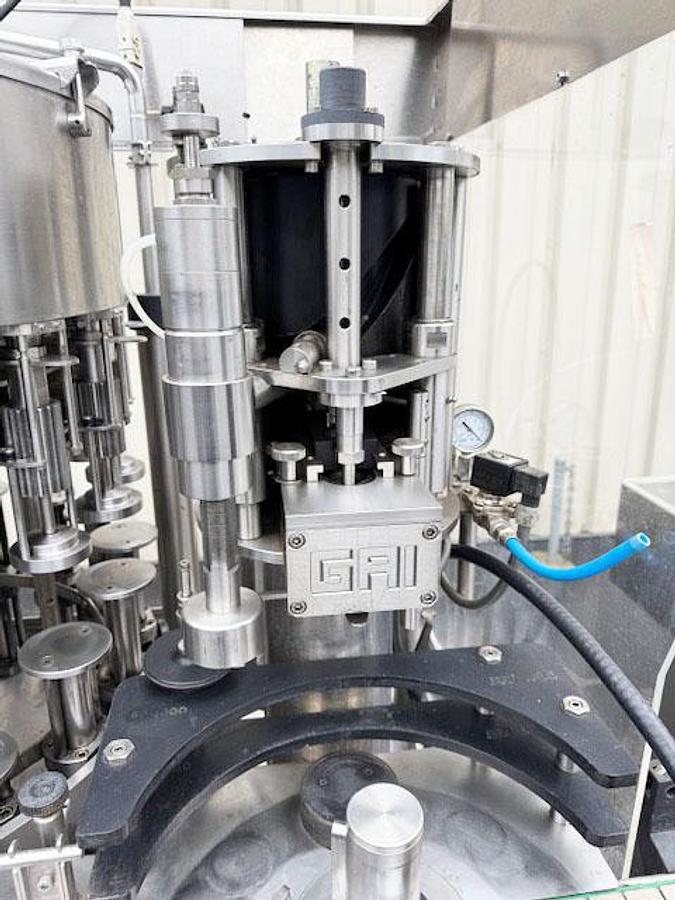

- 1-Head Corker presently set for straight wine corks

- Factory Rated up to 3000 BPH

- Left to Right (Clockwise) Operation

- Stainless Steel Construction

- Includes (1) Set Existing Bottle Handling Parts for 750ml Round Glass with Timing Screw

- Includes Cames Cork Feed System, Model ALX 1

- 3.25” Wide x 80” L Pull Through Conveyor Section

- Conveyor Elevation 40” (adjustable)

- 3.25” Wide Plastic Tab Conveyor Chain-Belt

- (4) Threaded Floor Levelers (Filler)

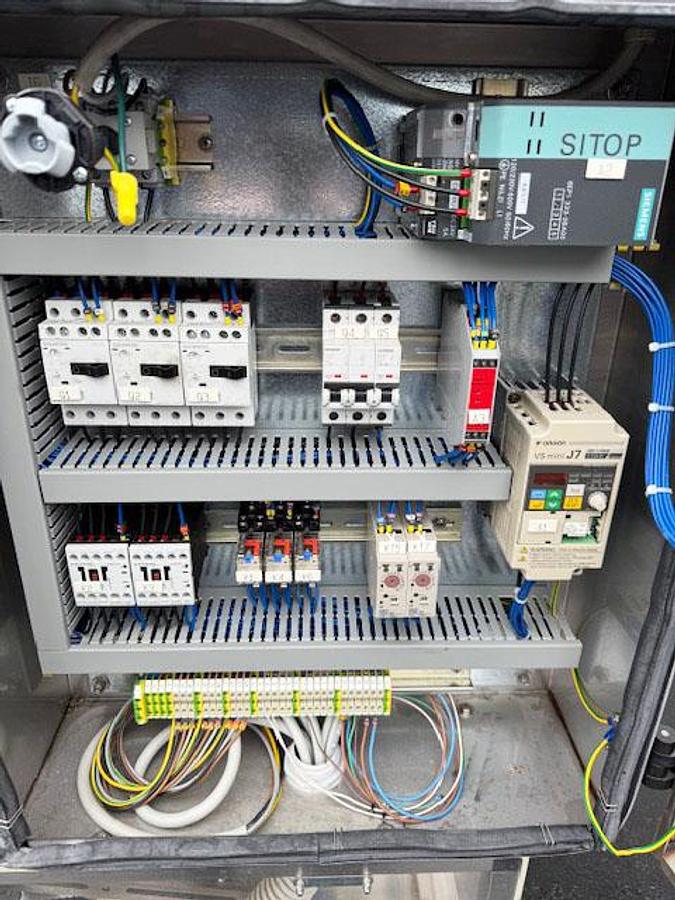

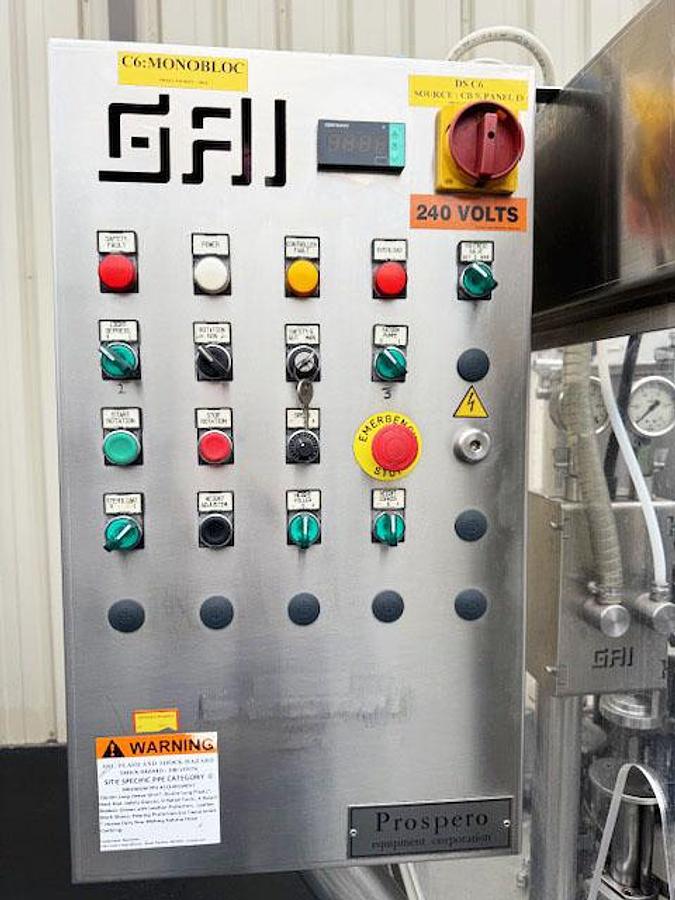

- Operator Panel with E-Stop

- Electronic Filler Bowl Height Adjustment

- Electrical 240 Volt, 3 Ph, 60 Hz, 21 Amps, (Filler)

- Dimensions 80” L x 49” W x 80” H (Filler)

....... Includes;

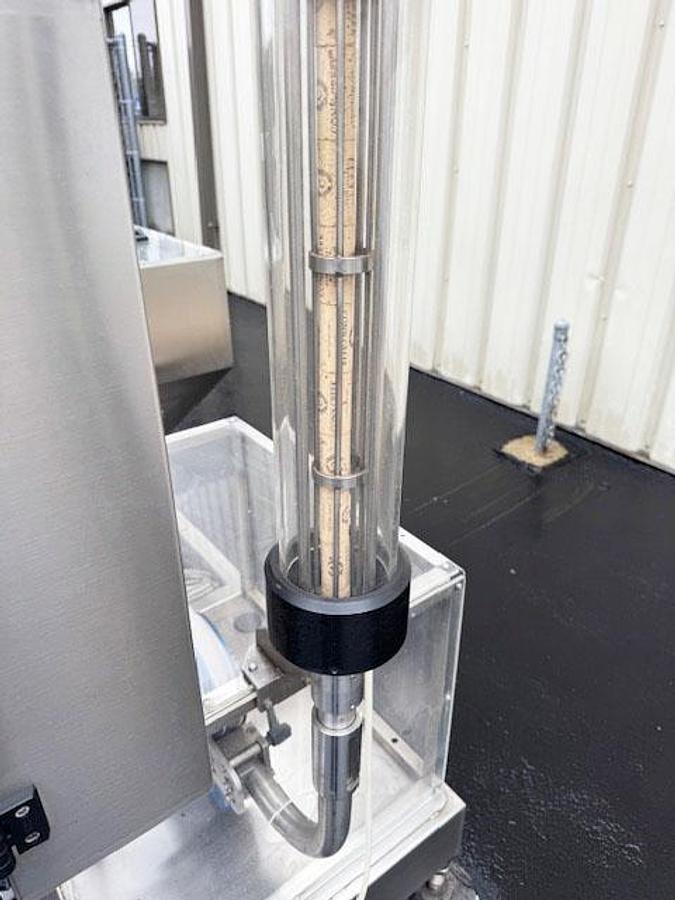

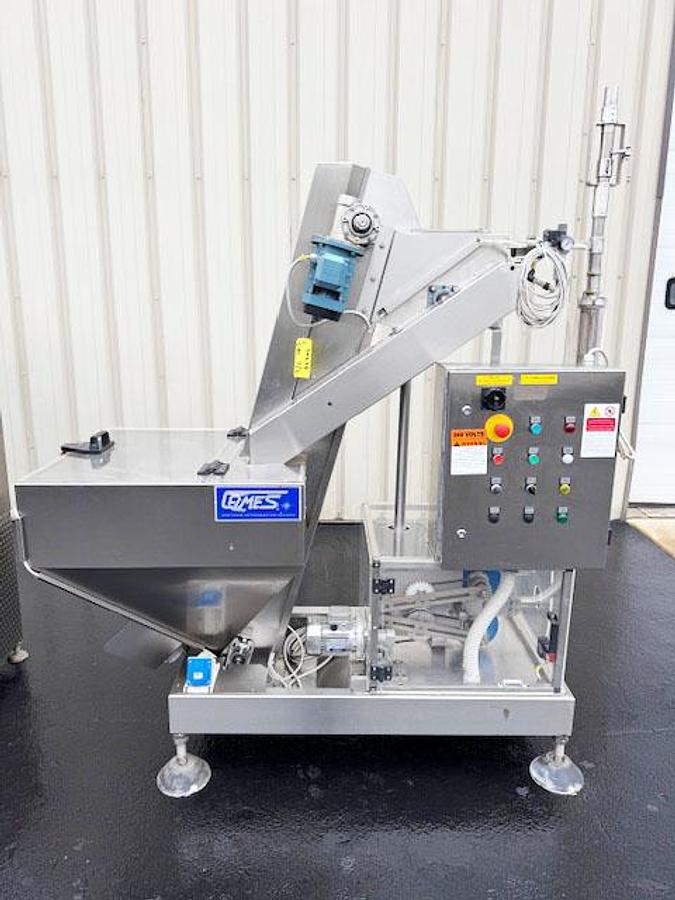

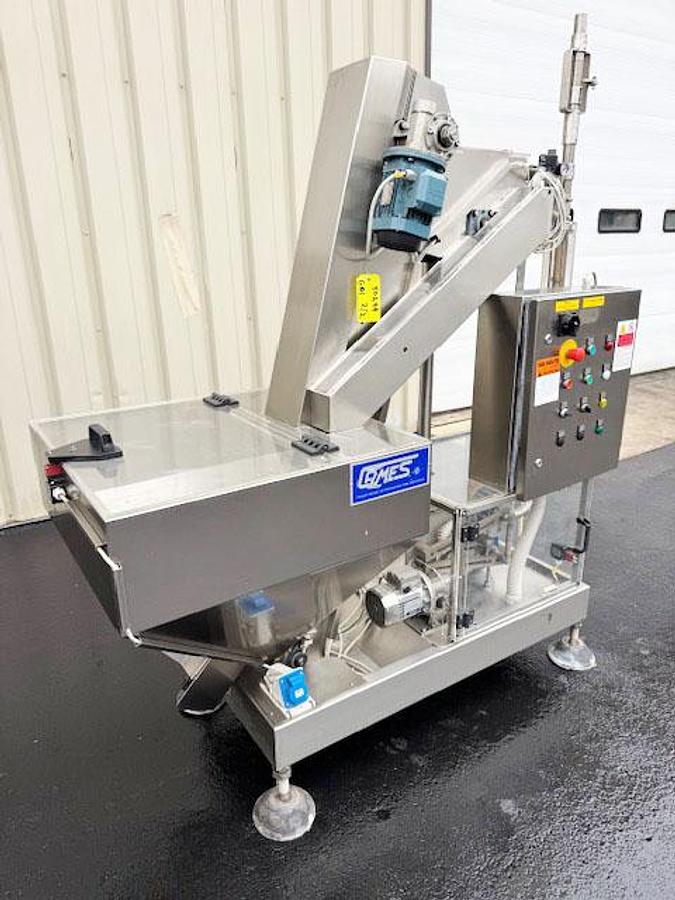

CAMES Cork Orientor Feed System

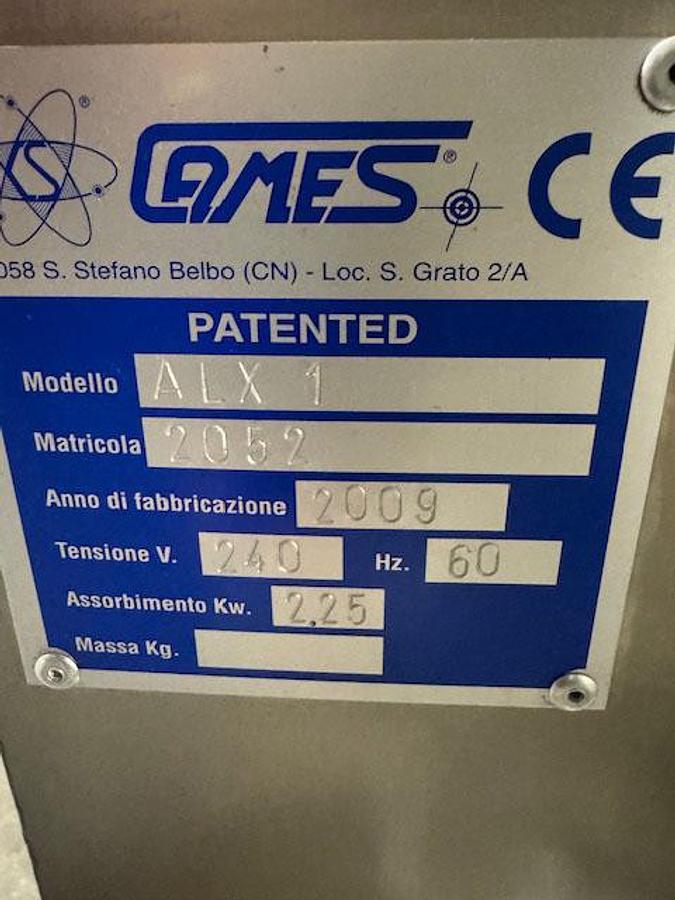

- Manufacturer: Cames Wine Industry Machines, Canelli Italy

- Model ALX 1

- Serial Number 2052

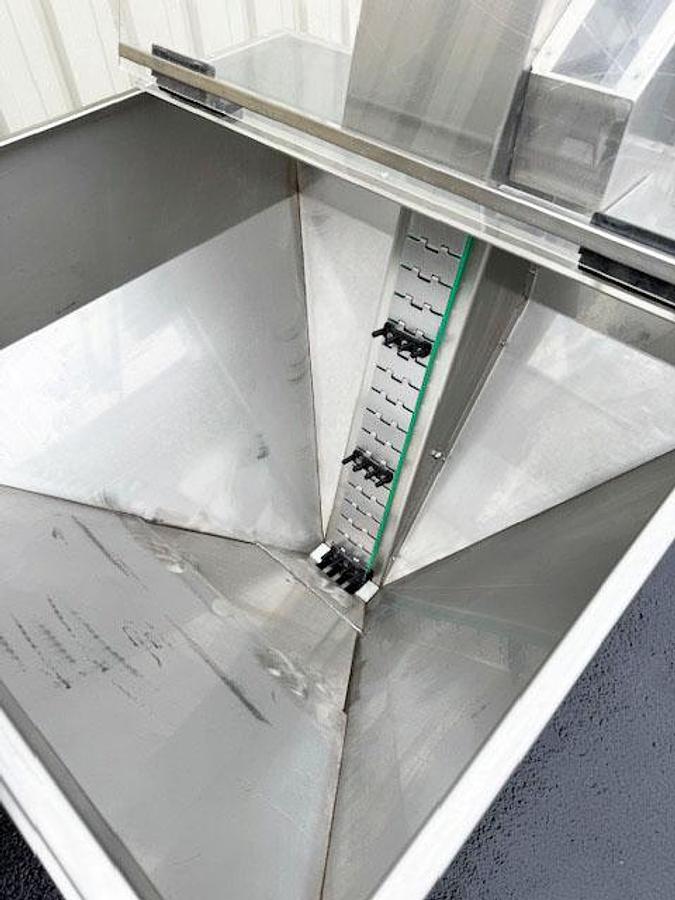

- (approx.) 10 Cubic Foot Stainless Steel Cork Hopper

- Hopper ID 31” L x 31” W x 28” Deep

- (4) Threaded Leveler Legs (Cork Feeder)

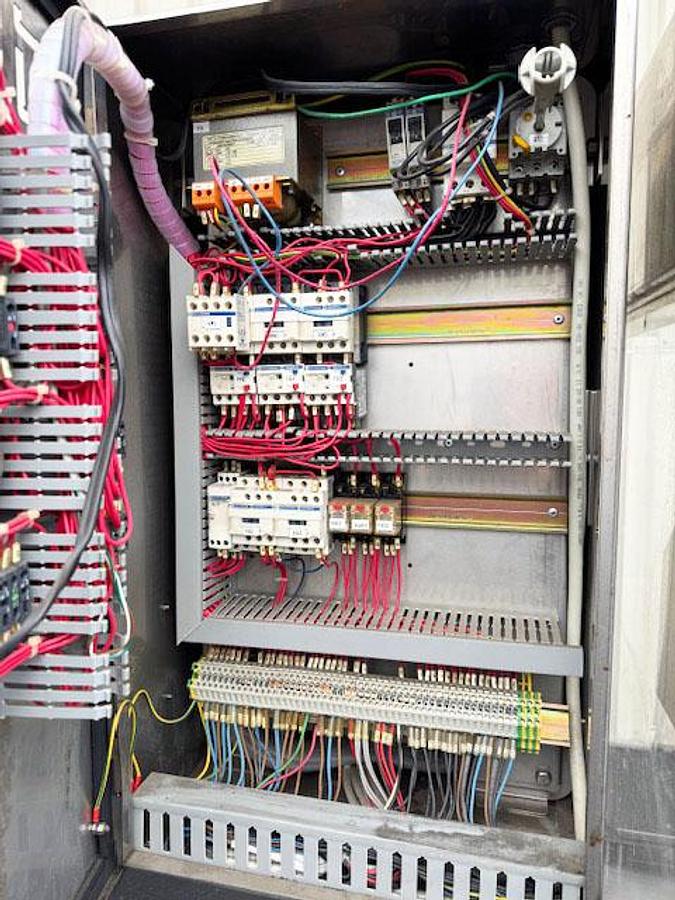

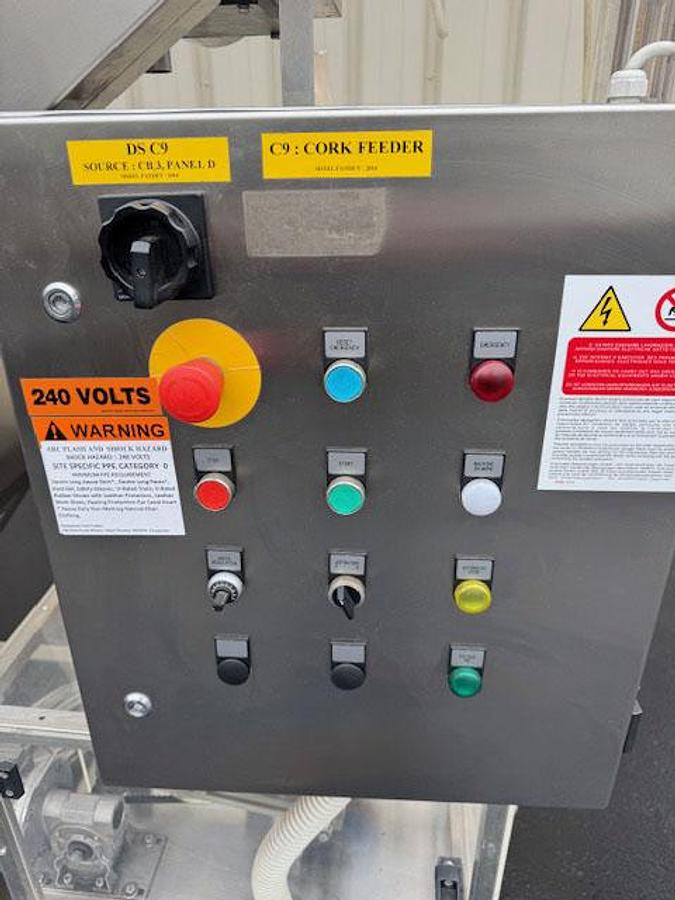

- Operator Panel with E-Stop

- CE Rated

- Electrical 240 Volt, 3 Ph, 60 Hz, (Feeder)

- Dimensions 72” L x 32” W x 86” H (Feeder)

- Condition: Used
