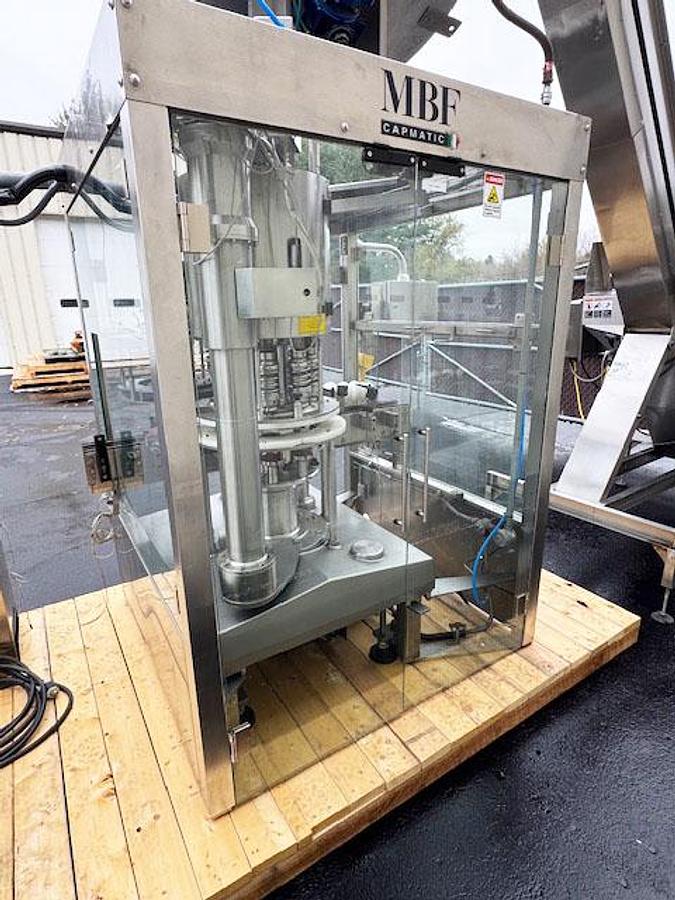

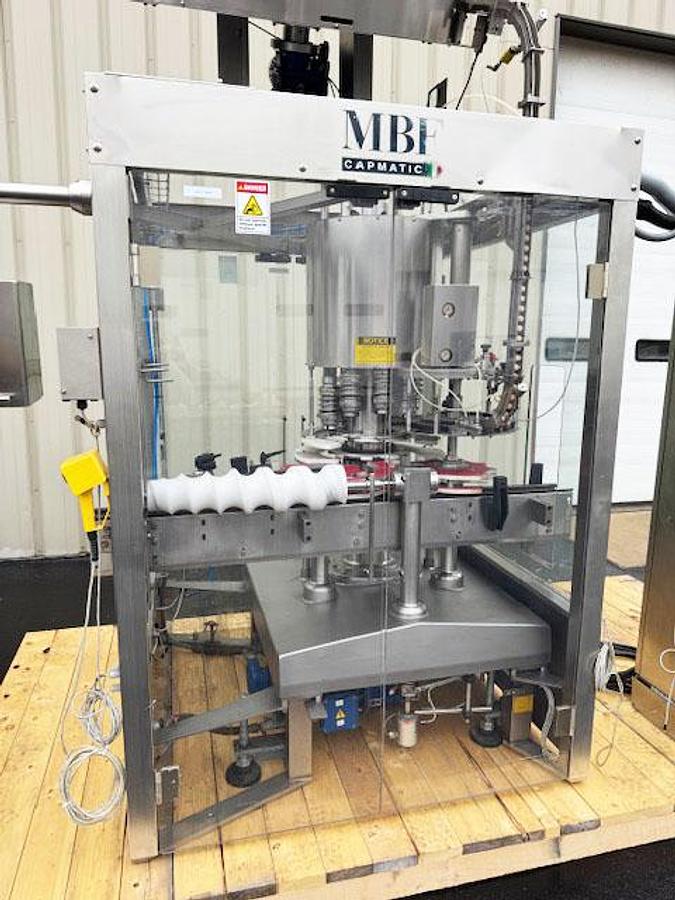

MBF CAPMATIC 9-Head Rotary T-Corker with Hopper Elevator Cork Feeder

MBF CAPMATIC 9-Head Rotary T-Corker with Hopper-Elevator

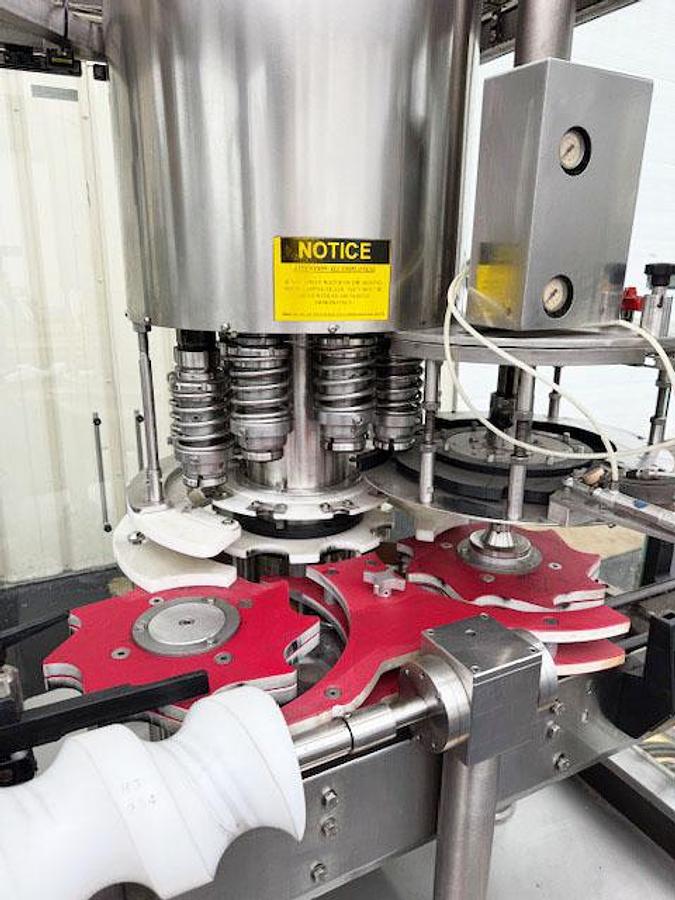

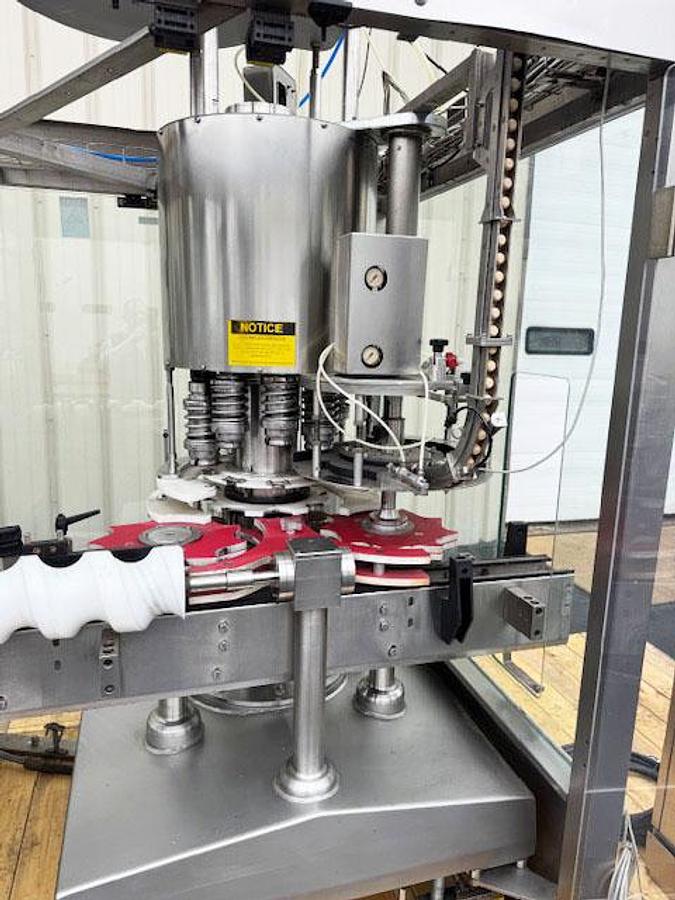

The Corker model 360/9P indicates it has a 360mm diameter central shaft with 9 heads/pitches. P meaning it’s a Pressure/Push capper but was predisposed for head rotation. It is not currently equipped with components for ROPP per last known configuration.

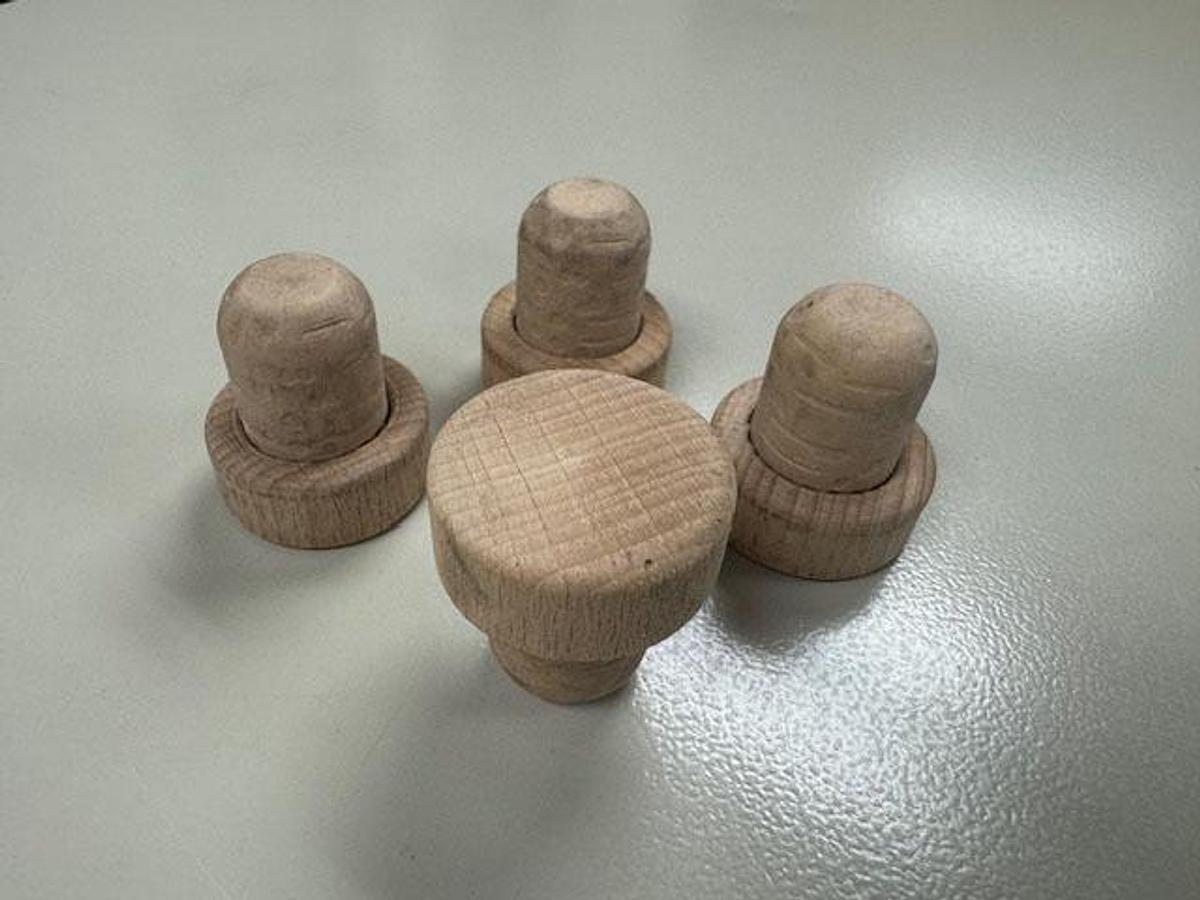

This machine factory equipped to run T-corks BC220044SP and BC220323SP, see attached pdf. It could be easily evaluated to run ROPP, since there is the engage / disengage rotation of capping heads system. For WAK, even if cap has the option to regulate speed of capping heads, is the older system (year 2006) and in any case would be necessary to replace the cam and maybe the cam sleeves. Must be analyzed by the technical department singularly for each new request.

Details:

- Model CAPMATIC 360/9P

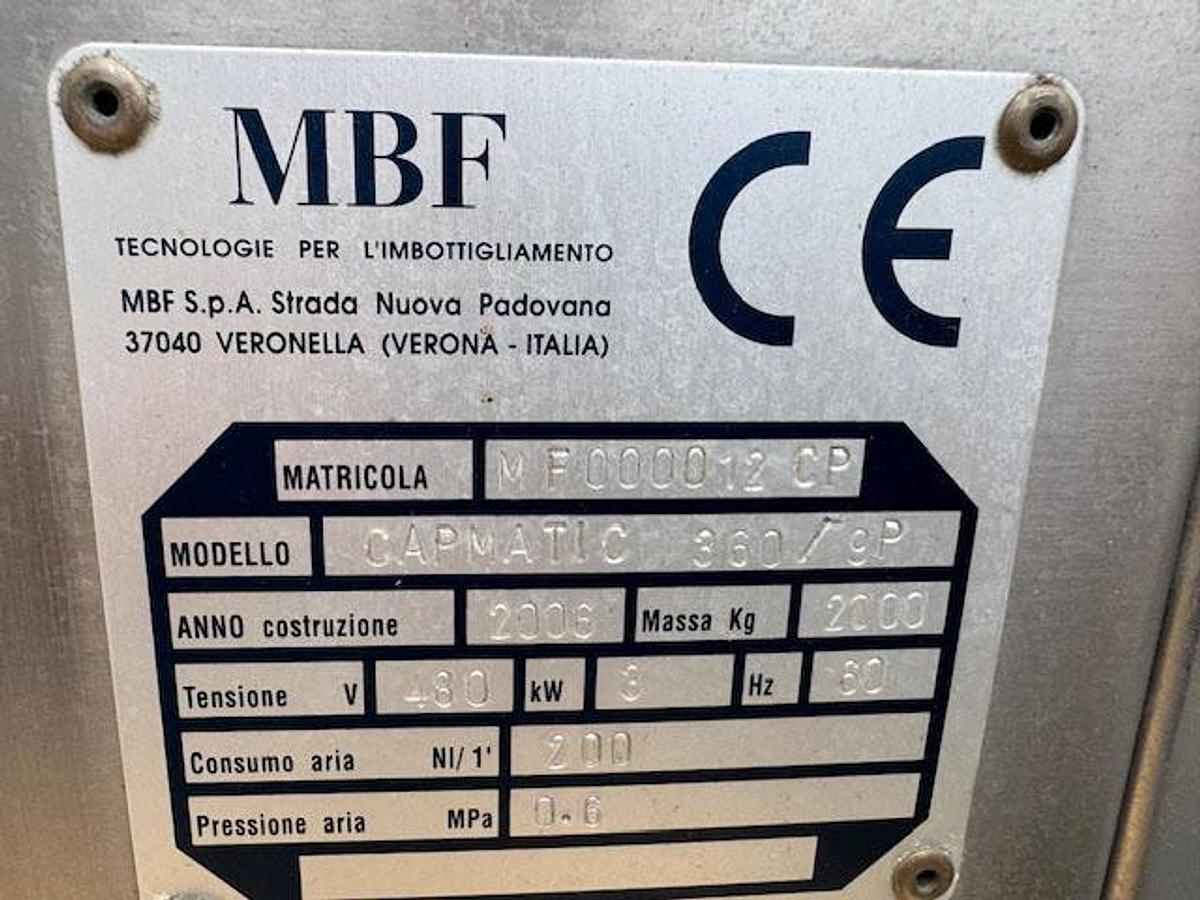

- Serial MF 000012 CP

- Manufacturer: MBF North America (a PROMACH Brand)

- Date manufactured 2006

- Left to Right (Clockwise) Operation

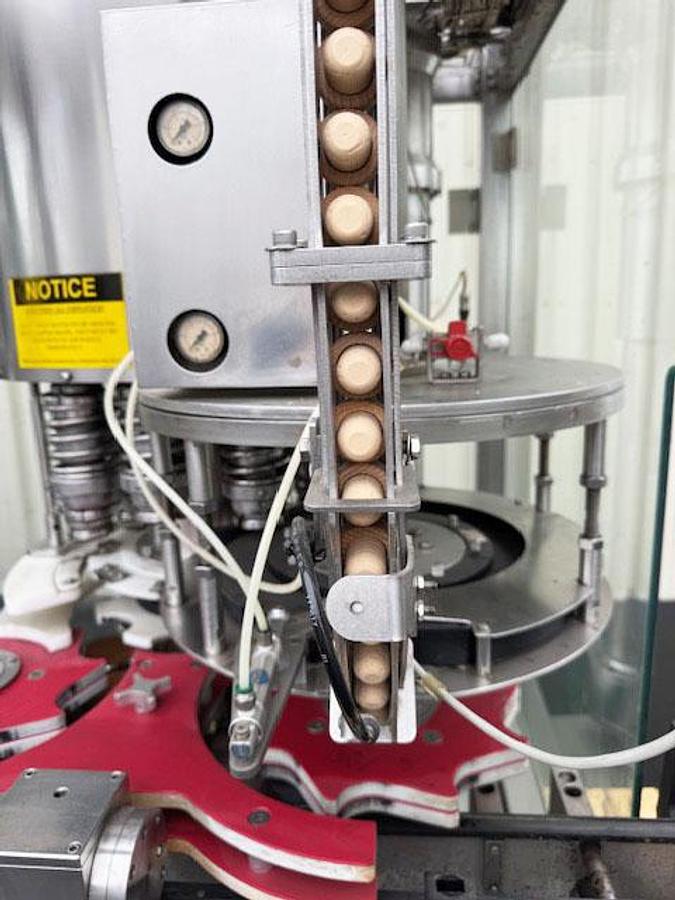

- Pick & Place T-Cork Delivery

- Factory rated speeds; Minimum 3,000bph / Maximum 15,000bph

- Heights: Min.160mm*/Max. 360 (* For future ROPP caps min height 160mm, for Press-on caps min height 200mm)

- Diameters: Minimum 55mm/Maximum 117mm

- Starwheel Pitch 21.25”

- 24” Long Container Infeed Timing Screw

- Stainless Steel Construction

- Safety Enclosure with Interlocking Access Doors

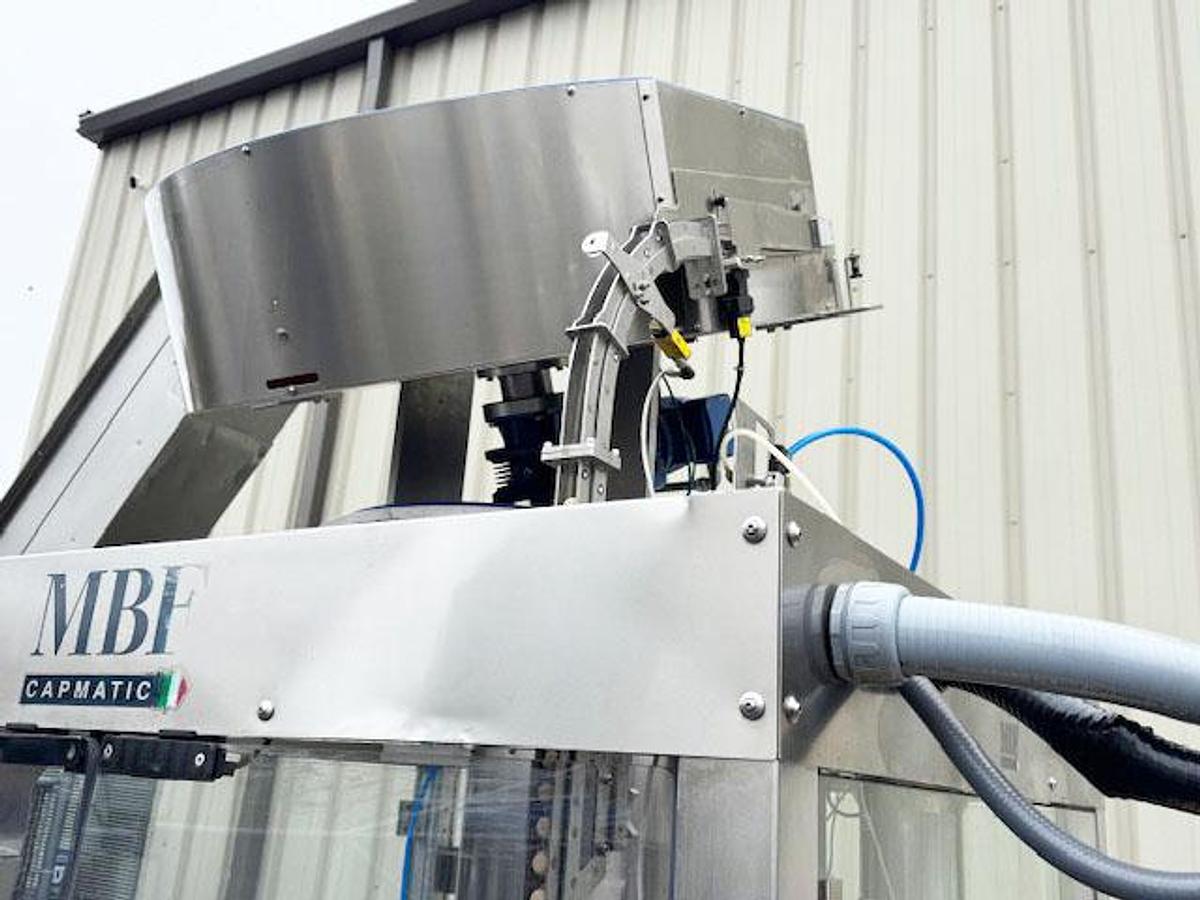

- MBF Rotary T-Cork Sorter Model Distr.Long Caps SS1200

- Includes Existing Bottle Handling Change Parts for 750ml Round Glass

- 4.5” Wide x 68” Long Pull Through Conveyor Section

- Conveyor Elevation 42” (adjustable)

- Threaded Leveler Legs

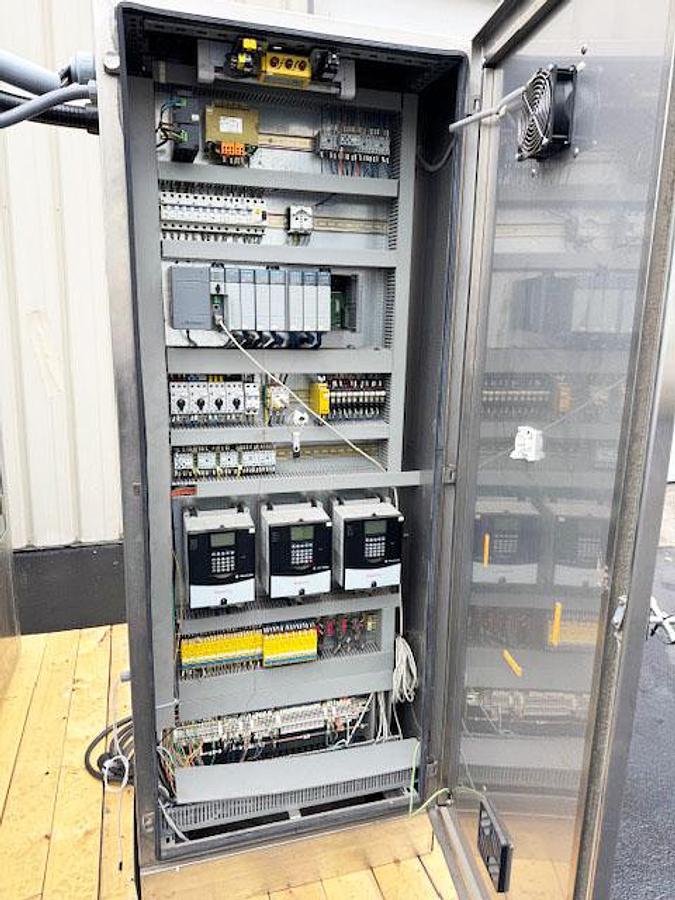

- Freestanding Stainless Steel Electric Panel 32” L x 16” W x 84” H

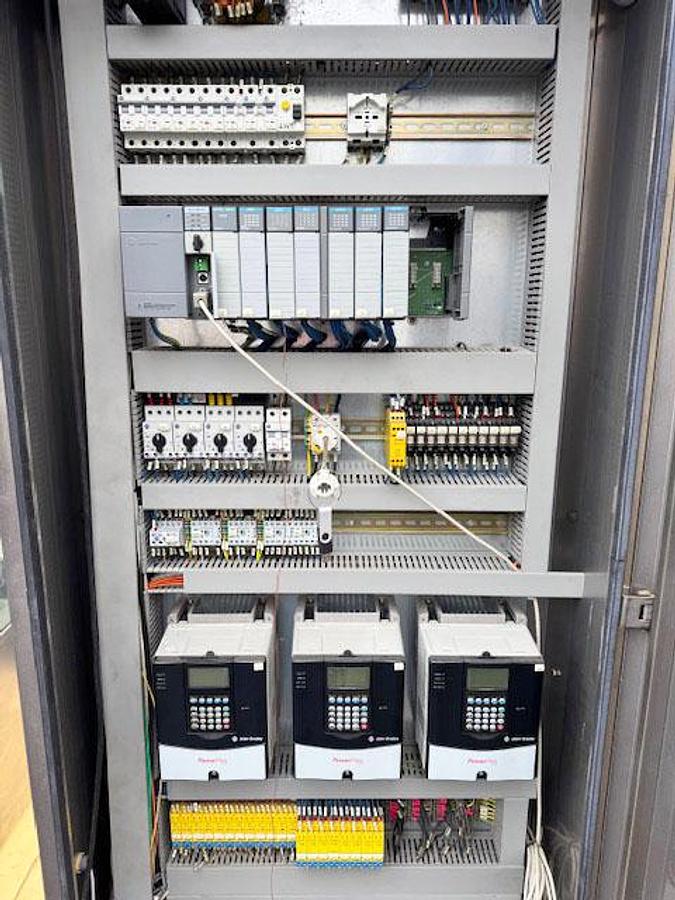

- Allen-Bradley SLC 5/04 Processor

- Allen Bradley PanelView 600 Operator Interface

- Allen Bradley Powerflex Speed Drives

- Electrical 480 Volt, 3 Ph, 60 Hz,

- CE Rated

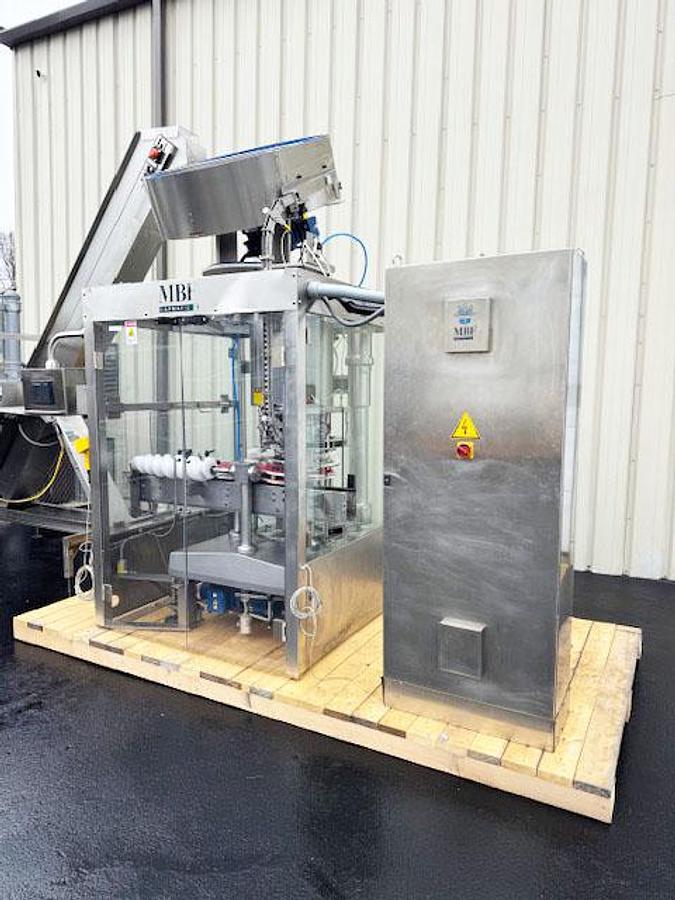

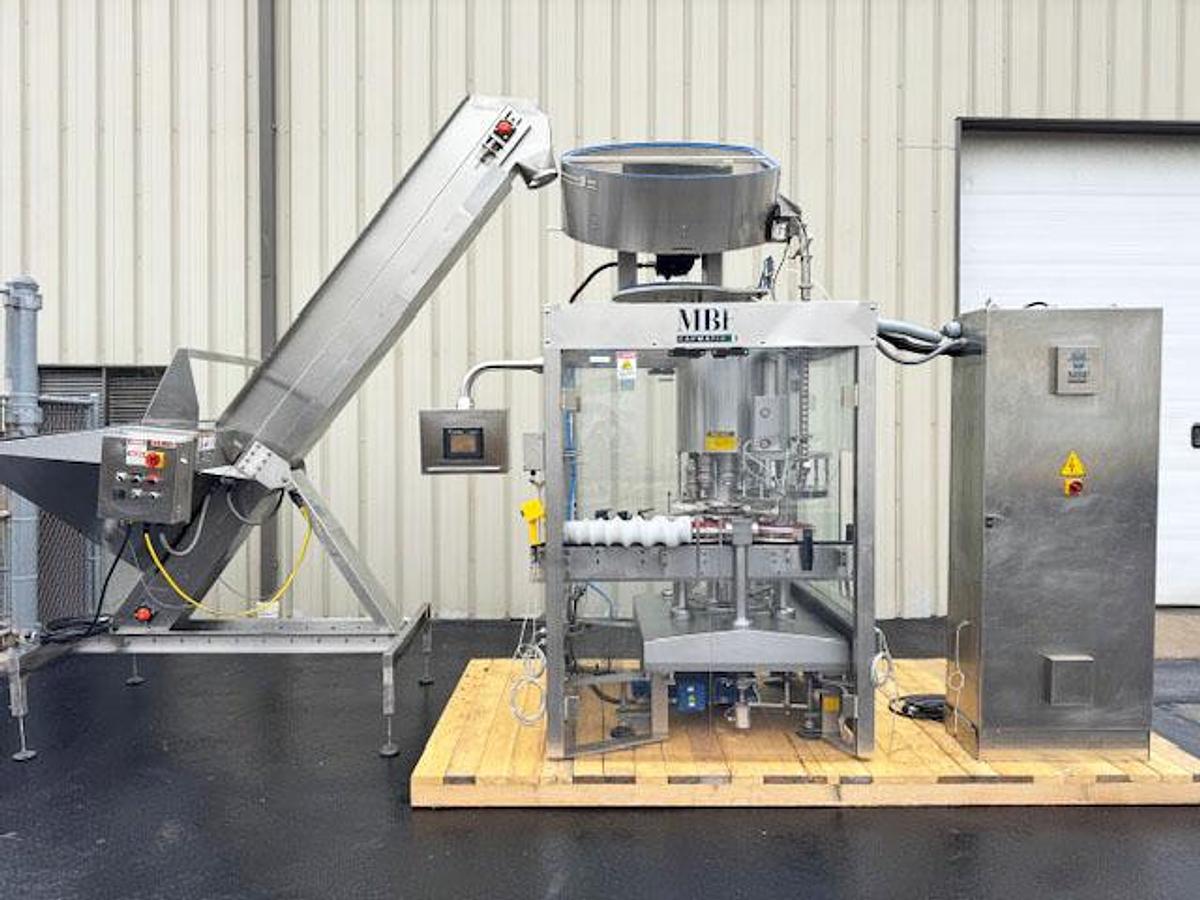

- Corker Dimensions 87” L x 58” W x 132” H with cap sorter

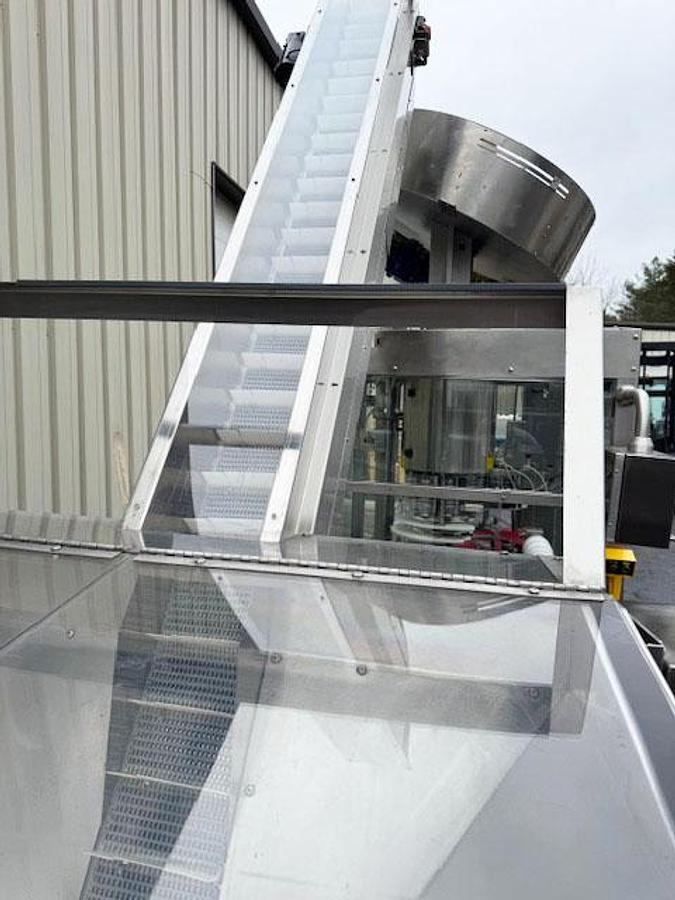

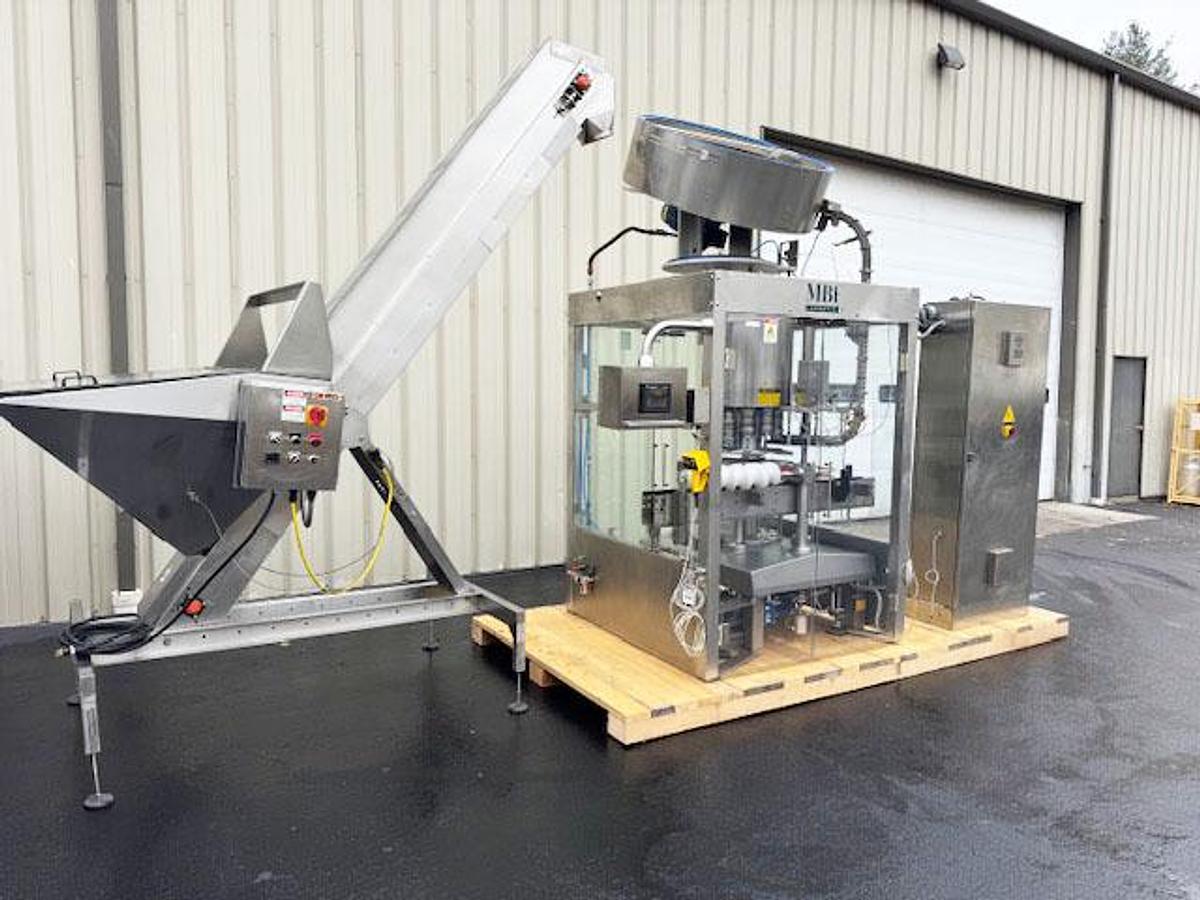

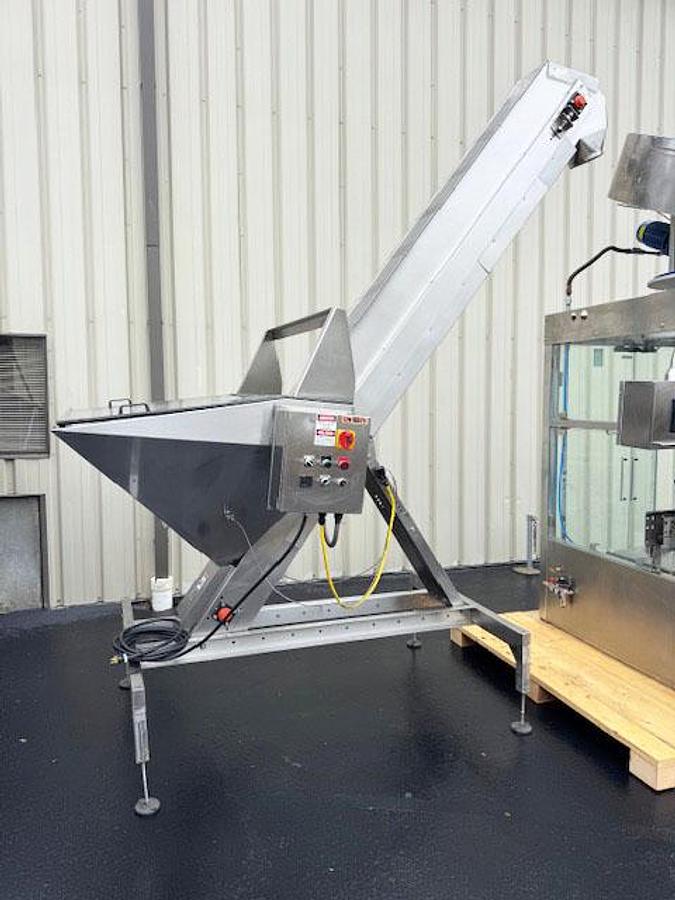

- Includes Fowler Model BDC-20 T-Cork Hopper Elevator Feeder, S/N 2002053

- Stainless Steel Construction

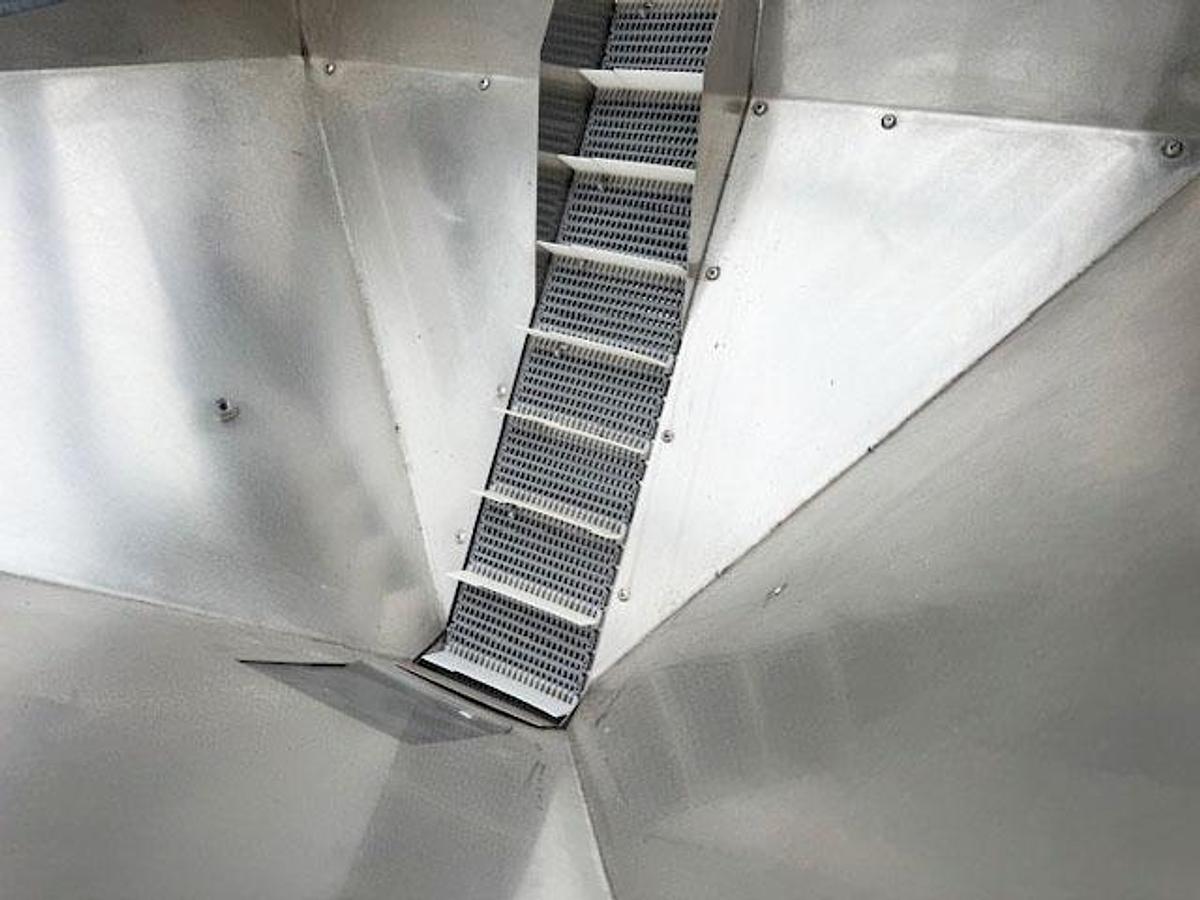

- 8” Wide Cleated Belt, 2” Cleats 4” On Center

- Hopper Dimensions 48” L x 48” W x 32” Deep

- (4) Threaded Leveler Legs

- Hopper-Elevator Dimensions 120” L x 58” W x 142” H

- Condition: Used
