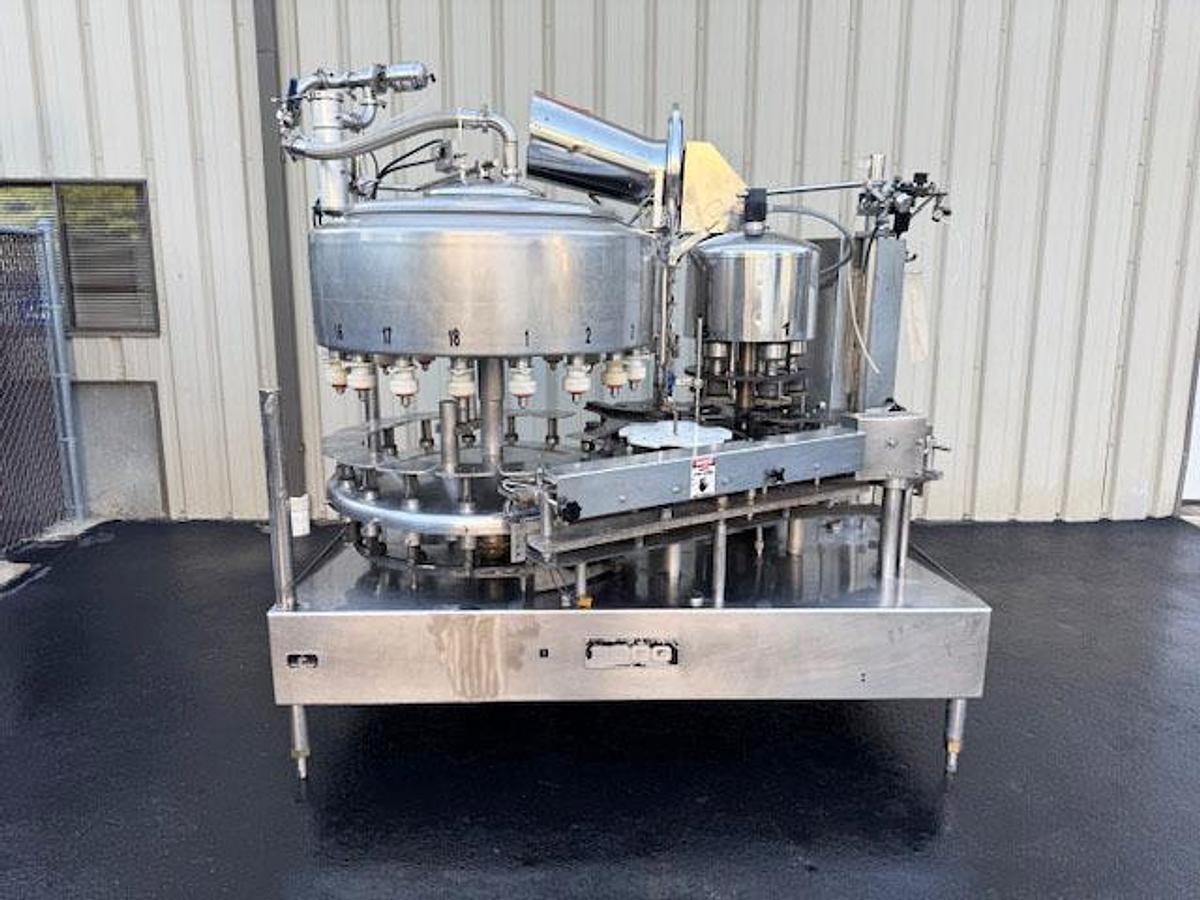

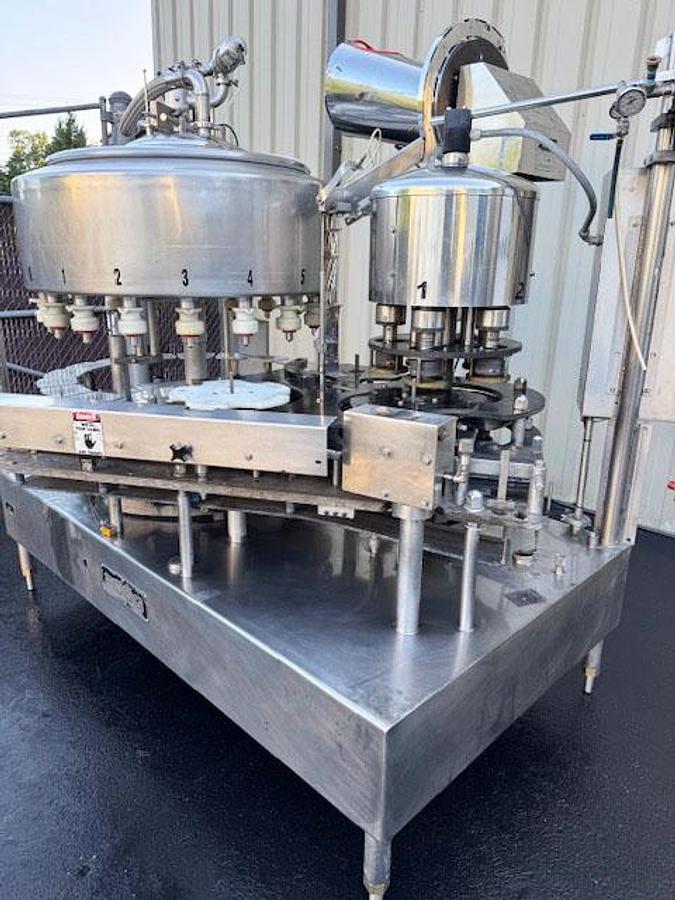

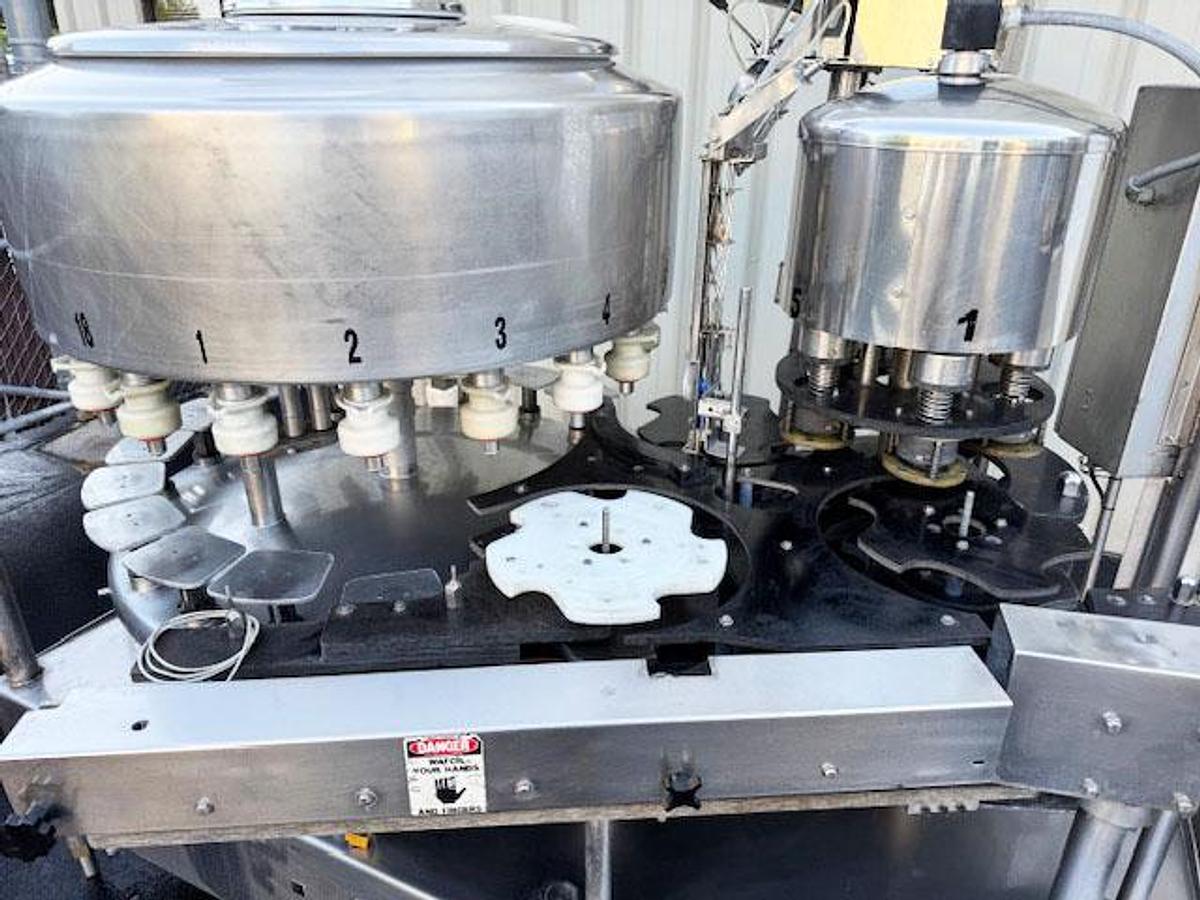

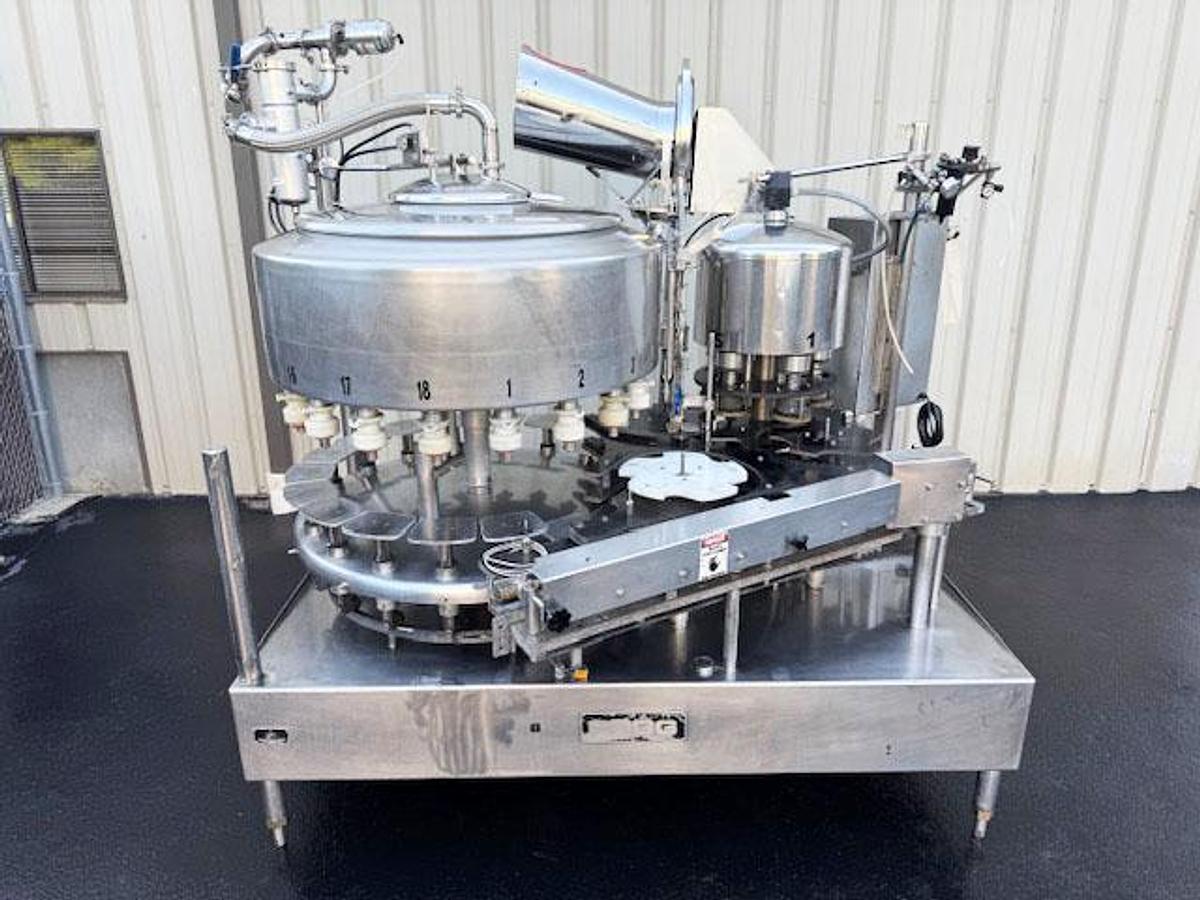

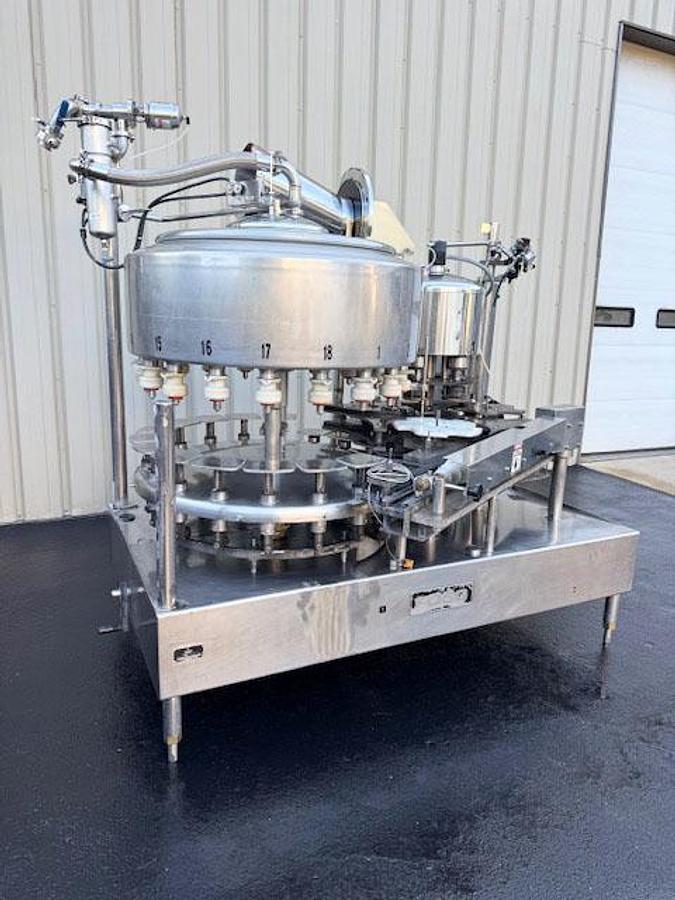

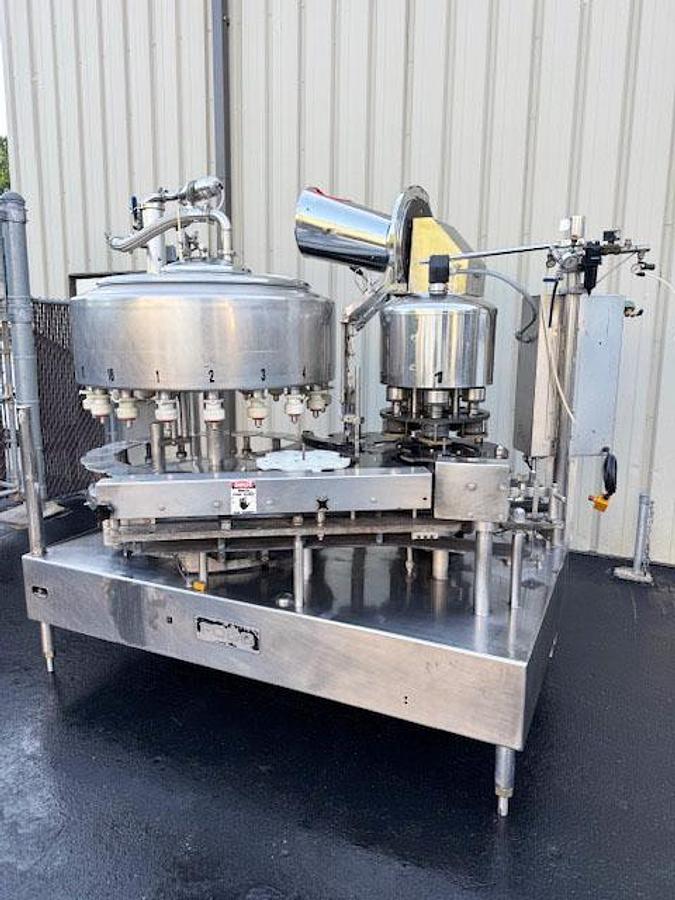

FOGG 18 Valve Bottle Filler with 5 head Plastic Screw Capper

FOGG 18 Valve Bottle Filler with 5 head Plastic Screw Capper

Fogg offers gravity bottle filling equipment from bottled water to antifreeze, juice to household products, pharmaceutical to dairy products. Fogg filling machines have proven superior in applications throughout the world.

Details:

- Model Number FG-185

- Serial Number 510141196R

- Manufacturer: FOGG Filler Company, Holland Michigan

- Stainless Steel Construction

- Left to Right Operation (Clockwise)

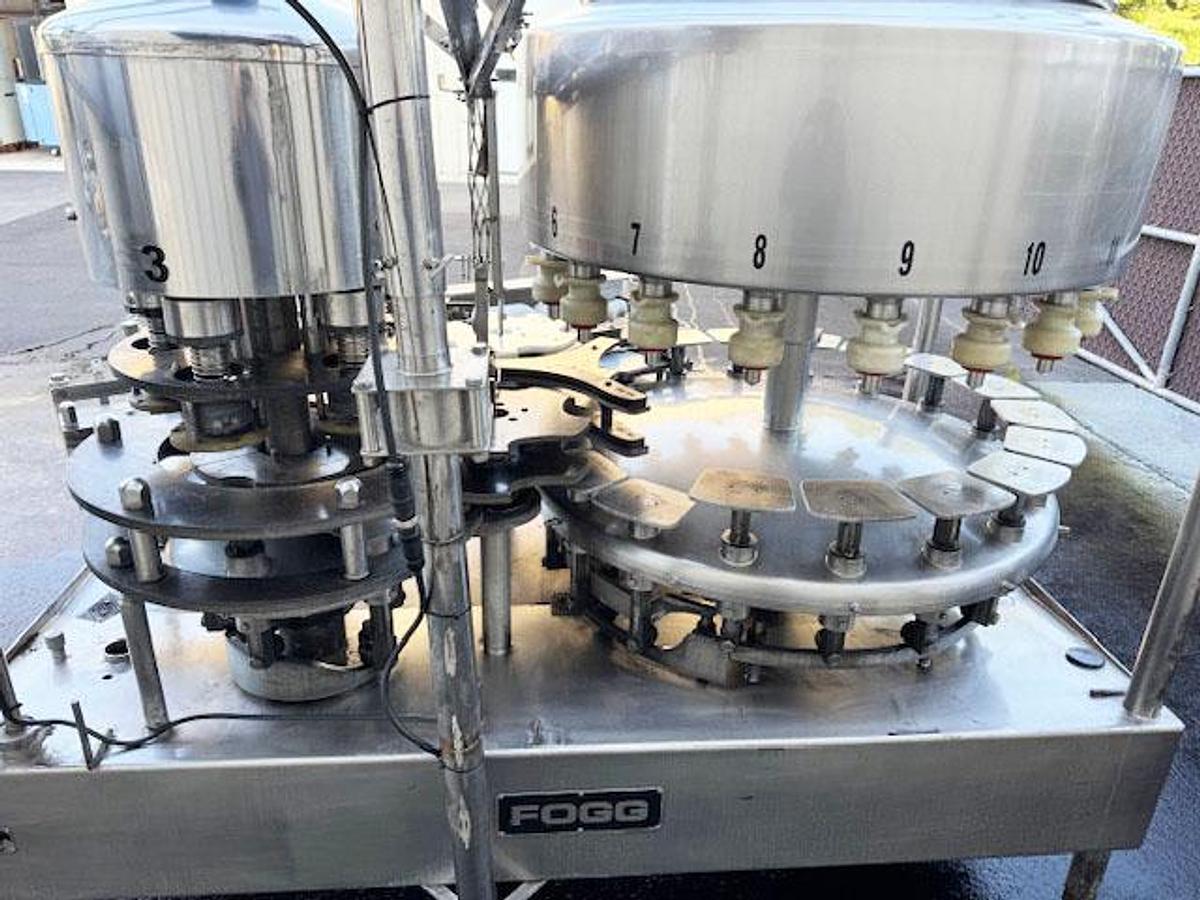

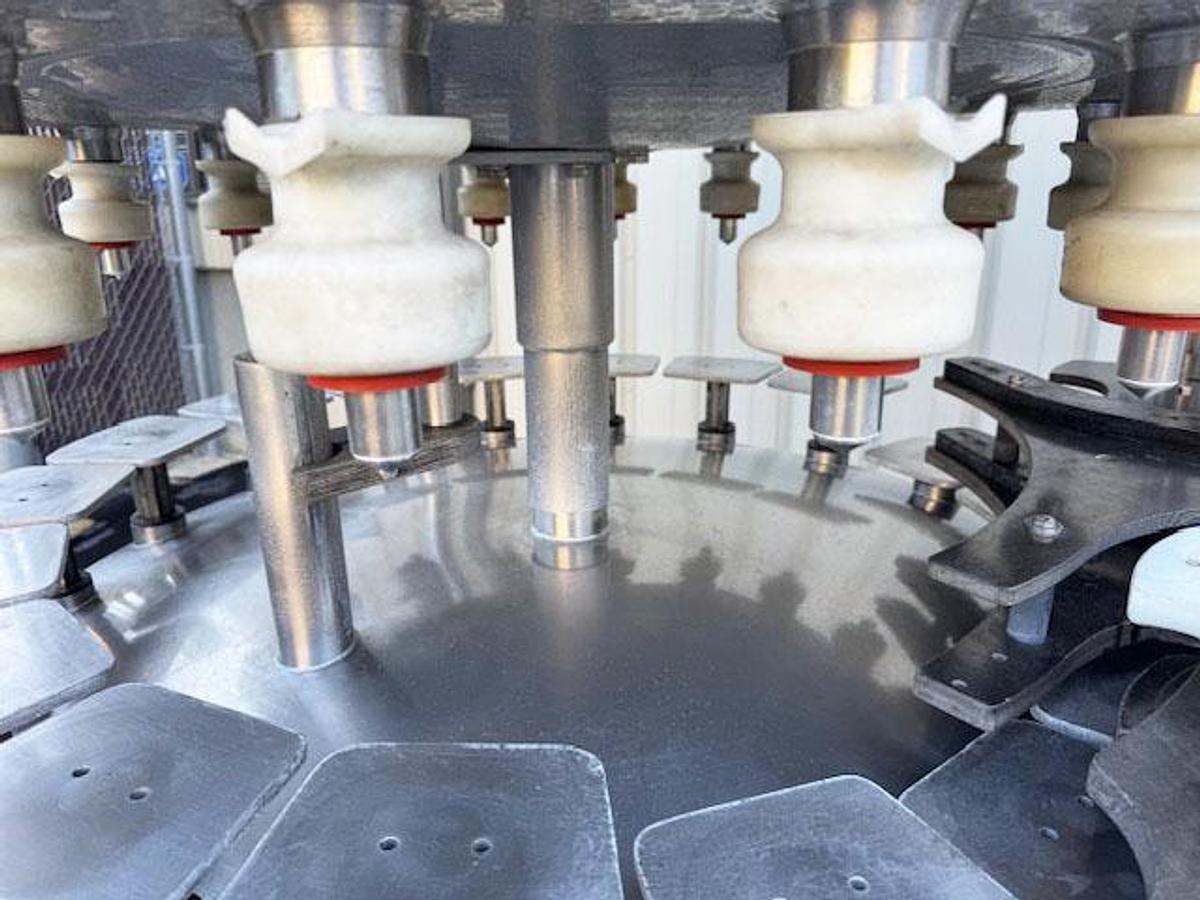

- 18 Valve Gravity Type Bottle Filler with two (2) sets of filling nozzles (.75” and 1")

- Filling Valves with 7.50" (Gallon) Pitch / Centers

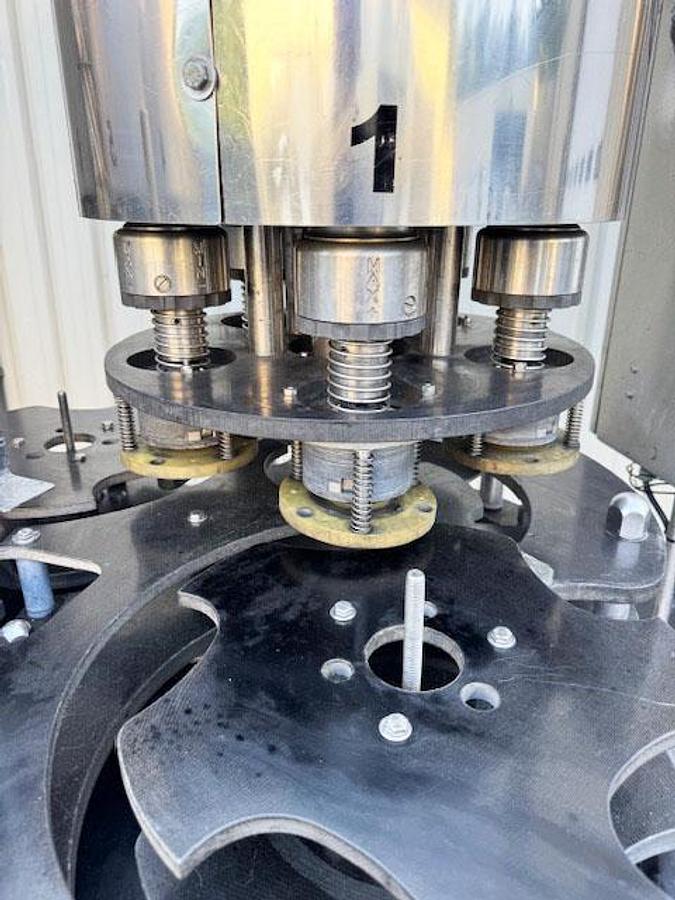

- 5 Head Rotary Screw Capper presently set for 28mm Flat Plastic Screw Caps

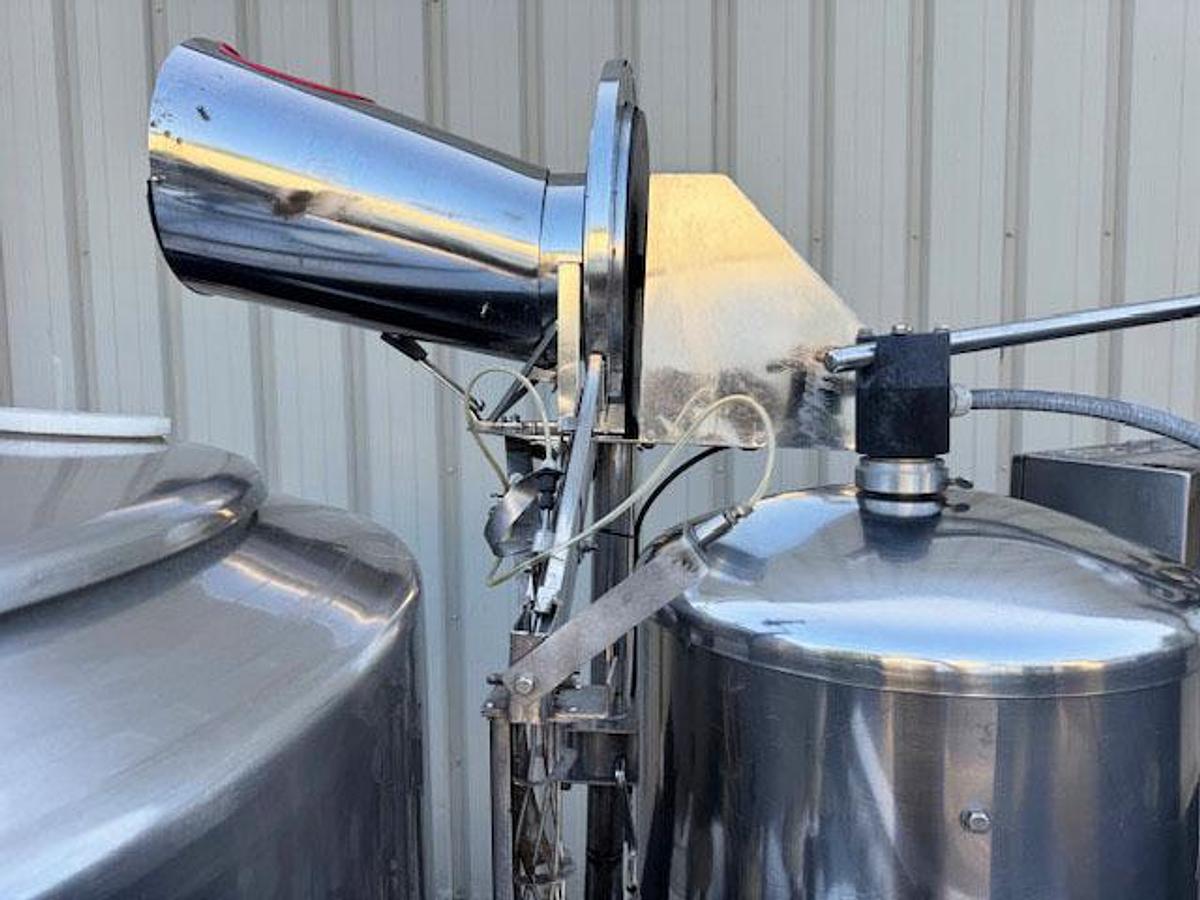

- FOGG Model D18-RH Rotary Cap Sorter Feeder

- Includes Cap Chute and Pick-Off Assembly

- Includes (3) Existing Bottle Change Parts for 500ml round, 1liter round, 3 liter round,

- Stainless Steel Operator Panel with E-Stop

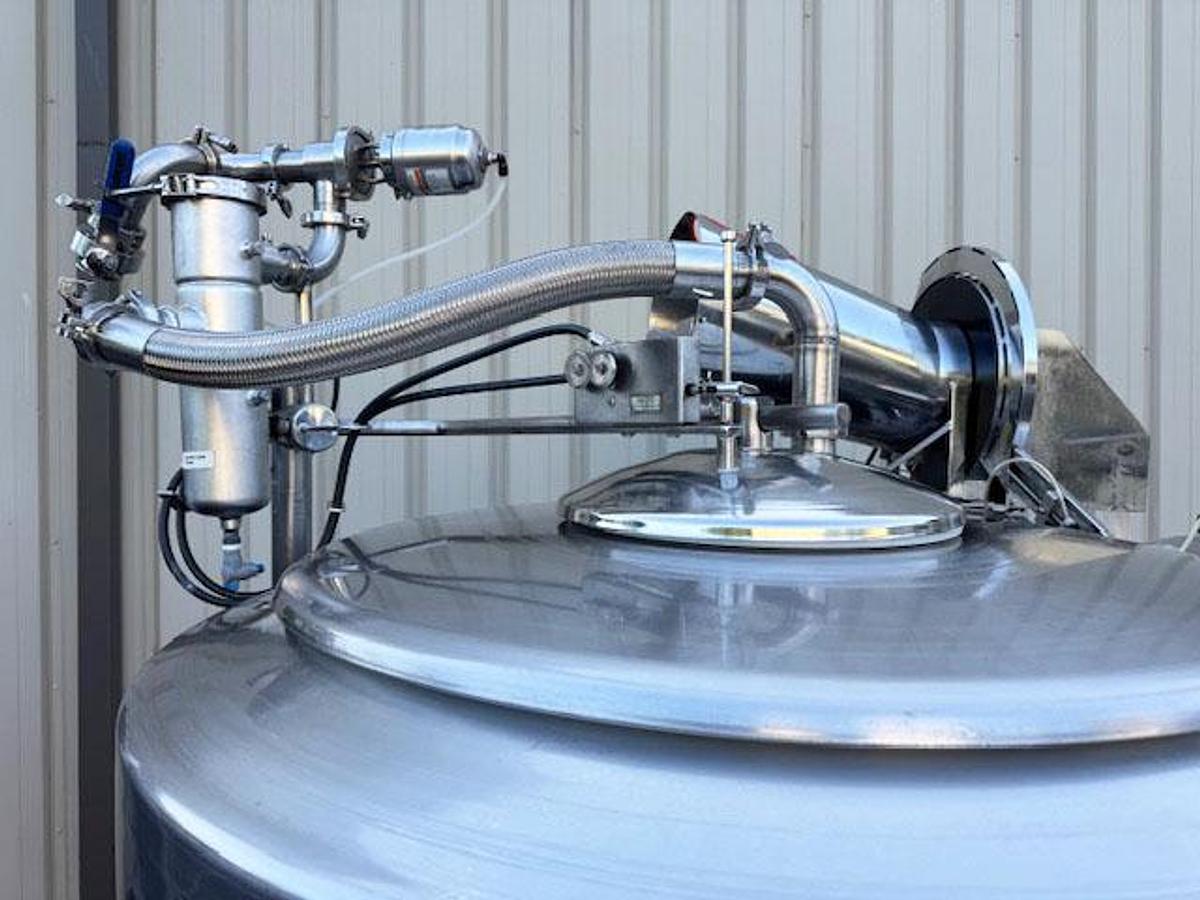

- Tri-Clover Filler Bowl Float Mechanism

- Tri-Clover Pneumatic Product Infeed Valve

- 3.25” Wide x 66” Long Pull Through Conveyor Section

- Electrical 460 Volt, 3 Ph, 60 Hz,

- Variable Speed Drive

- Threaded Floor Leveler Legs

- Overall Dimensions 92” L x 64” W x 96” H

- Condition: Used
