Complete used Krones 54,000 BPH Water Bottling Line, Year 2017

Complete used Krones 54,000 BPH Water Bottling Line From Krones Contiform Bloc thru Pallet Wrapper

Year 2017 – North America

• This used 54,000 BPH PET Water Bottling Line, just removed, skidded and available for sale. The line is complete from Blow Molder (Moulder) to Pallet Stretch Wrapper and was originally designed and installed in year 2017 to run 54,000 BPH on 8.5 ounce and 45,000 BPH on 16.9 ounce PET Bottles with 26.7mm plastic screw caps. The case packer and preform tote dumper have been sold separately (no longer available), otherwise the line is complete and ready for re-installation.

• The Line features a KRONES CONTIFORM S24 Blow Molder that includes the blow wheel, oven, electrical control panel, main cabinet, preform incline orientor feeder. The filler is a KRONES VODM-PET Volumetric Mono-Block 88 valve high speed PET Bottle Filler – 33 Head Capper (on 28mm), block with flat and sport cap feeders, two KRONES Contirol Labelers and Robobox Case Palletizer.

Equipment includes:

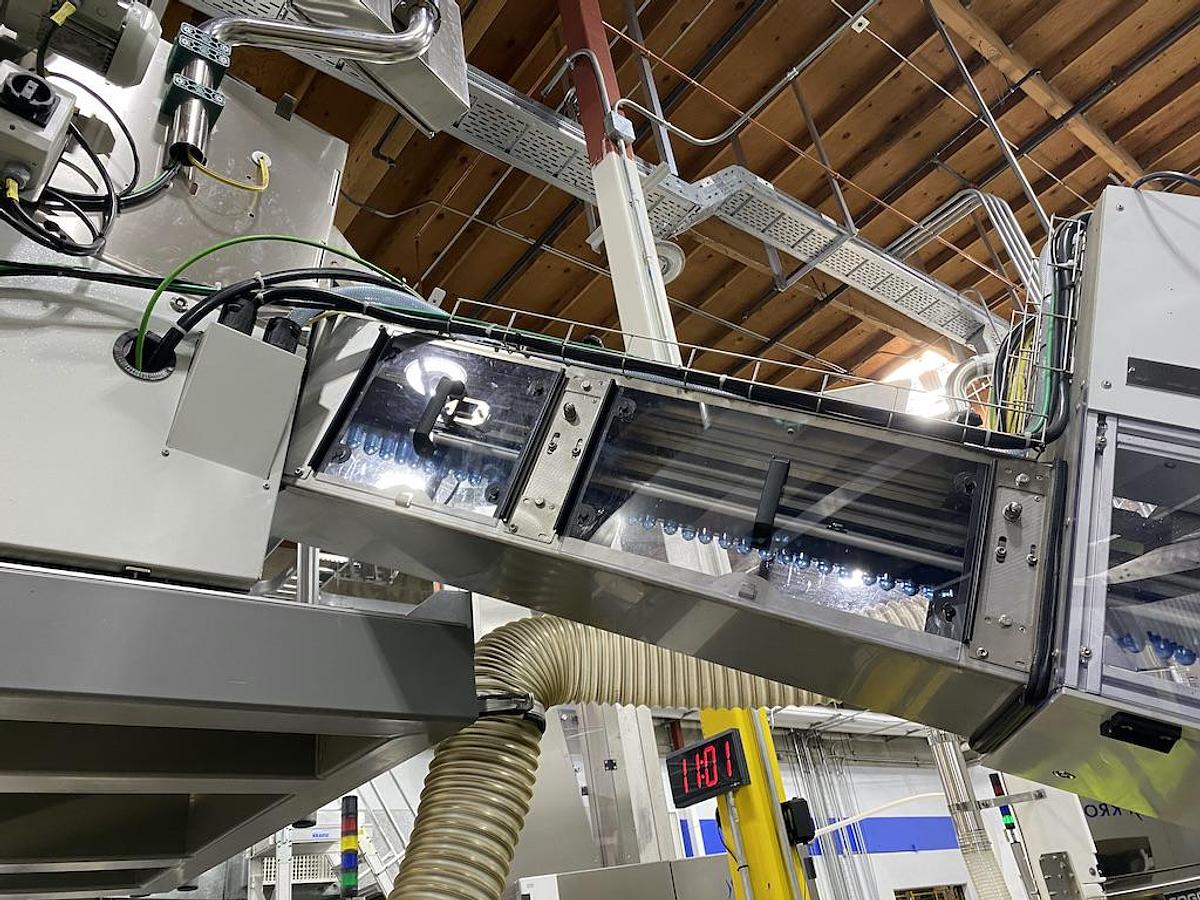

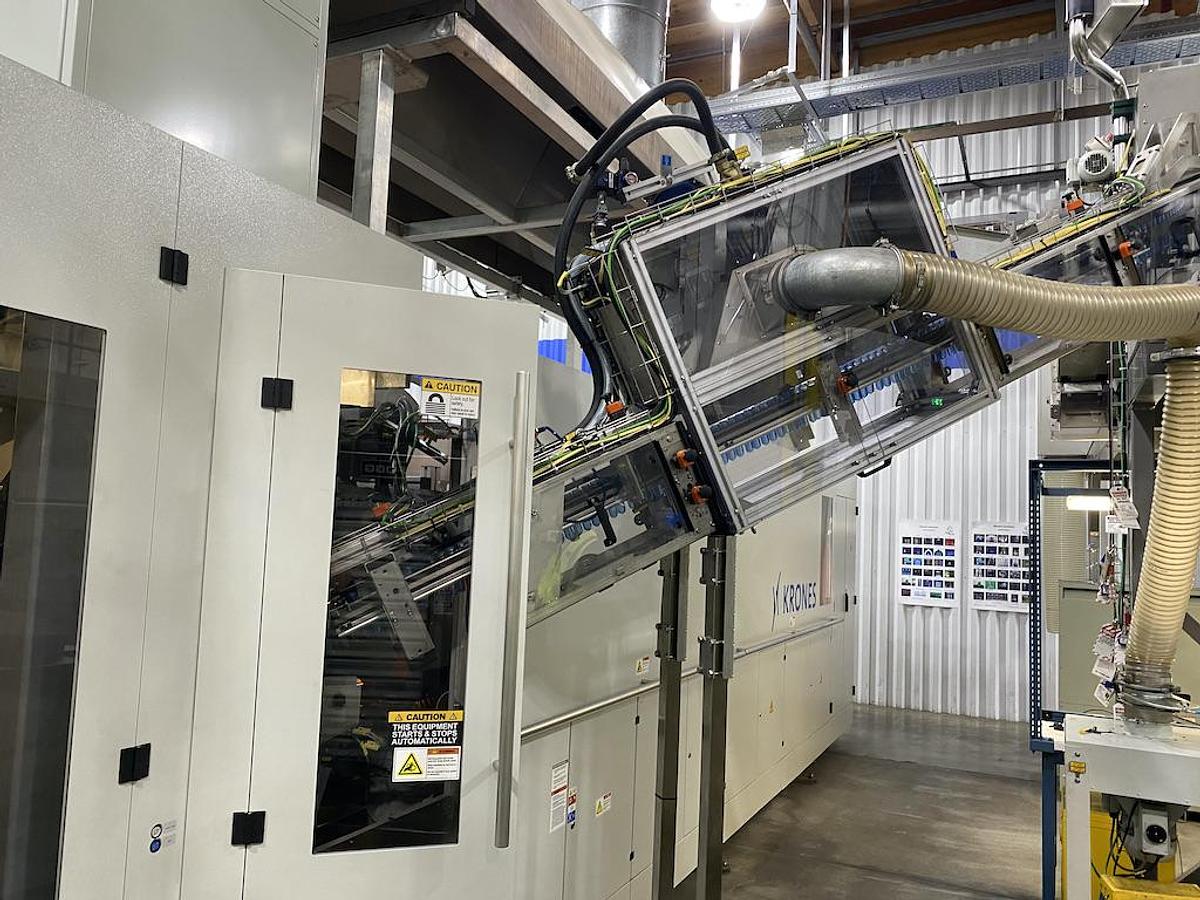

Krones Preform Contifeed Orienter Feeder

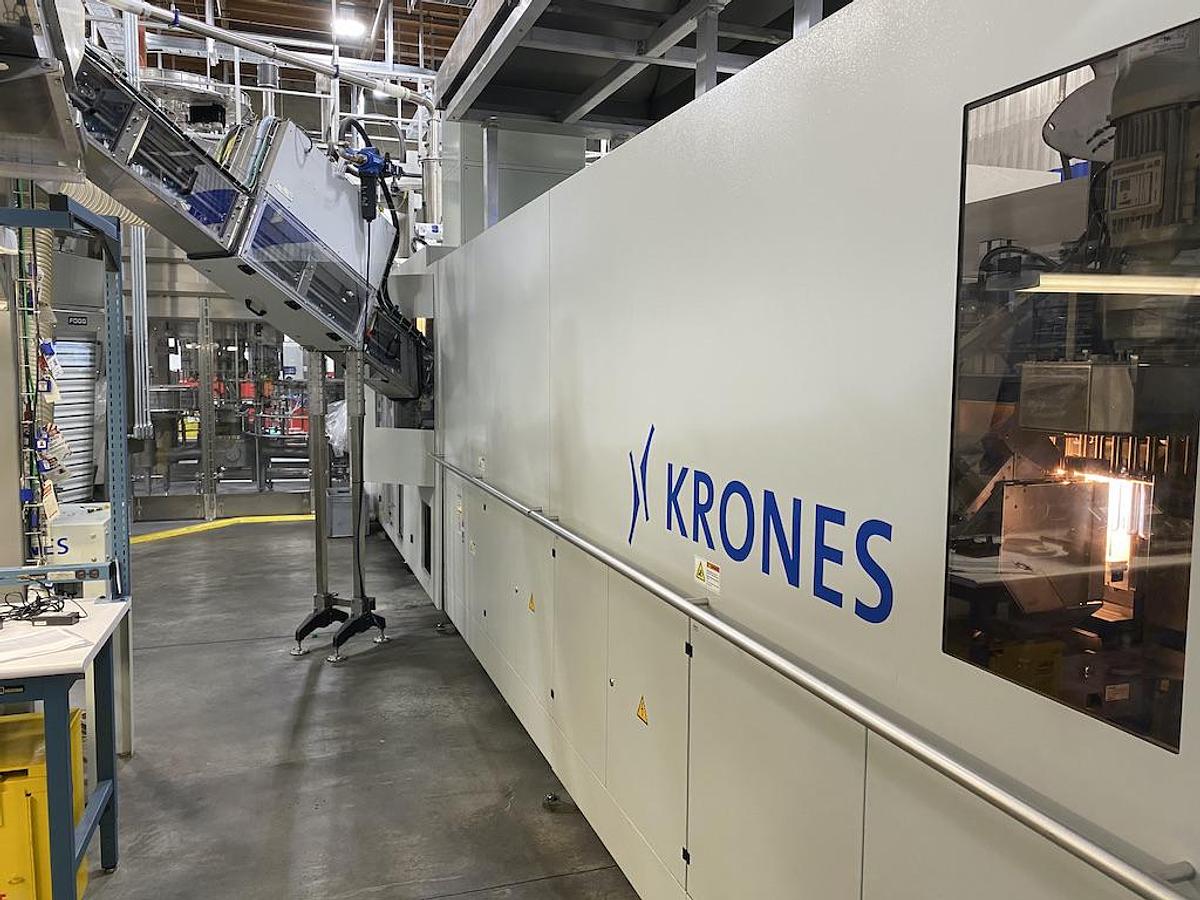

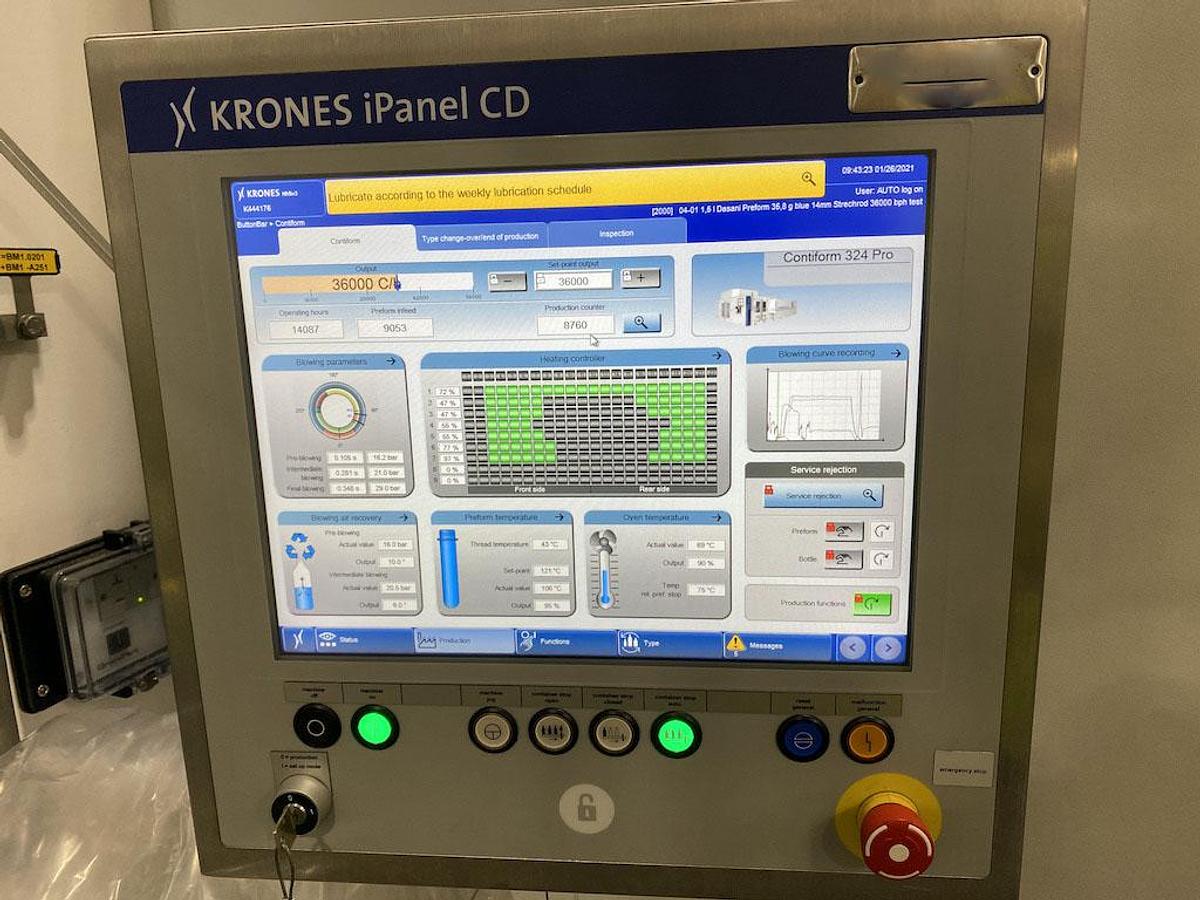

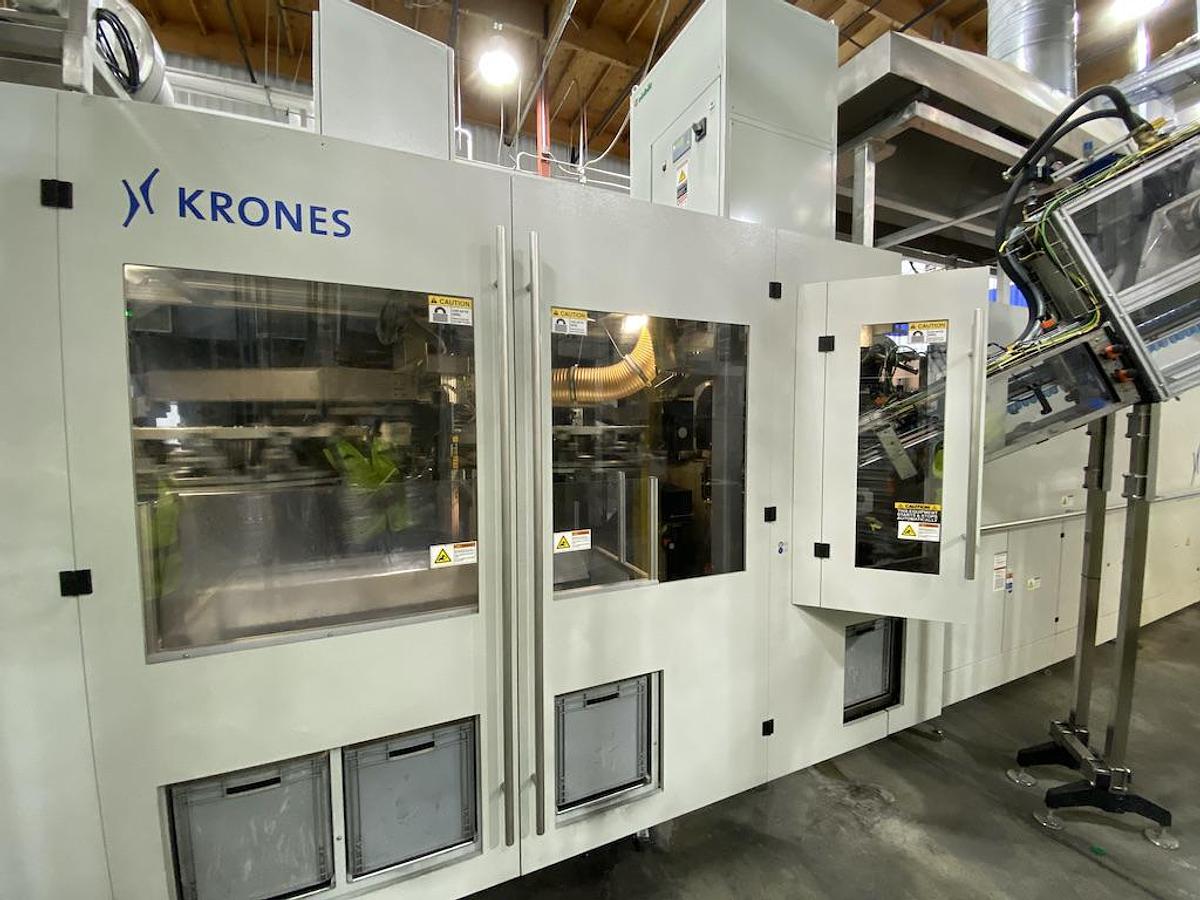

Krones 24 cavity Blow Molder, model Contiform 324 Pro

High pressure air compressors, Low Pressure and High Pressure Booster

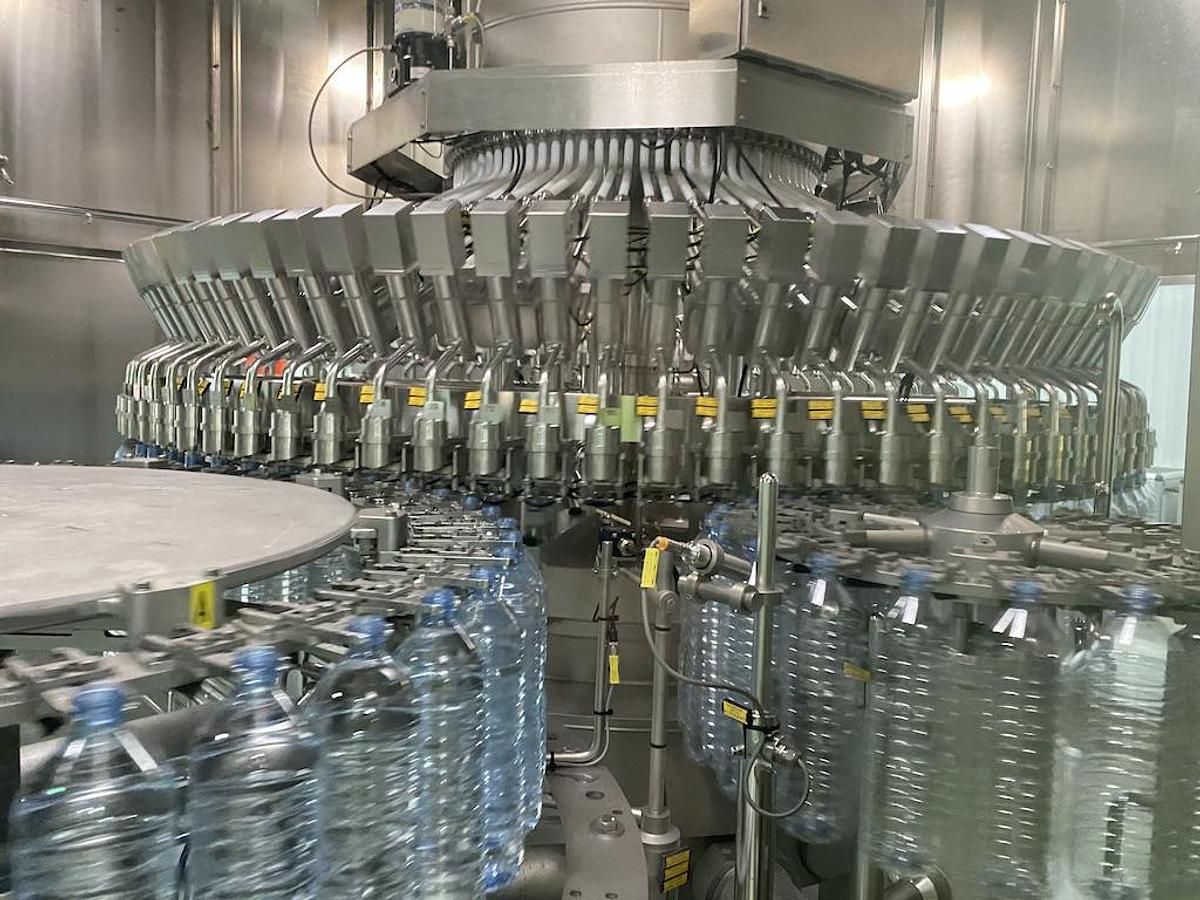

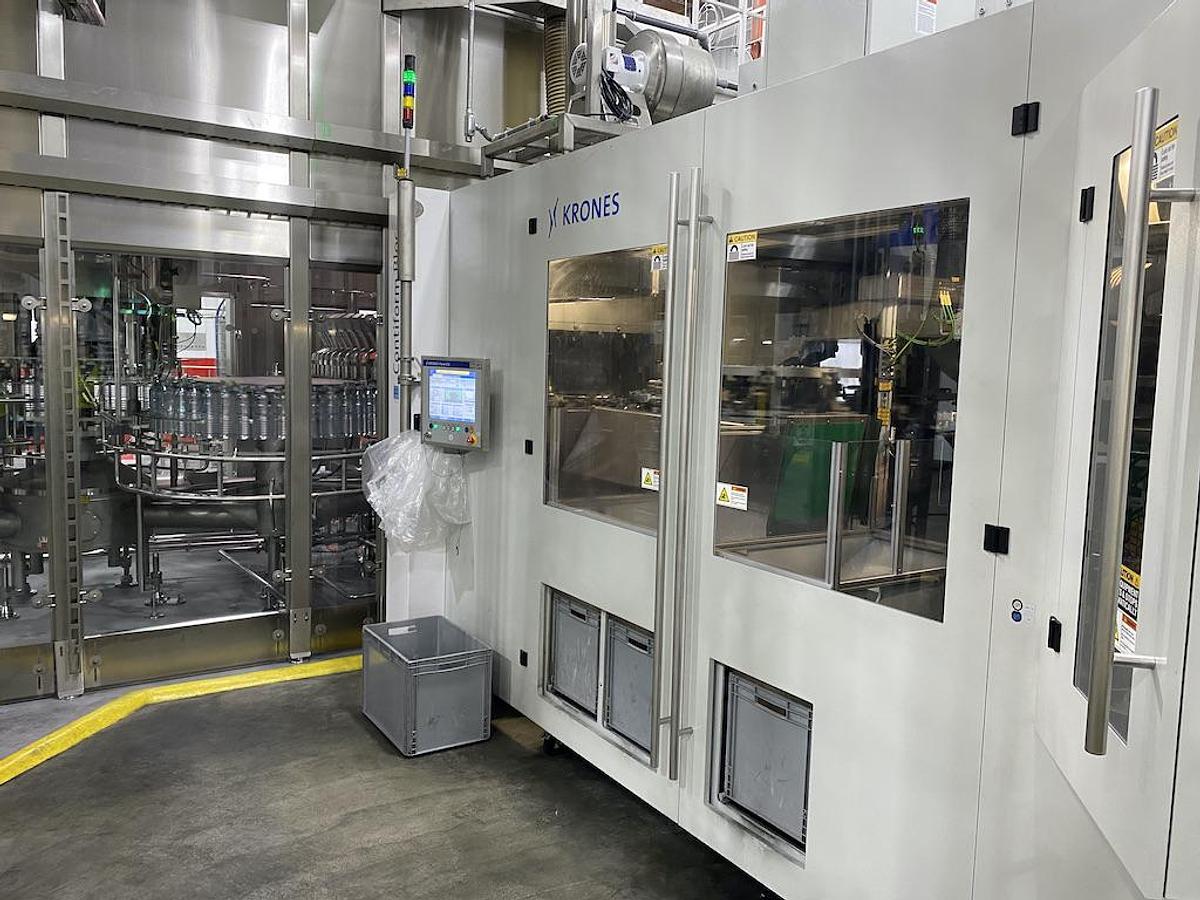

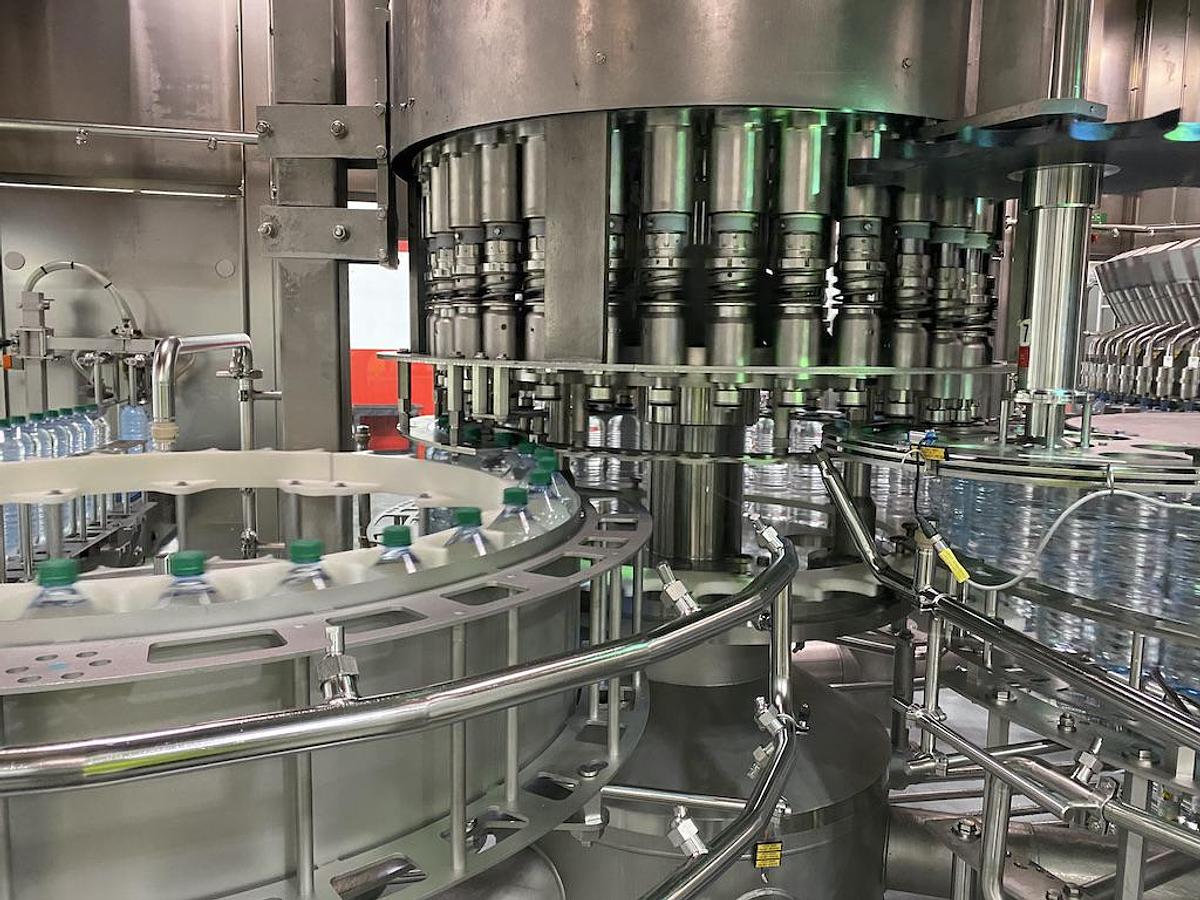

Krones 88 Valve Volumetic Bottle Filler , Modufill PET with 33 Head Capper set 28 mm

Krones model Capcade, Cap Hopper – Cap Feeder for flat caps

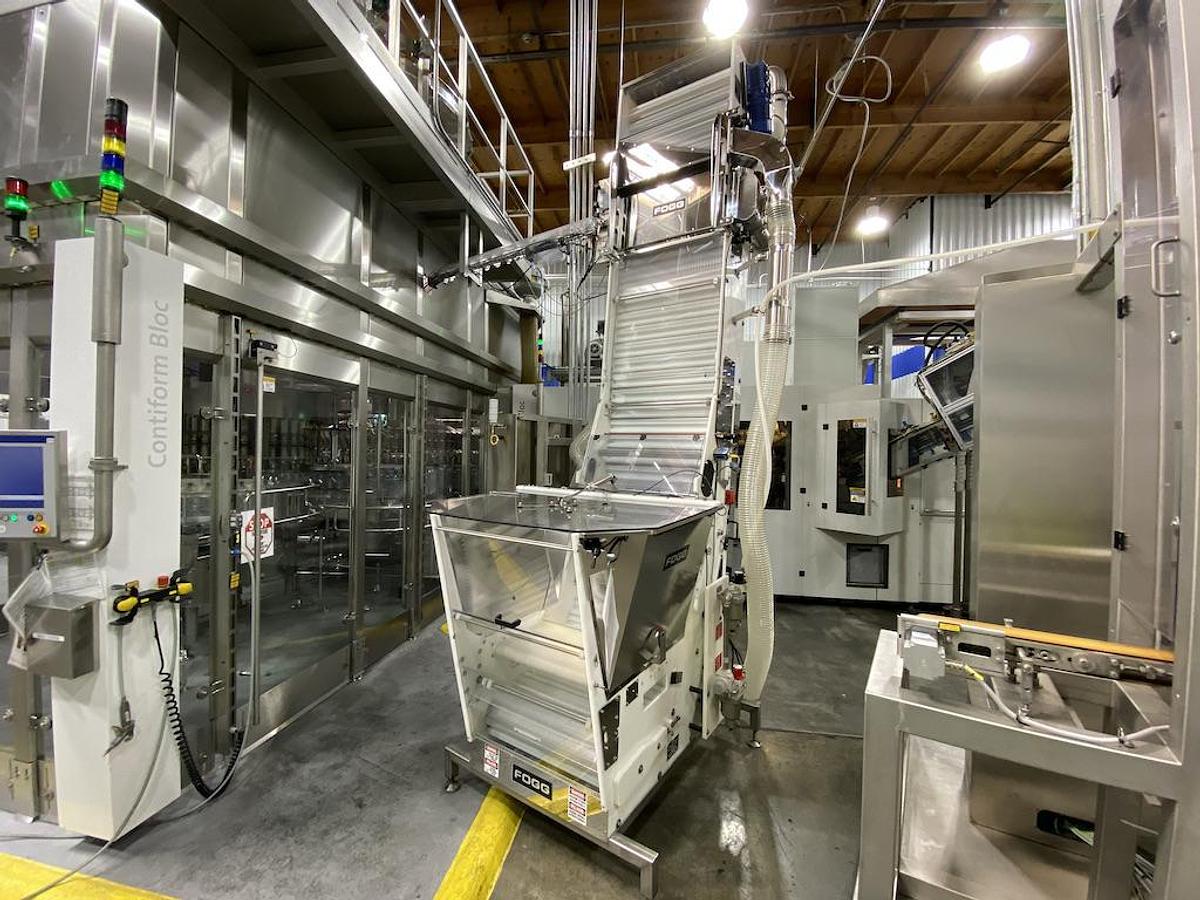

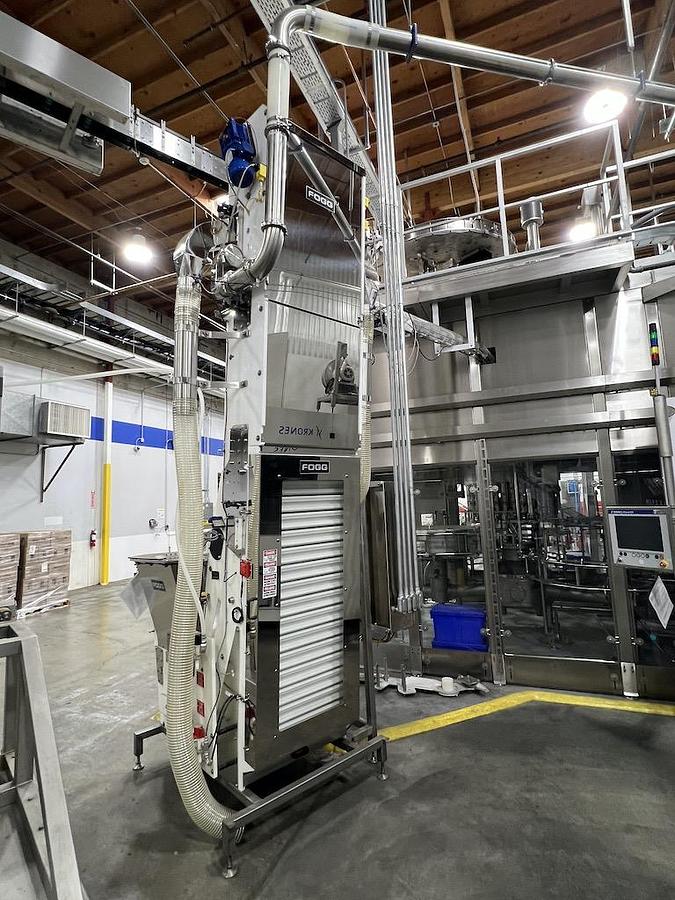

Fogg model 756-5-5-12-U-19, Cap Hopper – Cap Feeder for sport caps

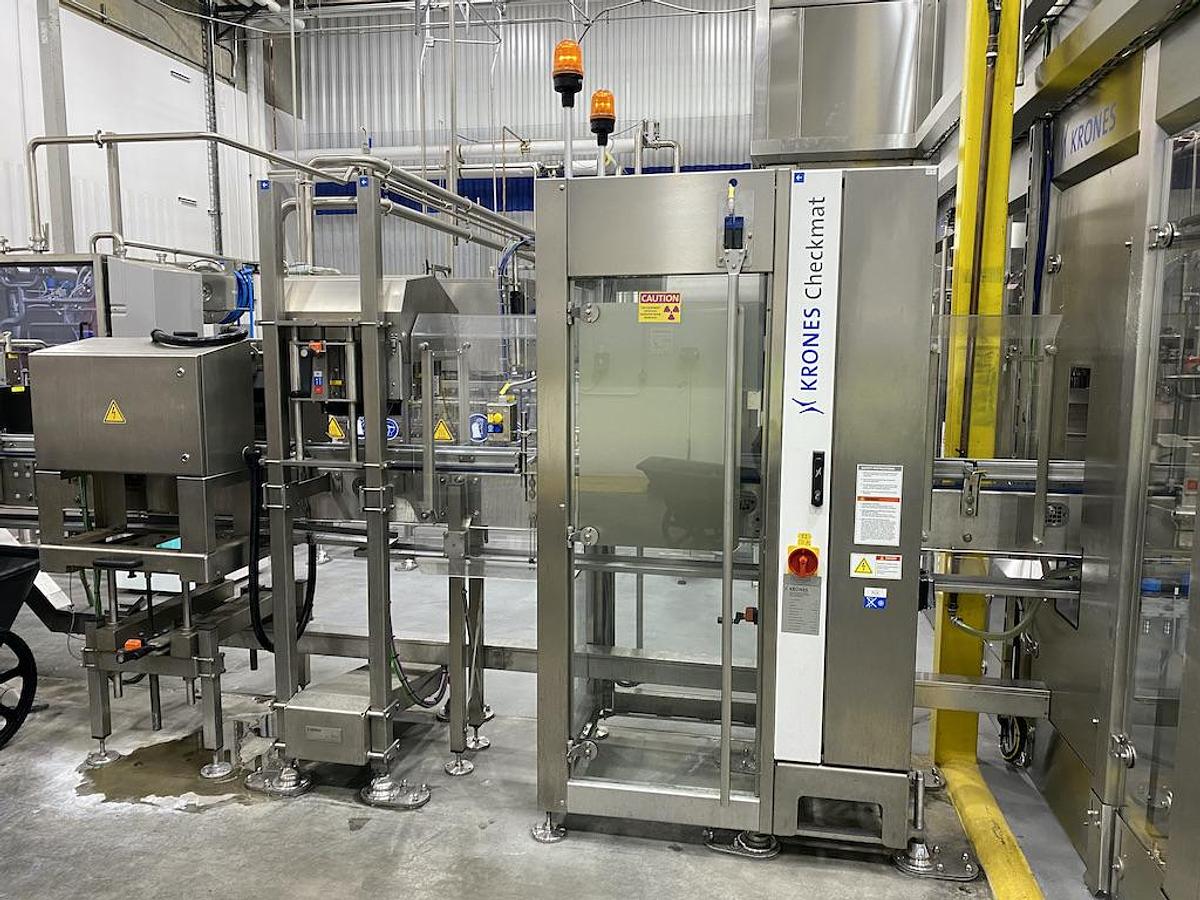

Krones Checkmat Inspection System

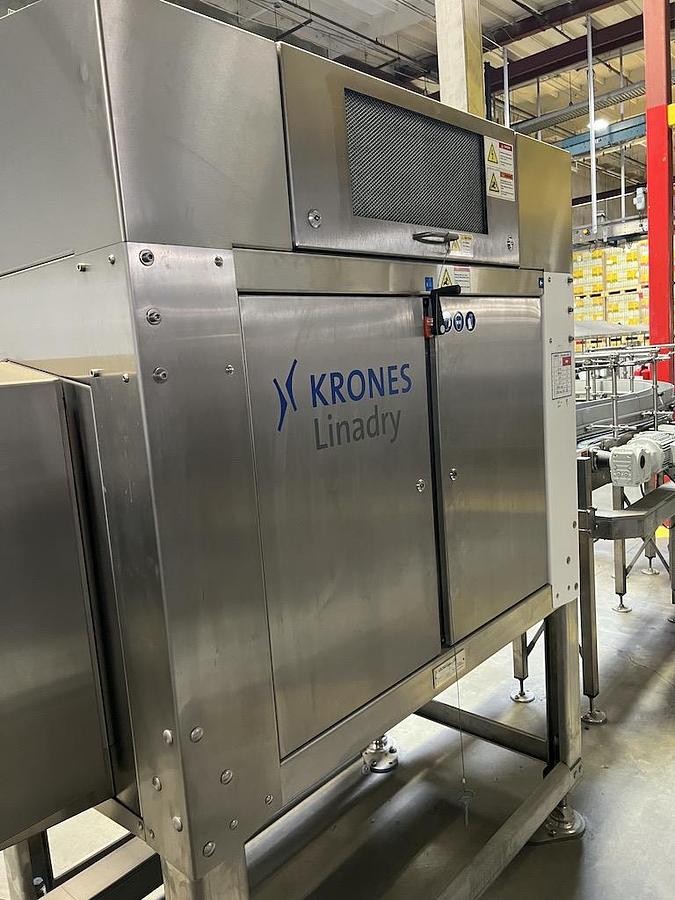

Krones Linadry Air Knife System

Two (2) Krones Contiroll 8100 Hot Glue Wrap Around Roll Feed Labelers

Two (2) Krones Checkmat Inspection System, post label

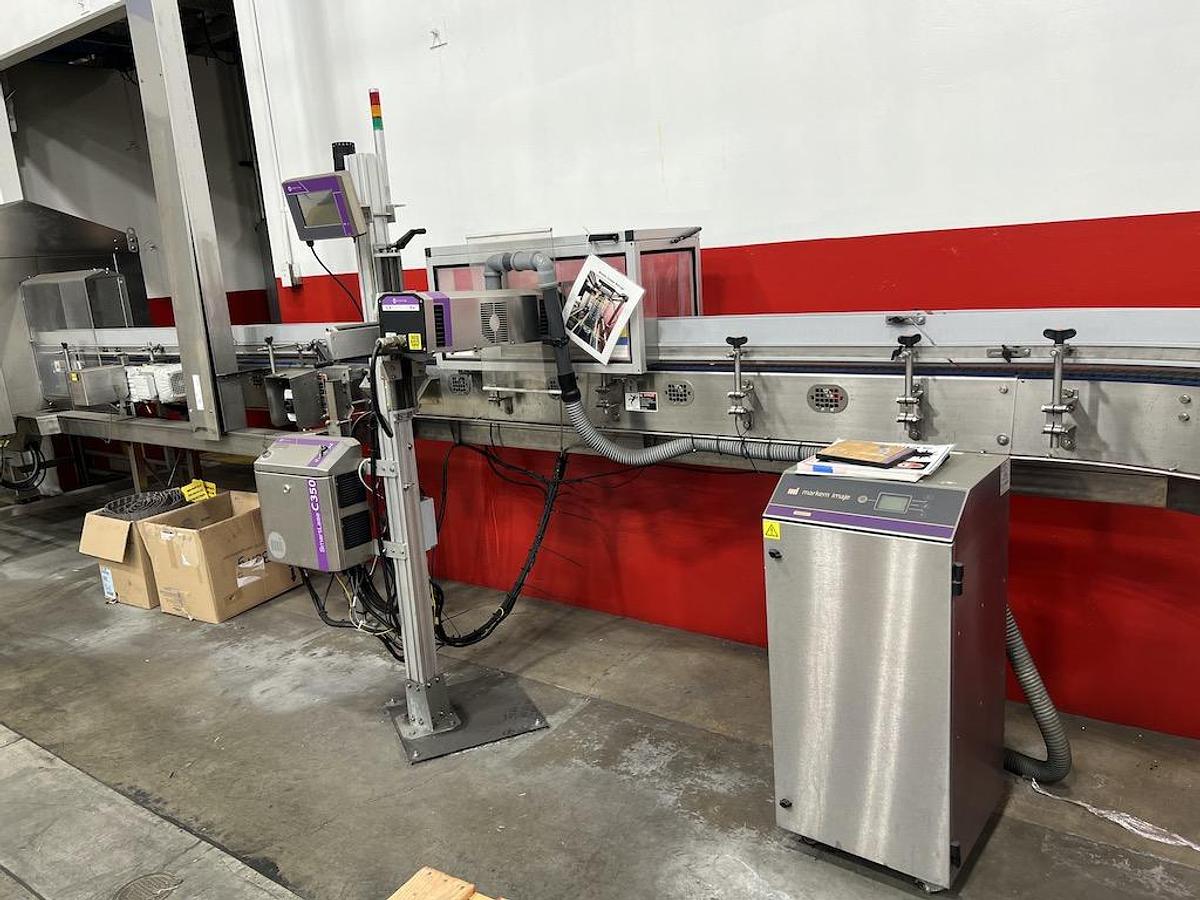

Markem-Imaje Coder SLC350

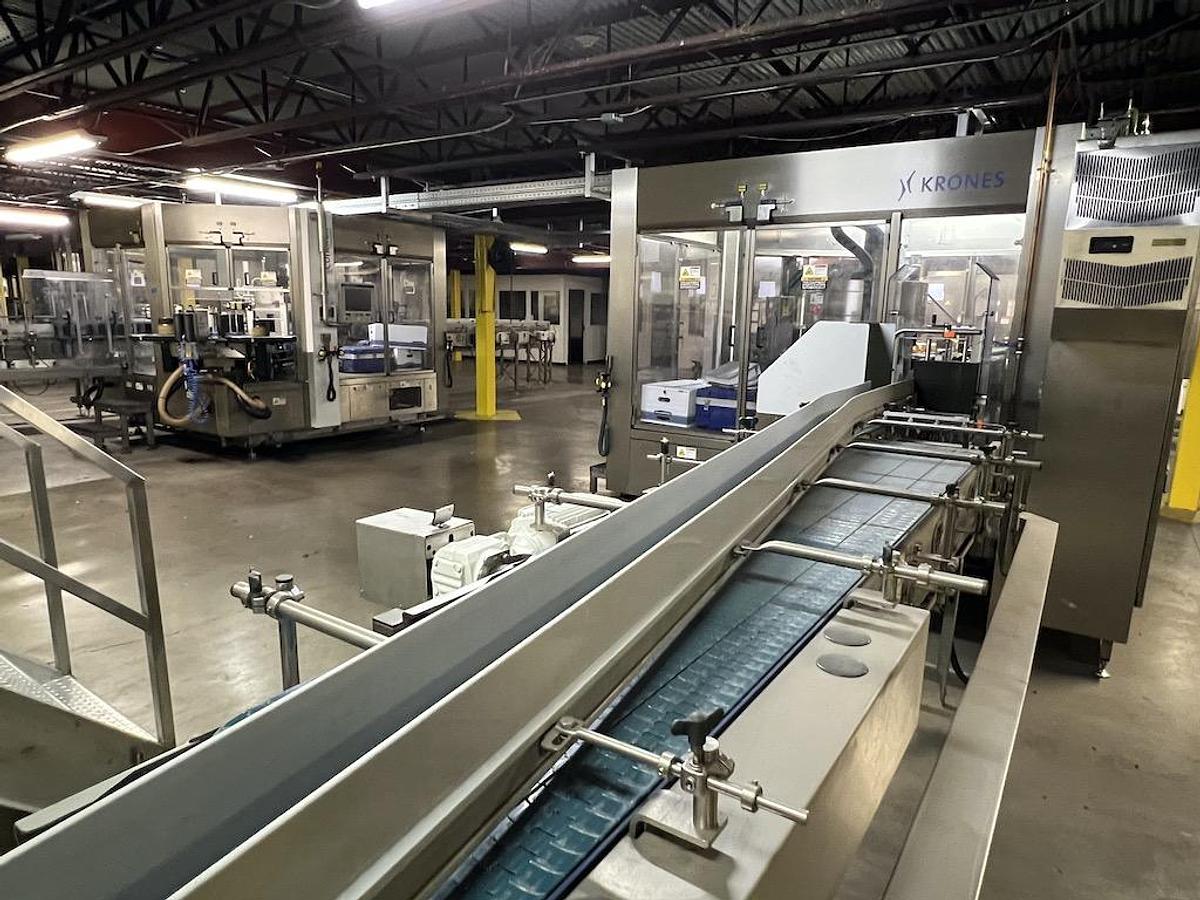

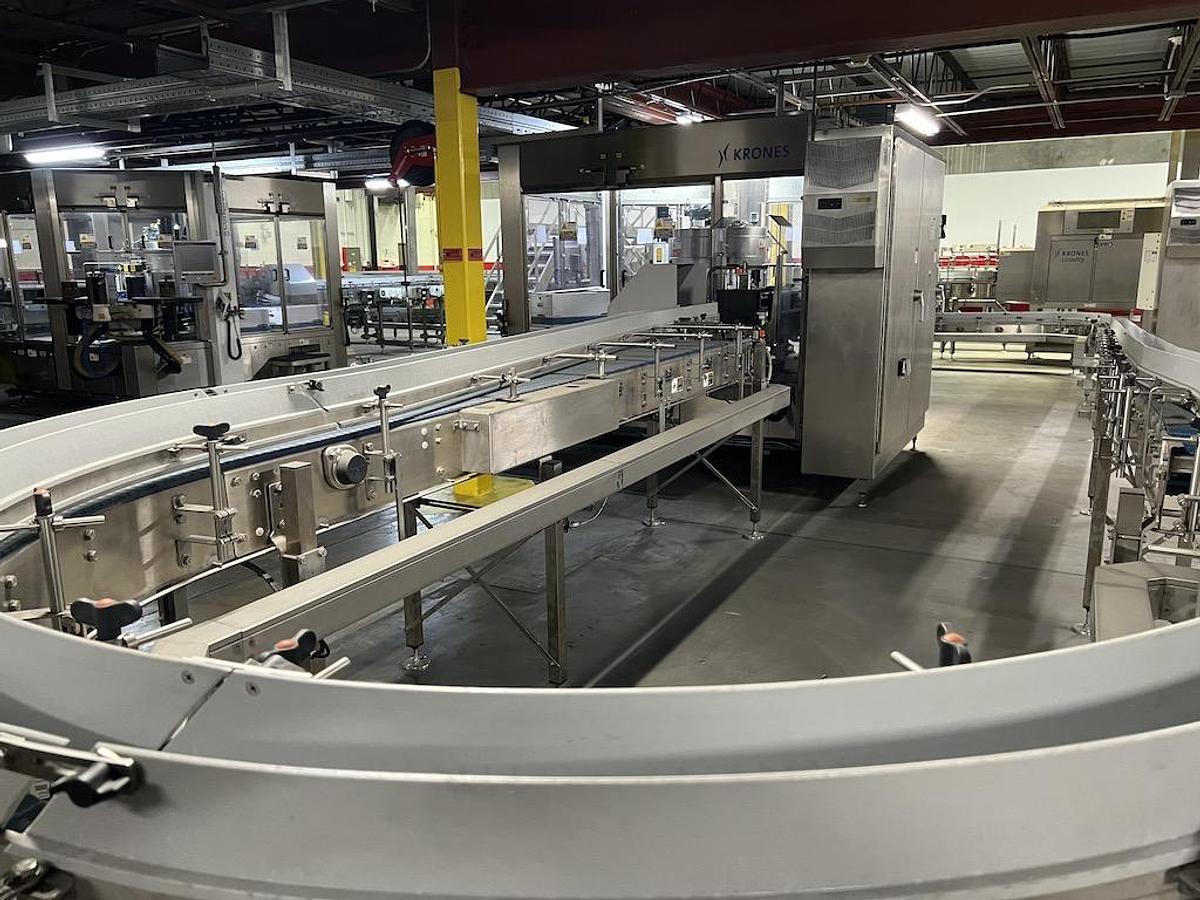

Krones Stainless Full Bottle Conveyor and Controls

Krones Full Case Conveyor from Packer discharge to palletizer infeed

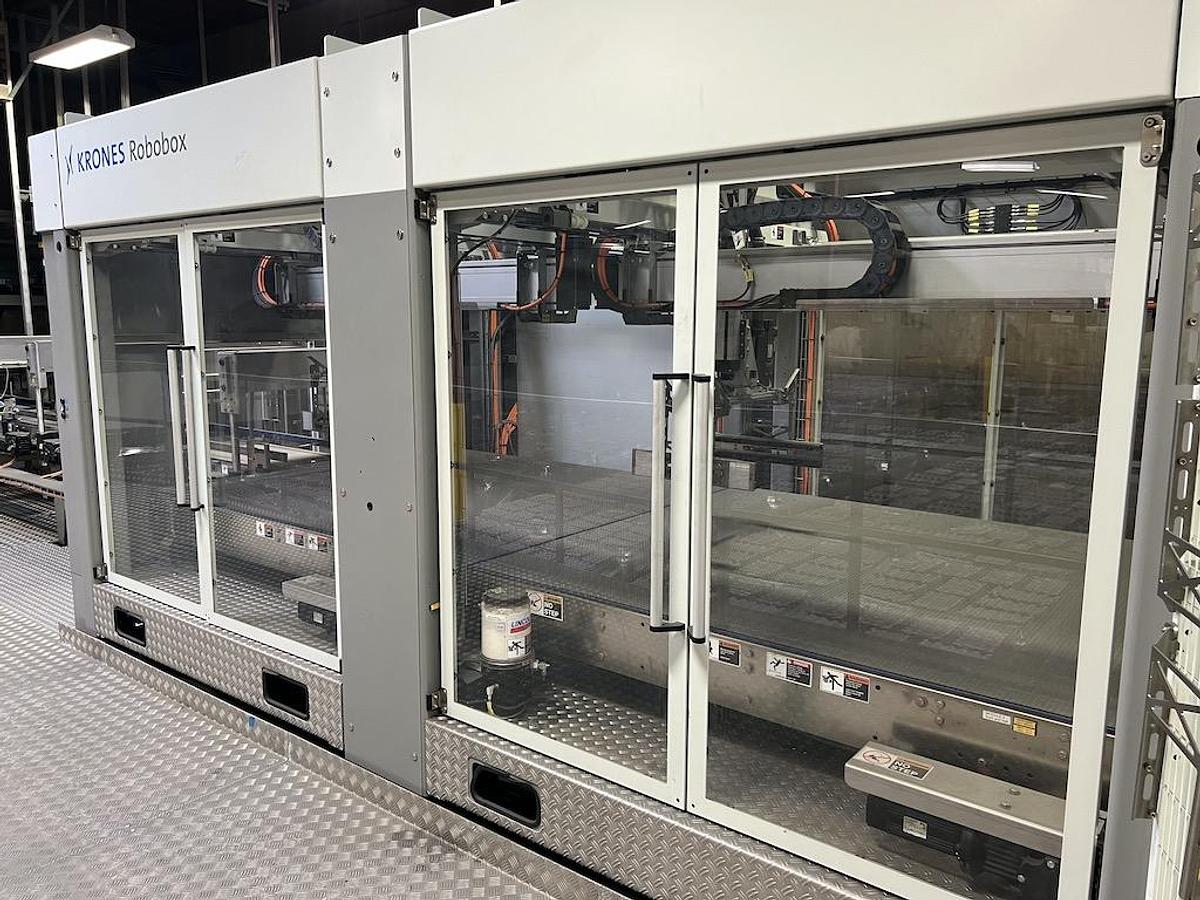

Krones Robobox Case Orienter

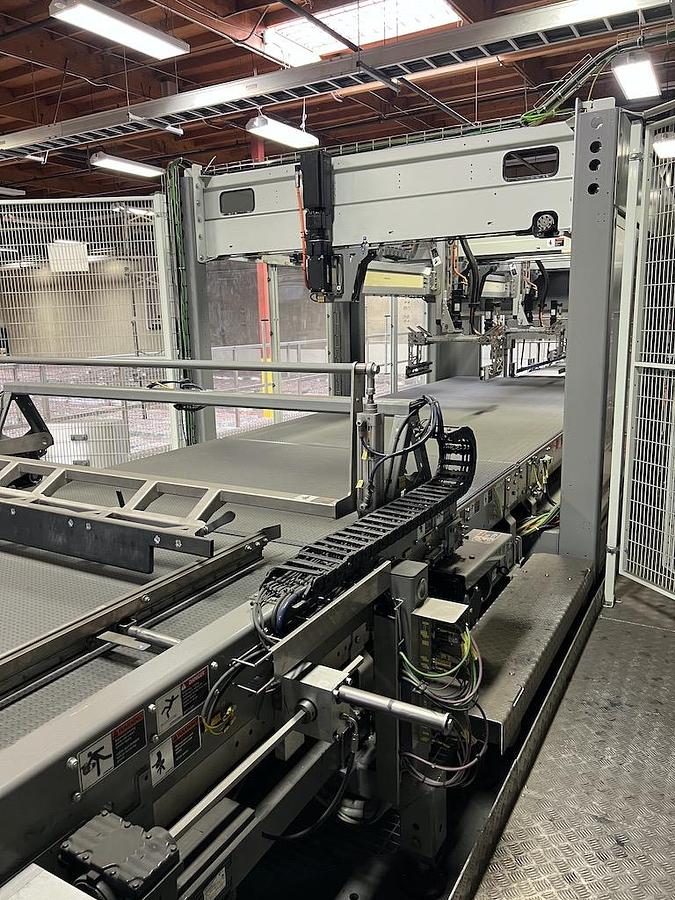

Krones Modulpal Case Palletizer

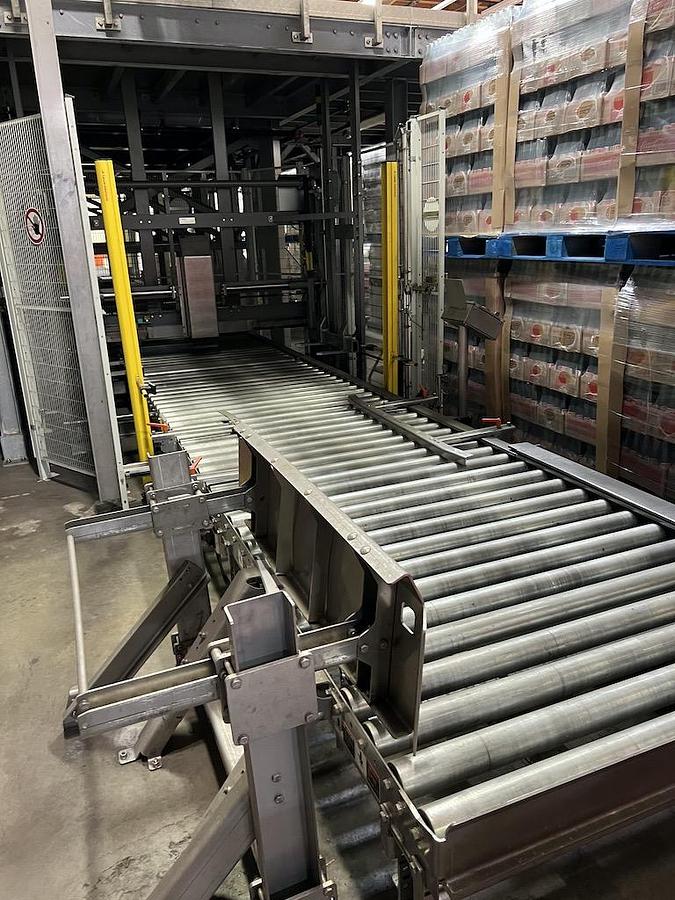

Krones Palco Full Pallet Discharge Roller Conveyor leading from Palletizer to Wrapper

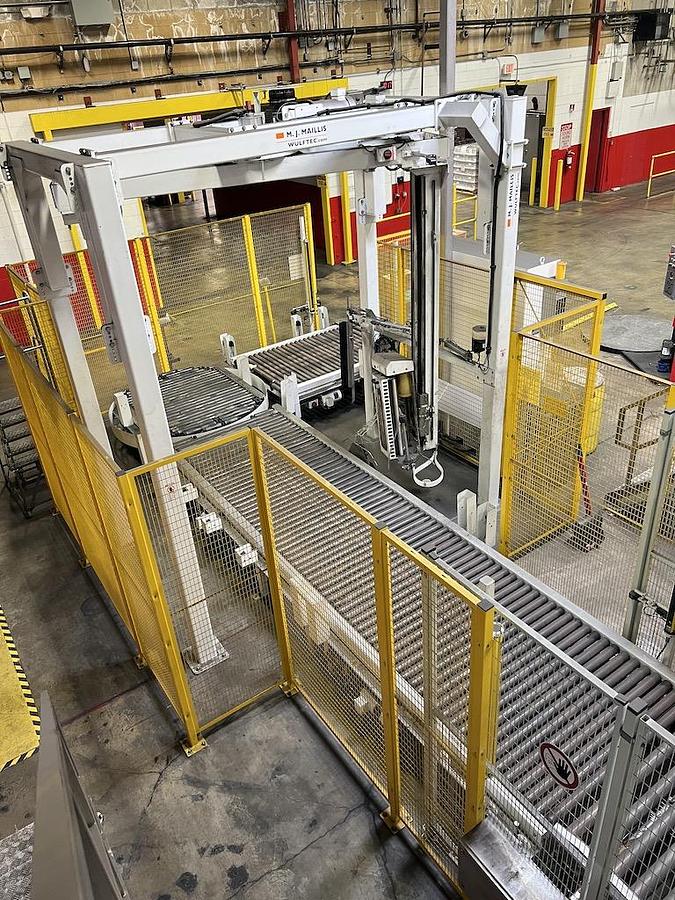

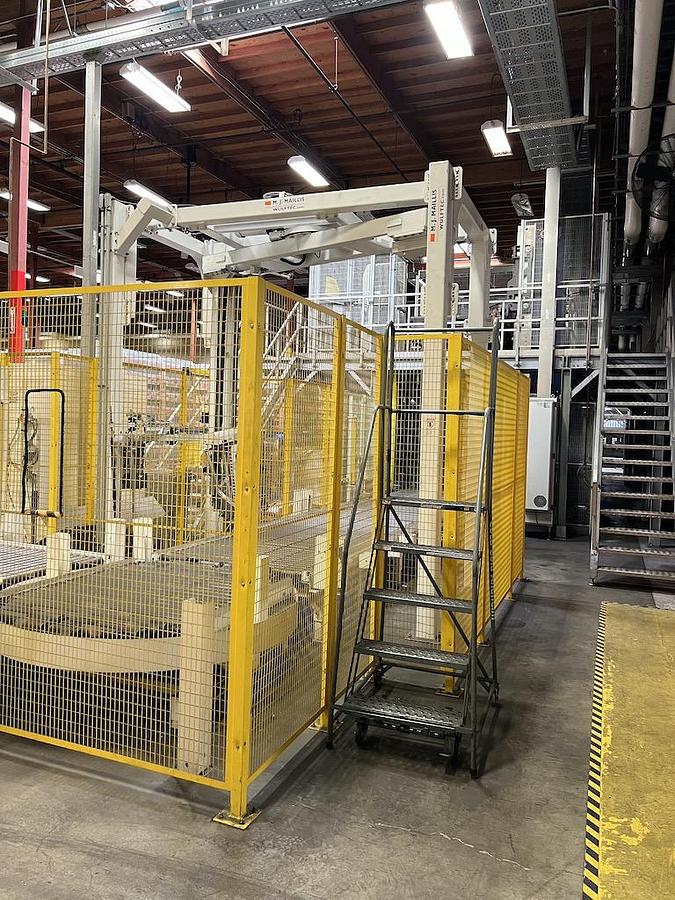

Wulftec Pallet Wrapper with Infeed and Discharge Pallet Conveyor, model WCRT-200

Ingersoll-Rand Low Pressure Compressor (Plant Air) model IRN100N-OF (VSD)

Ingersoll-Rand Low Pressure Receiver Tank and Air Dryer

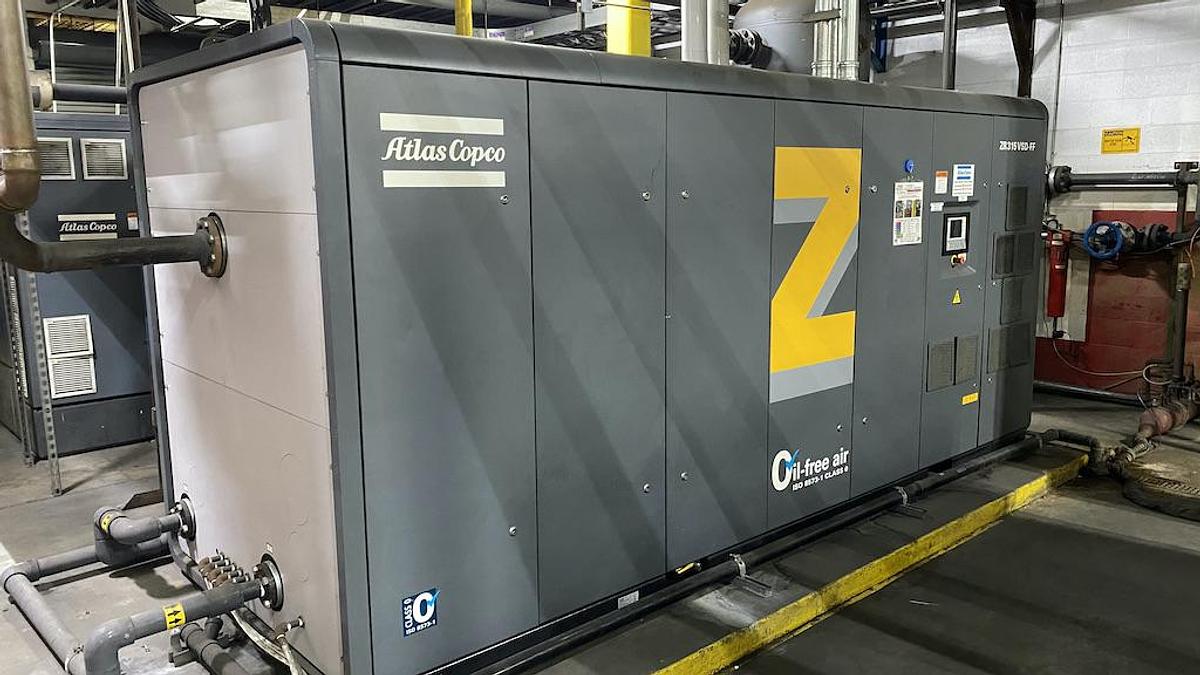

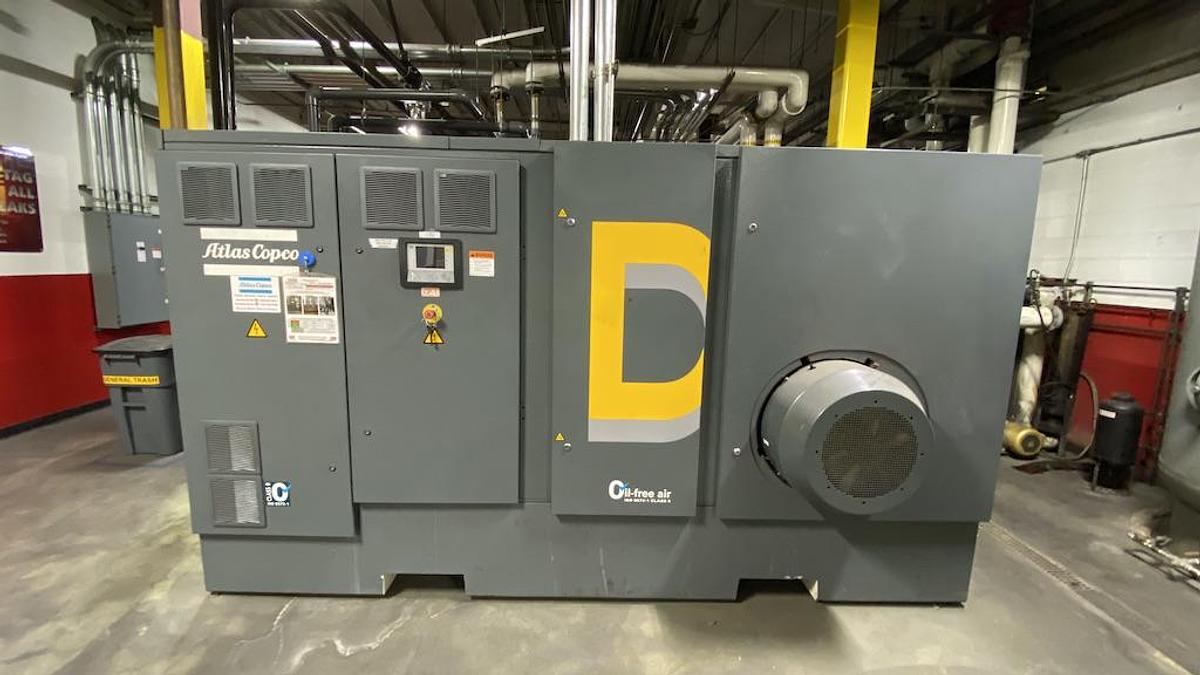

Atlas-Copco Low Pressure model ZR315VSDFF (paired with HPC-001)

Atlas-Copco High Pressure Air Compressor Booster

Manchester High Pressure Receiver model 303724-600 gal
