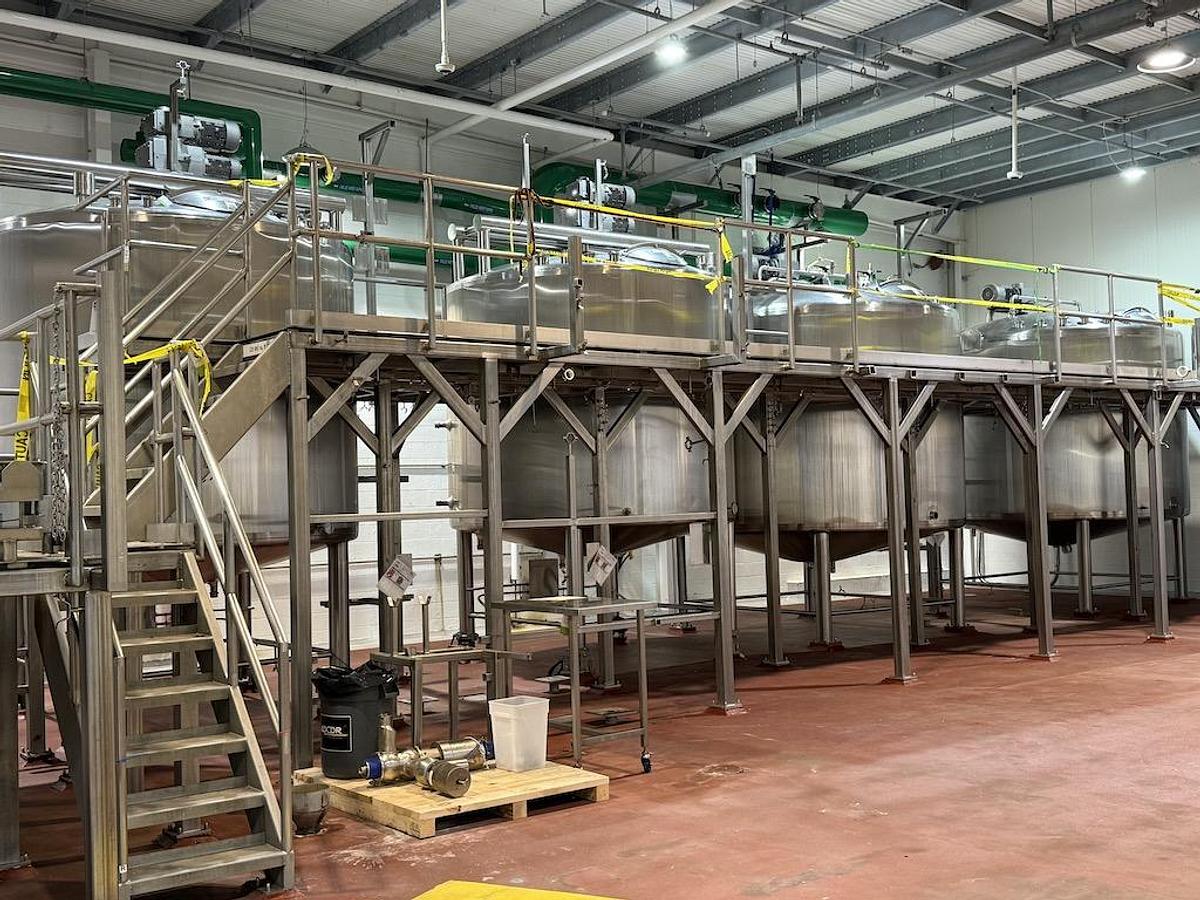

Walker 4,000 Gallon Mix Tanks, 316L Stainless Steel, Year 2018
Walker 4,000 Gallon Mix Tanks, 316L Stainless Steel, Year 2018
Available quantity:1
or
Call 610.683.5606
Description

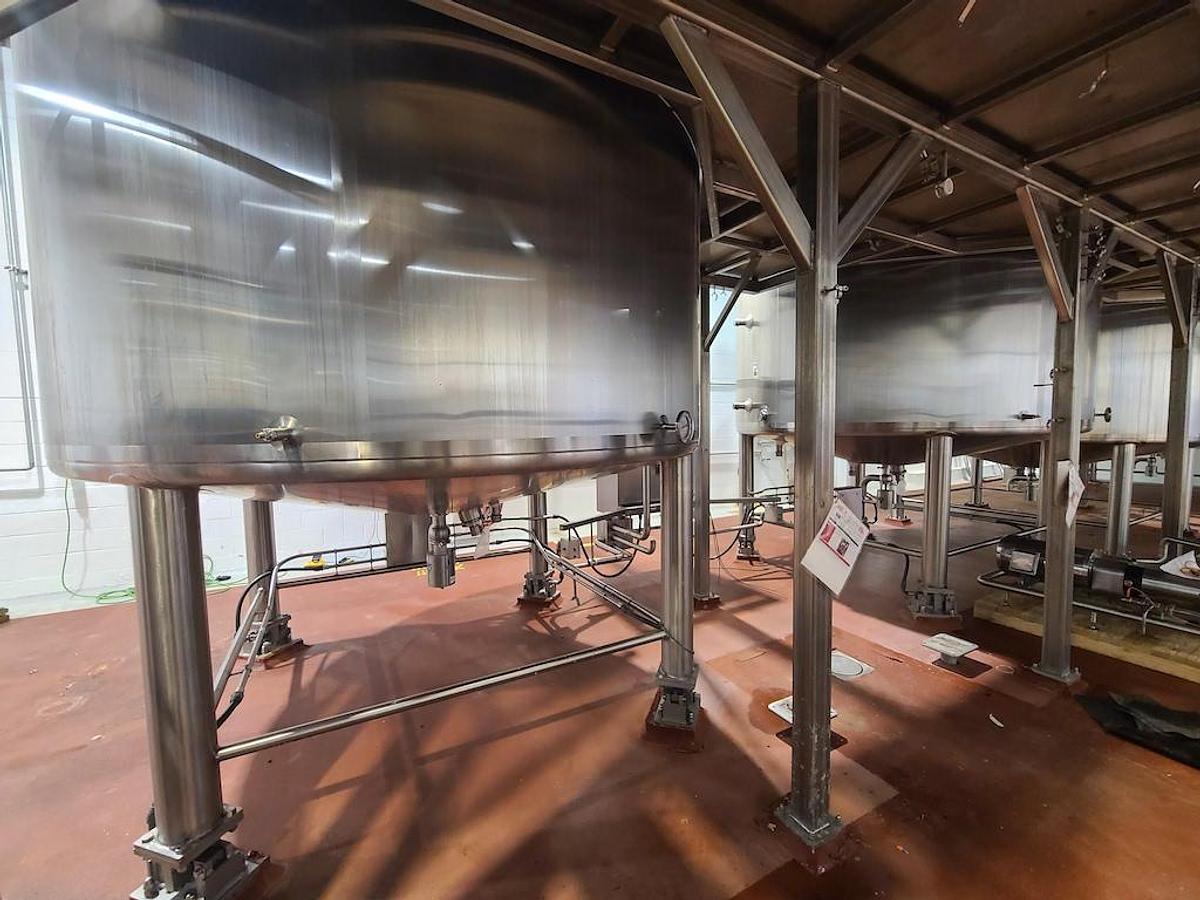

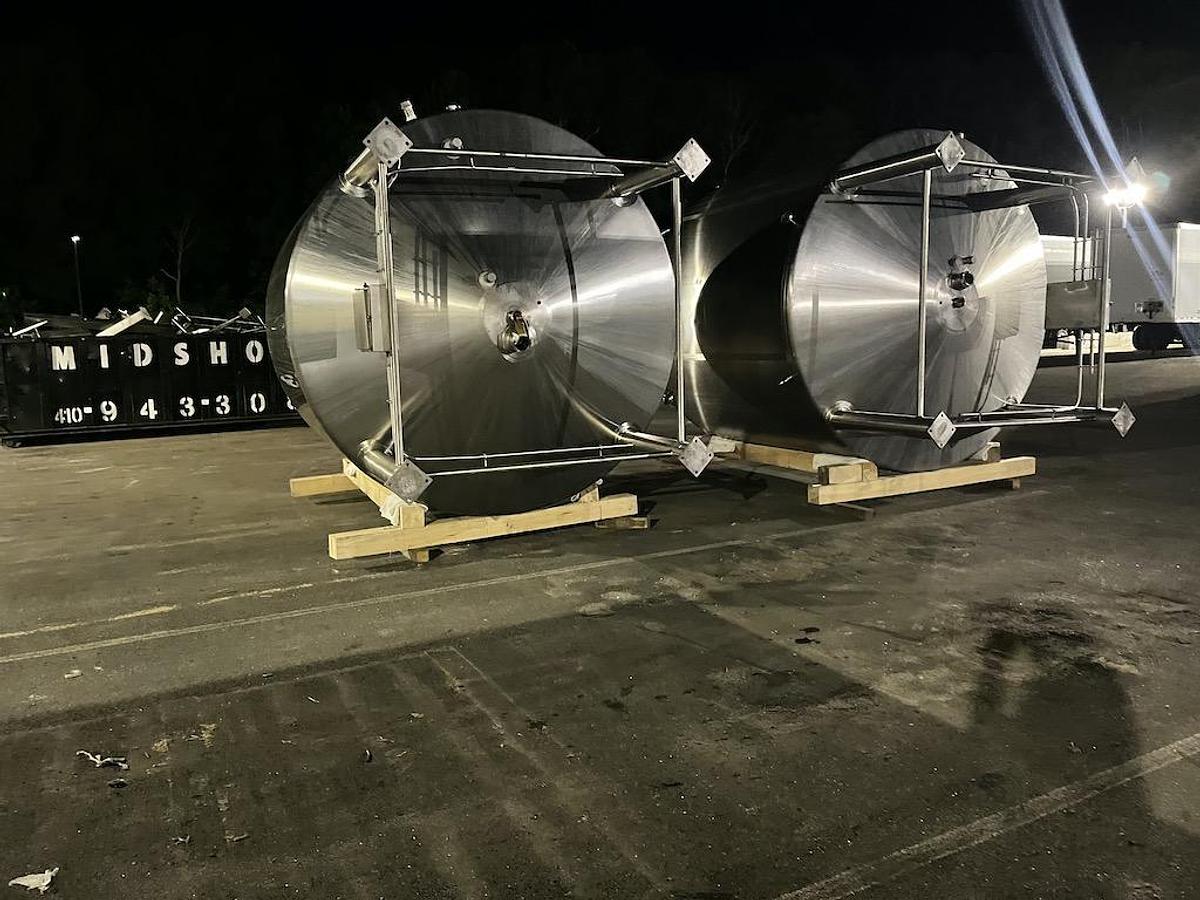

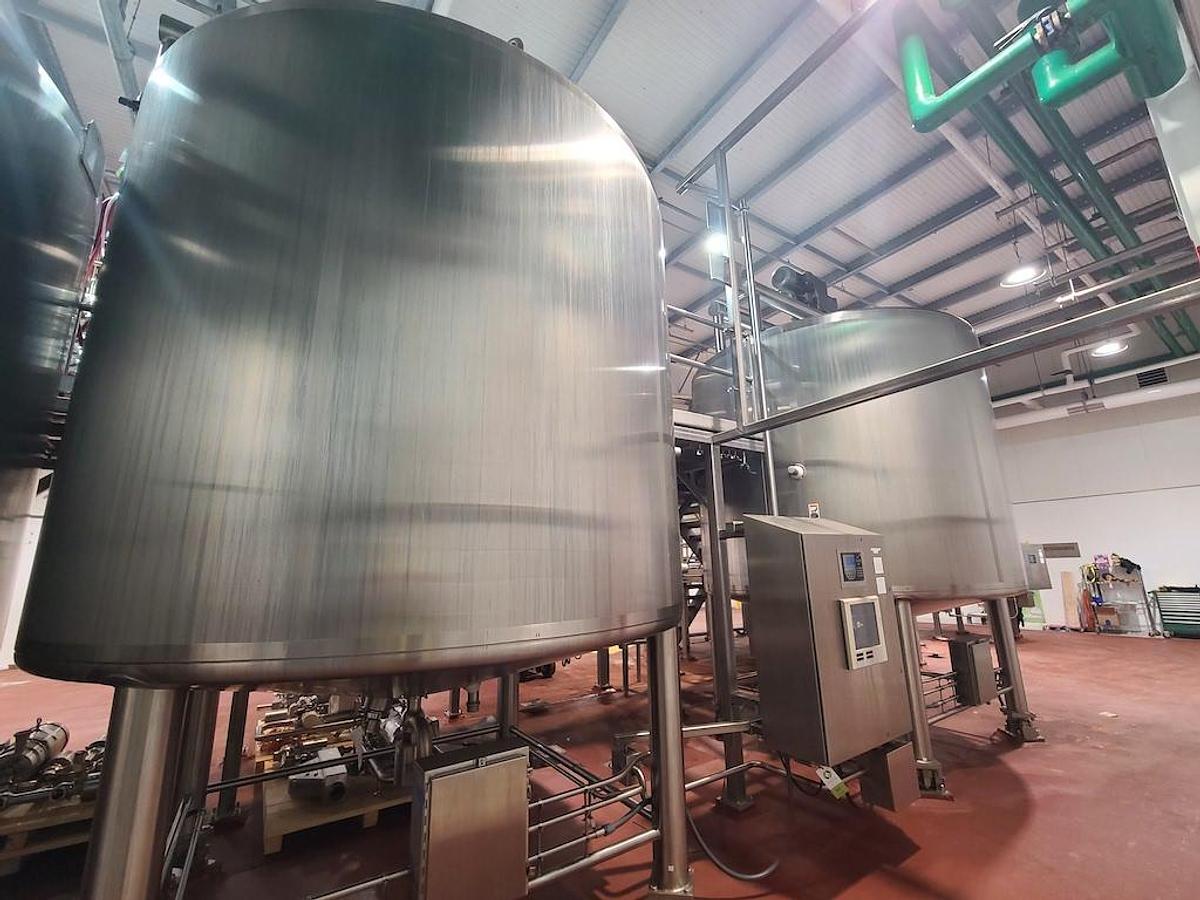

used Walker 4,000 Gallon Mix Tanks, 316L Stainless Steel, Year 2018, (2) available
Details:
Manufacturer: Walker Stainless Equipment Co
Model PZ-CB-CR
Capacity 4,000 Gallon
Material 316L Stainless Steel

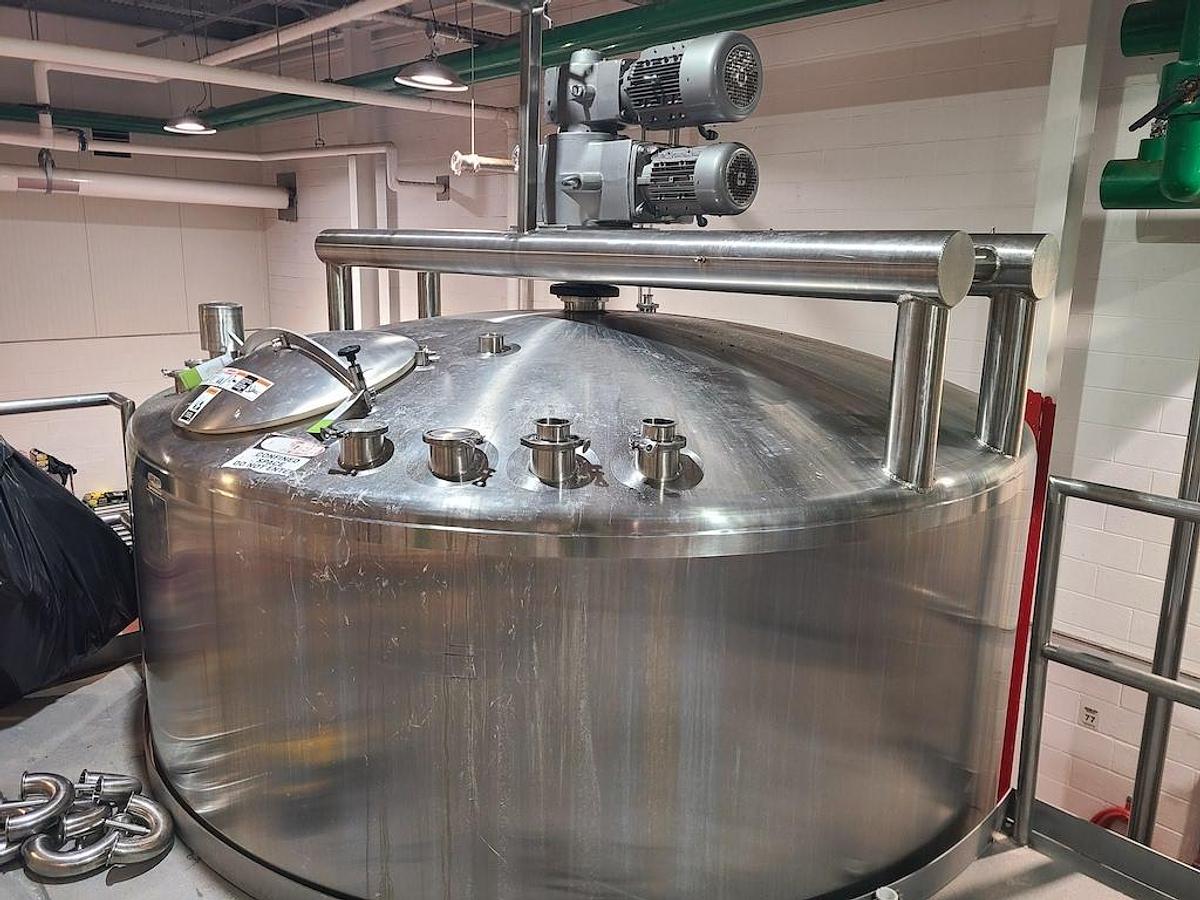

Vertical – Dome Top / Cone Bottom
Atmospheric at 200 degrees F.

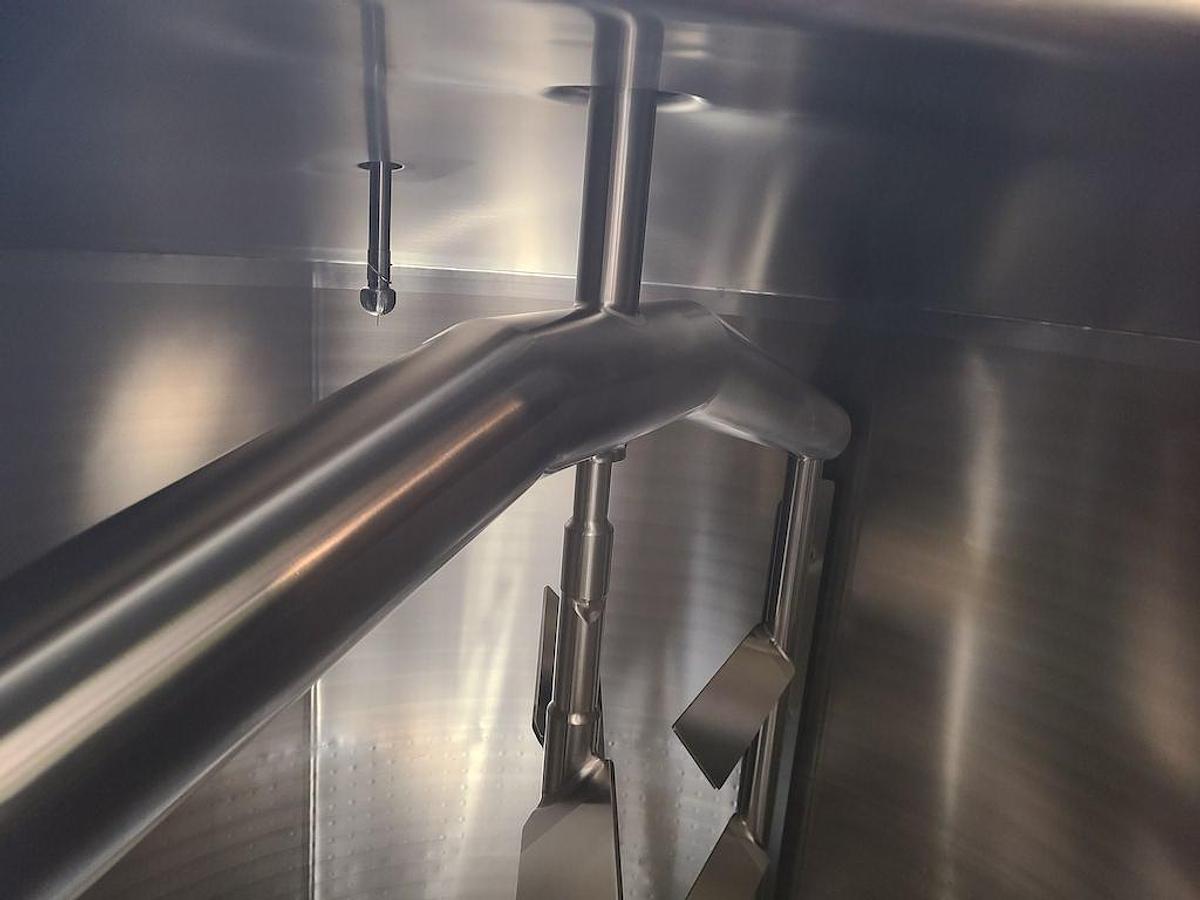

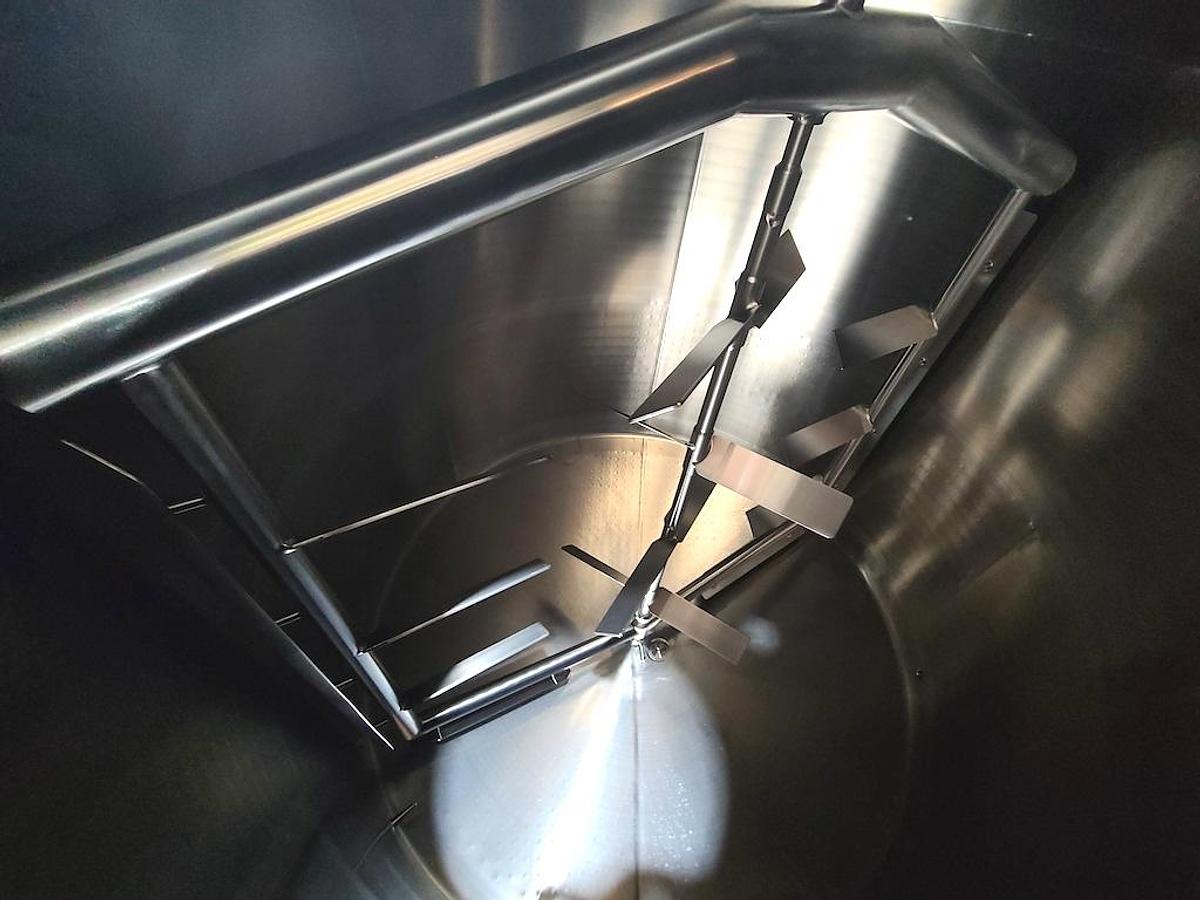

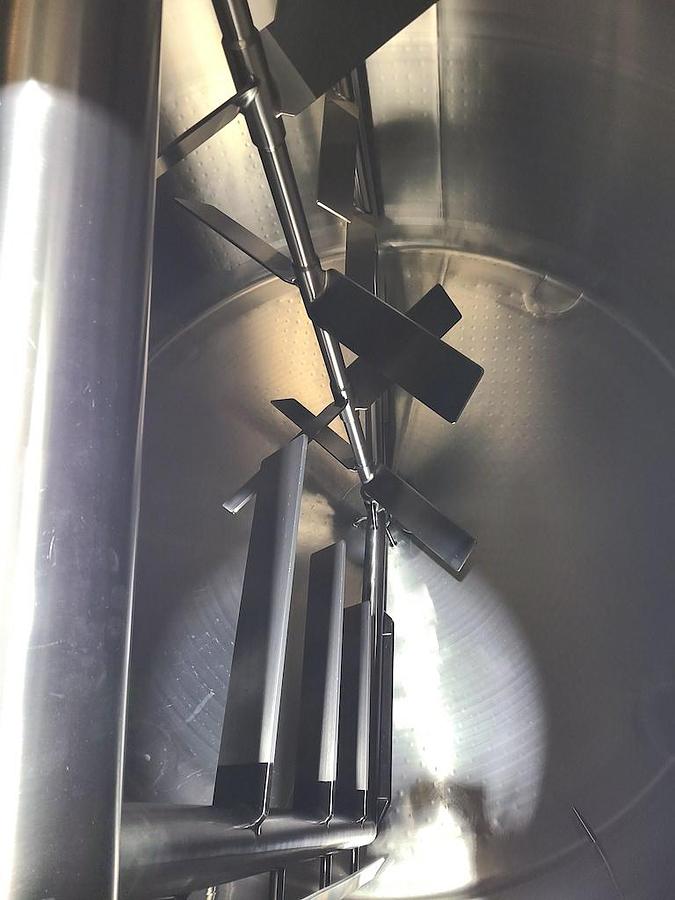

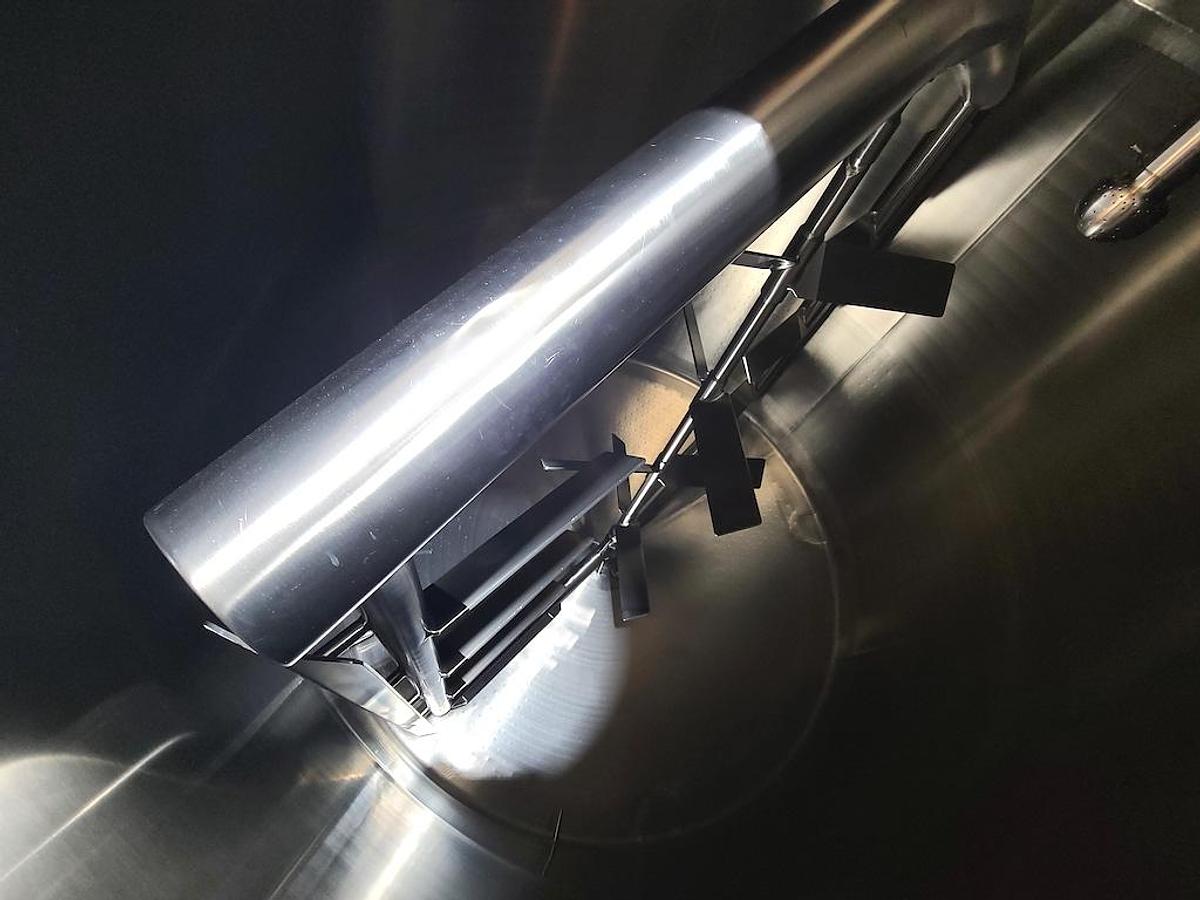

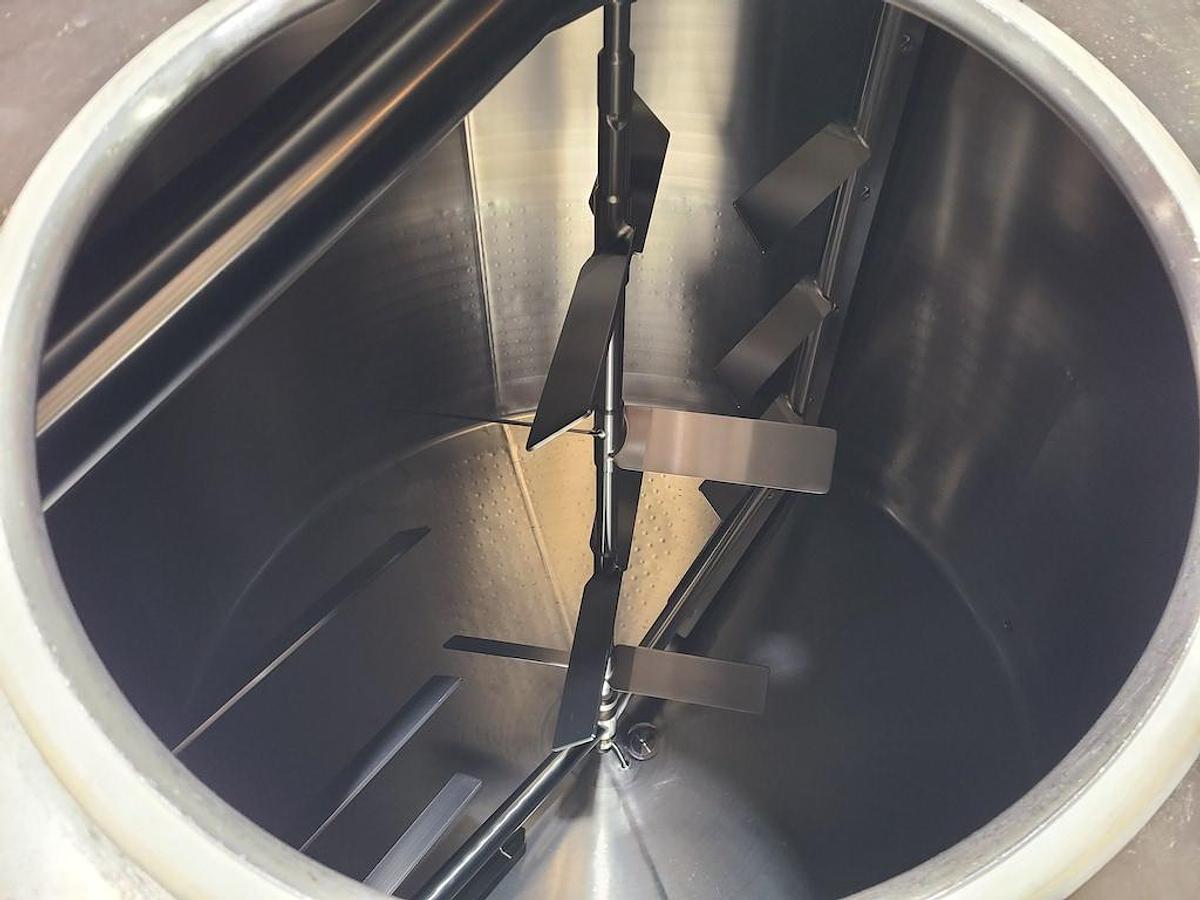

Top Agitation, Double Motion Sweep and (3) 2 prop agitator blades

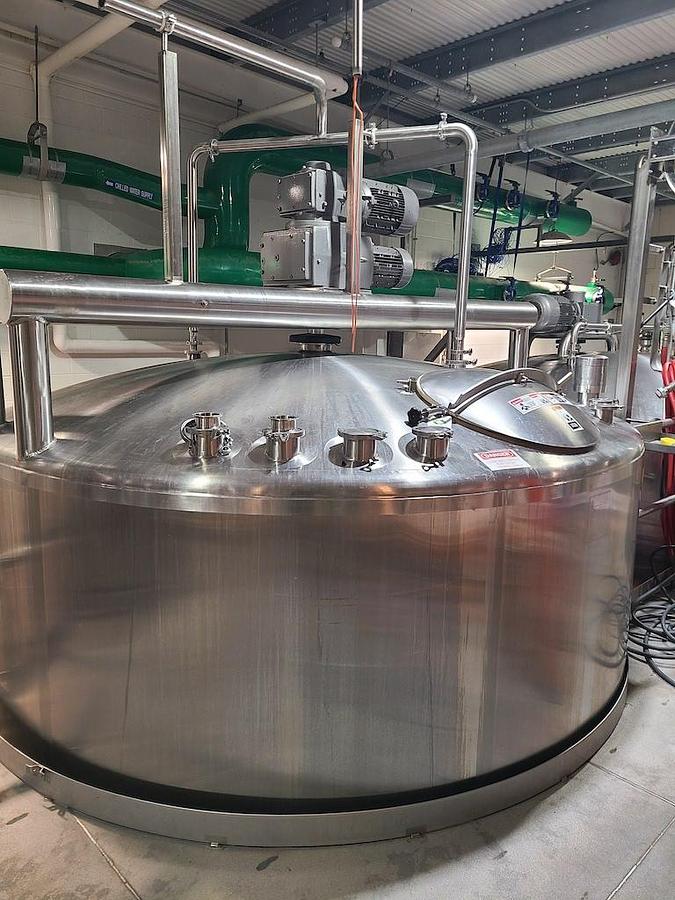

(4) 3.5" Tri-Clover Top Inlets
(1) 4" Breather

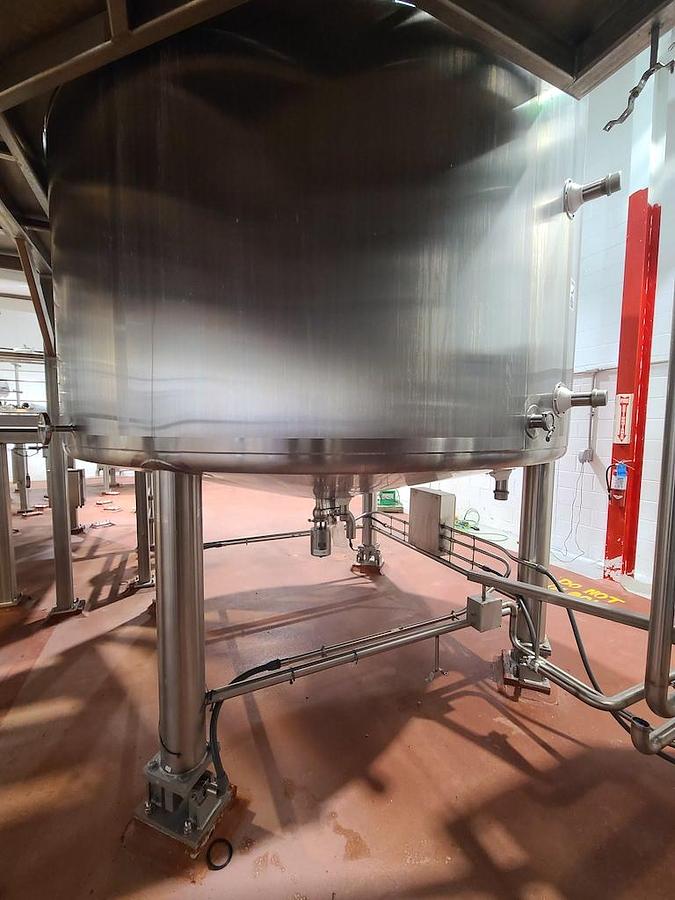

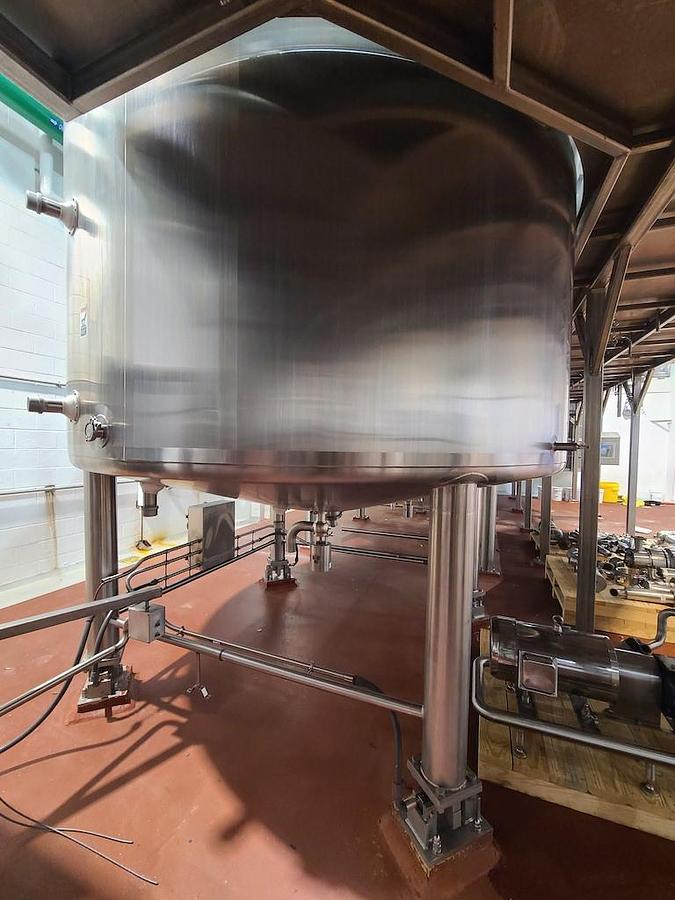

Mounted on (4) legs with Rice Lake Load Cells

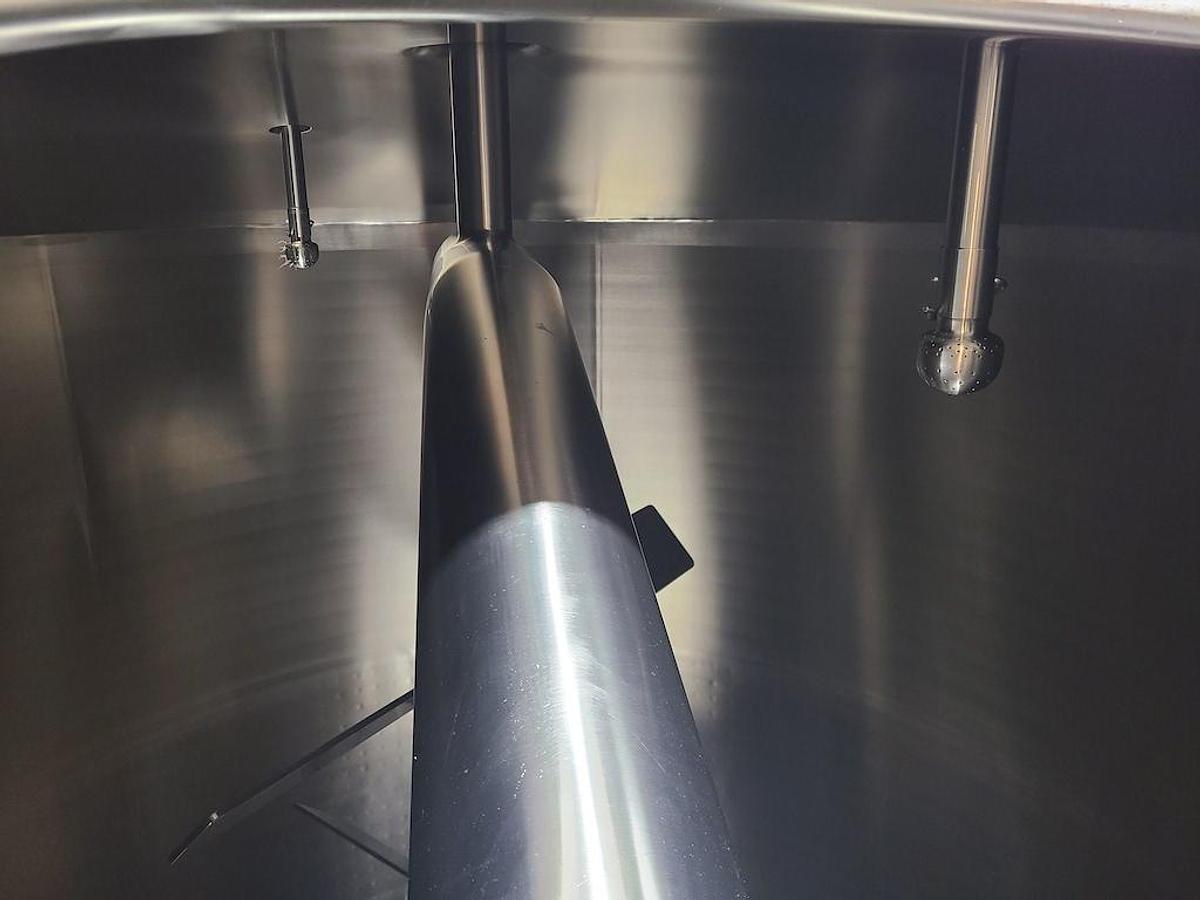

CIP Spray Balls
Top 20" Manway

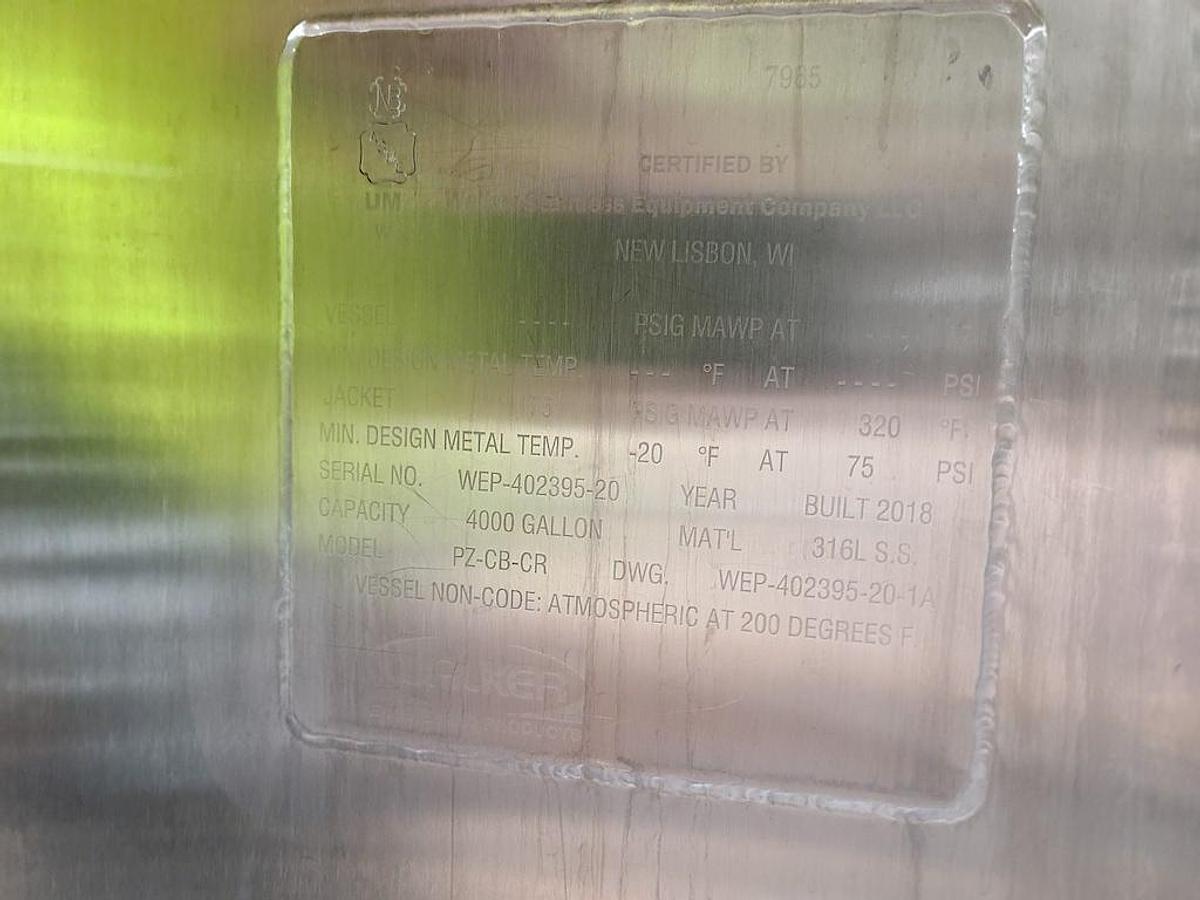

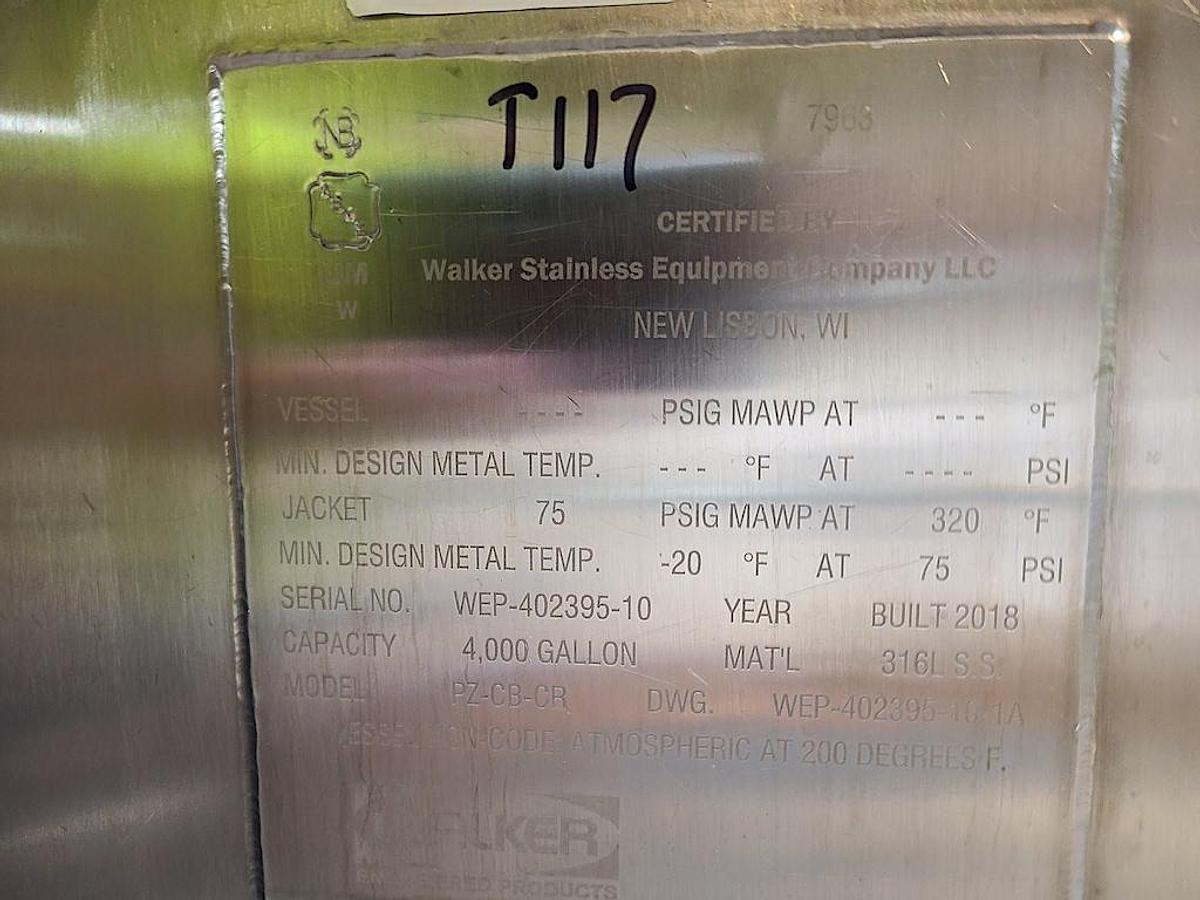

Jacketed sides & bottom / 75 psig MAWP at @ 320F, MDMT -20F @ 75 psi
Dimensions 10' diameter x 191" H (16 feet)
Heat Exchange Surface:
- Side Wall: 88 SQ FT
- Bottom Head: 58 SQ FT
Specifications
| Manufacturer | Walker Stainless Equipment |
| Model | PZ-CB-CR |
| Year | 2018 |
| Condition | Used |
| Serial Number | WEP-402395-10 & WEP-402395-20 |
| Stock Number | 250504 |
| * Side Wall | 88 SQ FT |
| * Bottom Head | 58 SQ FT |
