Hoppmann Cap Feeder

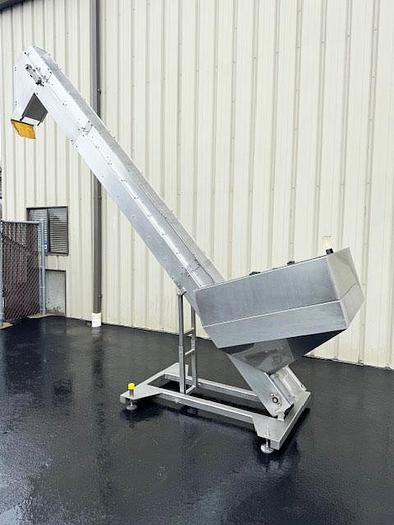

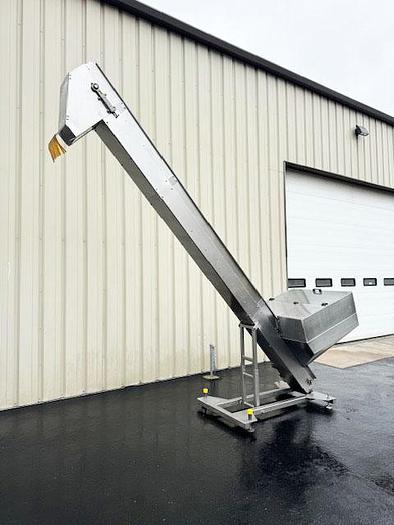

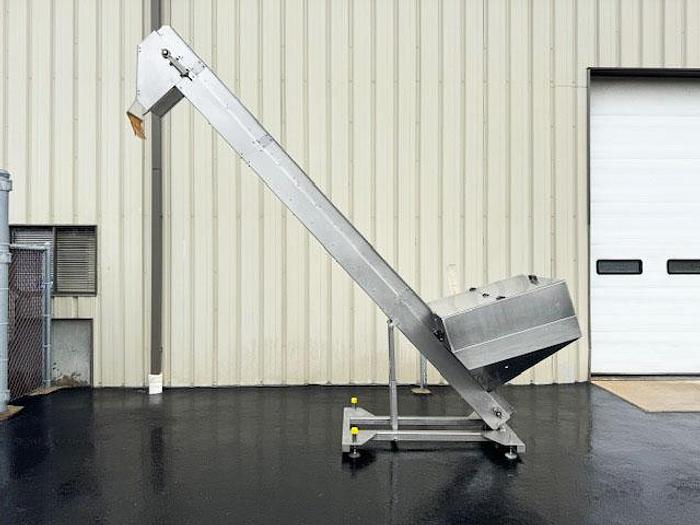

Used Cap Hopper Elevator - Cap Feeder

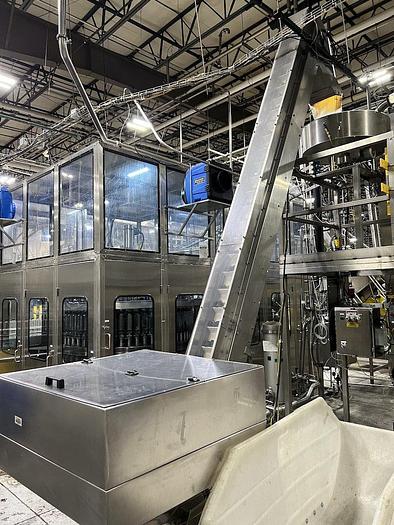

This Cap Hopper Elevator Cap Feeder combines the functions of cap storage and cap elevation. The Cap Feeder has low space requirements, while cap replenishment takes place at floor level height, ensuring operator safety. It is capable of running plastic flat caps, sport caps and metal caps. This was last running plastic screw cap size 28mm using pleated belt to feed caps into the cap selector and onto the capper.


Approximately 30 ft.³ capacity

Stainless steel construction

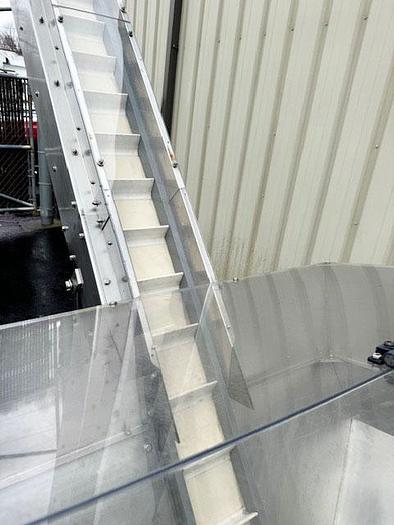

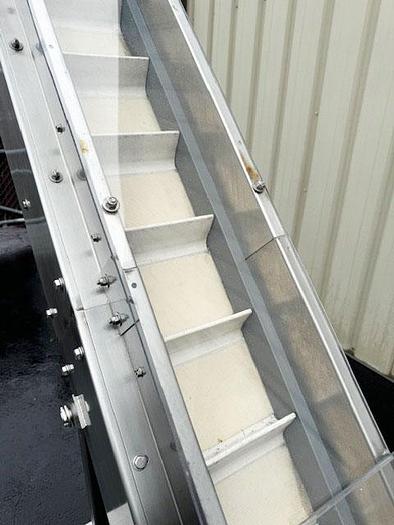

6 inch wide cleated built with 2 inch cleats, 6 inch on center

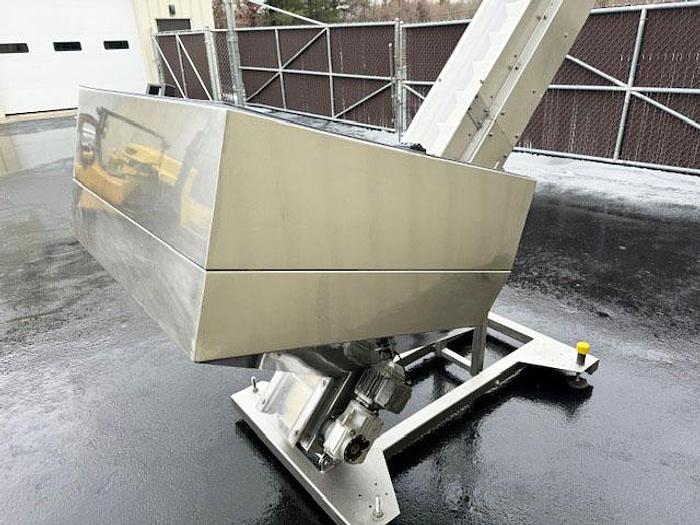

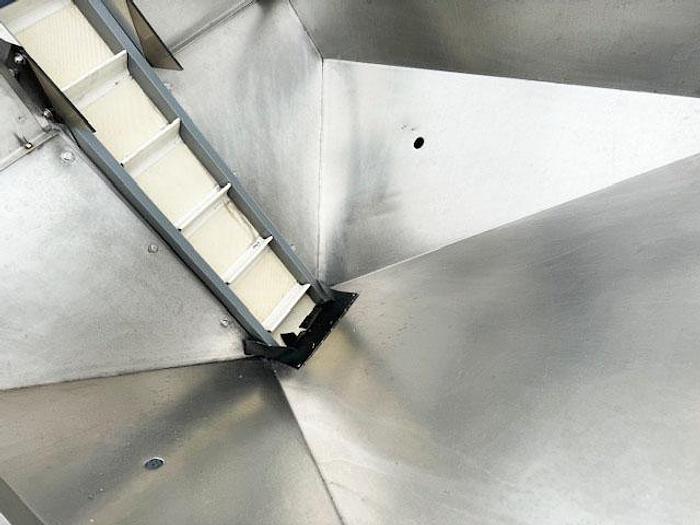

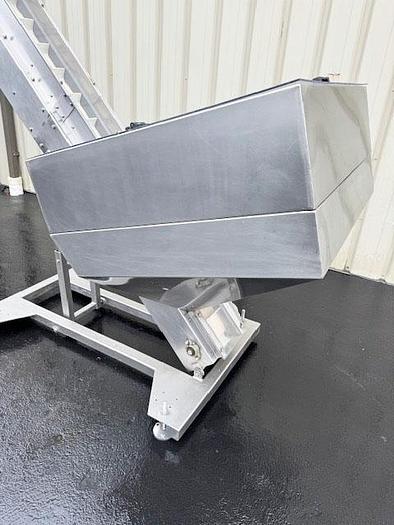

Stainless steel cap hopper 42 inches long by 42 inches wide by 36 inches deep

Dimensions floor to cap discharge height 134 inches, is adjustable

Dimensions floor to hopper 48 inches

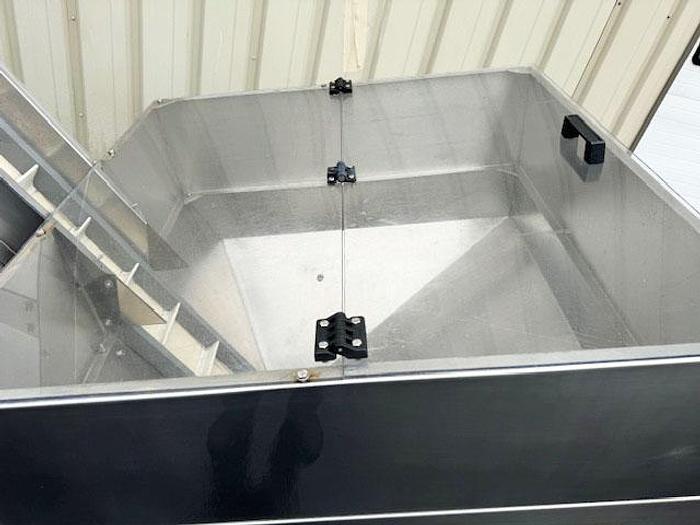

Clear Lexan hopper cover, hinged

Multiple position adjustable tilt base frame

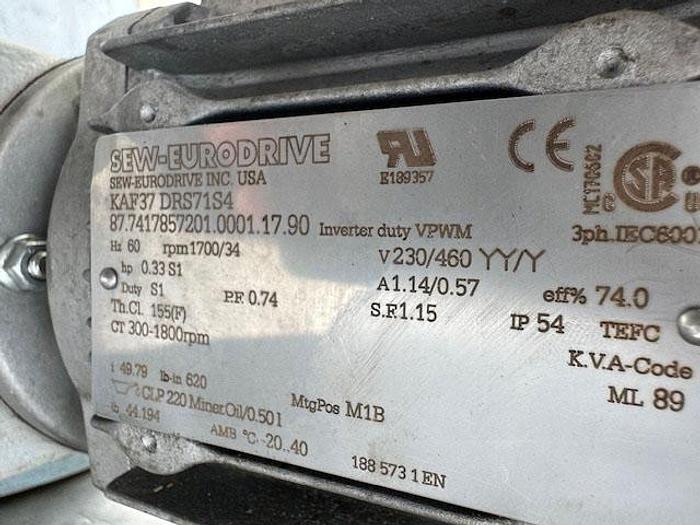

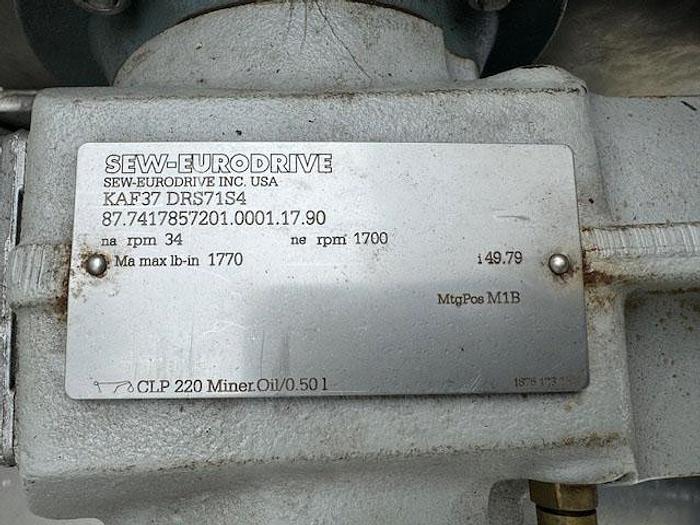

SEW-Euro drive .33 HP drive motor, 0 - 1800 RPM with SEW EuroDrive

Electrical 230/460 V, 3 phase, 60 Hz, 1.14/0.57 AMP

Mild steel painted floor base with (4) threaded leg levelers

Overall dimensions 144 inches long by 44 inches wide by 168 inches high

Condition: used


Model30 Cubic Feet Capacity
Stock Number240707
