Quadrel Pressure Sensitive Labeler

Quadrel Pressure Sensitive Labeler

Available quantity:1

orCall 610.683.5606

Description

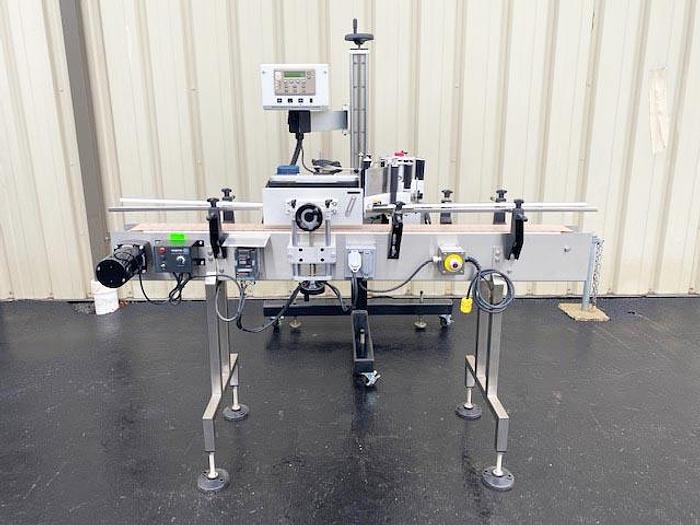

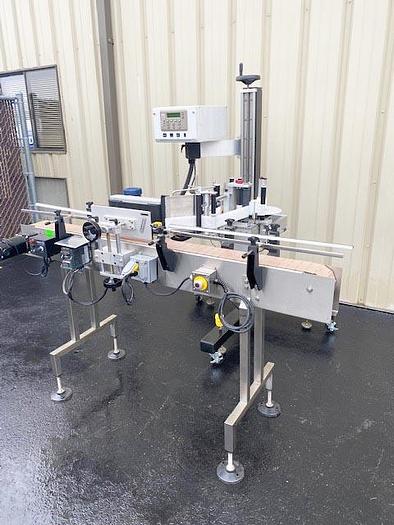

Quadrel Pressure Sensitive Labeler

Self Adhesive Labeler with Wrap Station & Conveyor


Specifically developed for industries such as dairies and water bottling plants in harsh environments, Quadrel’s ML 60 precisely and reliably applies side-panel labels to various sizes of rectangular products at speeds up to 300 products per minute. Quadrel’s ML 60 labeling system comes standard with a servo driven label applicator and color touchscreen HMI. The H-base stand has vertical and horizontal lead screw adjustments and a stainless steel support for easy positioning above an existing conveyor.


Details & Benefits:

- Model Number ML-60

- Serial Number 81537-01

- Manufacture Date 10/2014

- Manufacturer: Quadrel Labeling Systems, Mentor Ohio

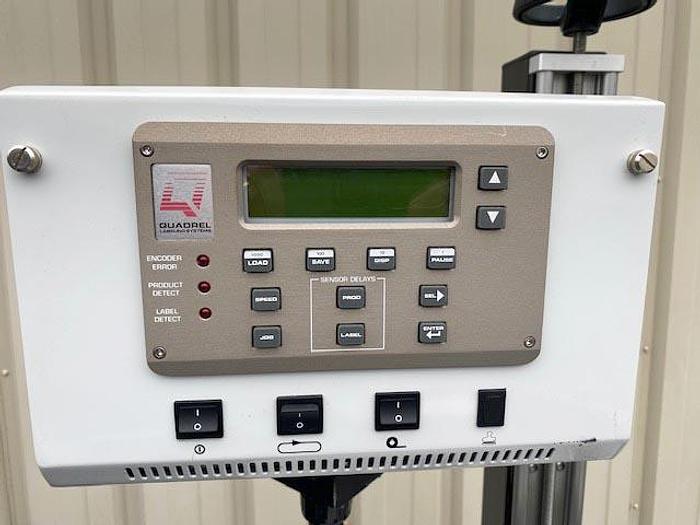

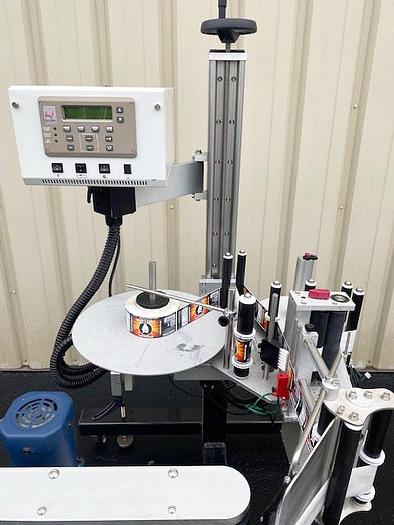

- Quadrel Q60/Q65 LH Labeling Head with M2 Controller

- Right to Left Product Flow

- Capable of applying up to 7.5” tall labels

- Label Peel Plate 7.75” Tall

- Wipe On Label Application

- Label Roll Unwind Position #3

- Label Rolls with 3” Core, 13” Diameter

- Banner Product Sensor

- Leuze GS061/66-5 Label Sensor

- Adjustable “T” Stand for Height, Horizontal, Tilt

- “T” Stand with (3) Casters and (3) Threaded Leveler Legs

- Electrical 110 Volt, 1 Ph, 60 Hz,

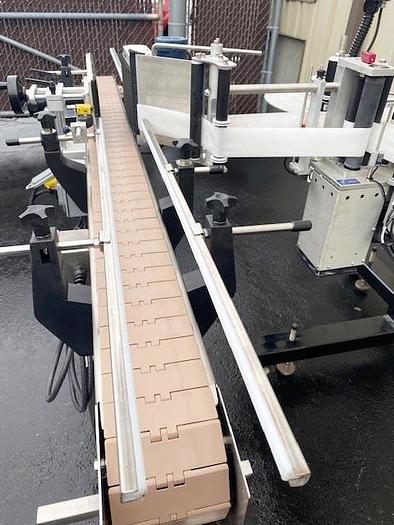

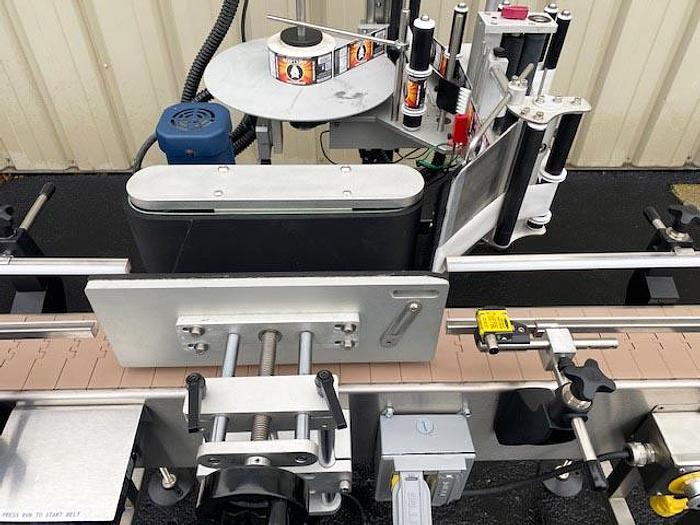

- Includes a 4.5” Wide x 72” Long Stainless Steel Conveyor

- Plastic Conveyor Belt Chain

- Adjustable Conveyor Guide Rails

- Conveyor Elevation 37.5” (adjustable)

- Threaded Leveler Legs (Conveyor)

- Variable Speed Control (Conveyor)

- E-Stop (Conveyor)

- Electrical 110 Volt, 1 Ph, 60 Hz (Labeler)

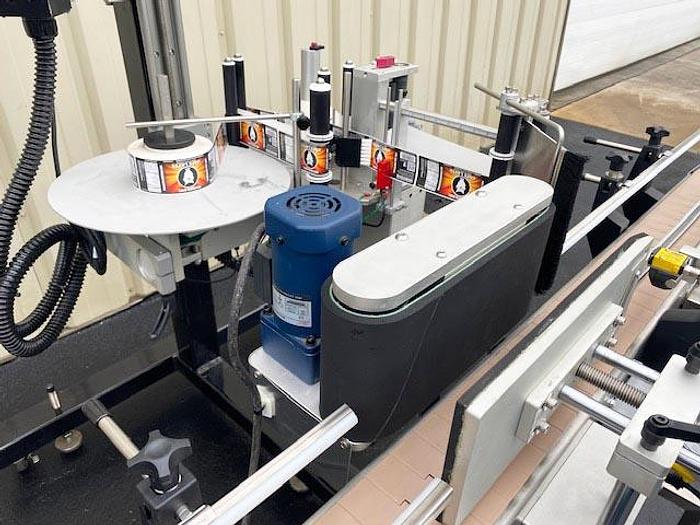

- Powered Label Wrap Station 15” L x 6” H with Foam Backing Plate

- Variable Speed Control (Wrap Station)

- Electrical 110 Volt, 1 Ph, 60 Hz (Wrap Station)

- Height Adjustable Bracket (Wrap Station)

- Overall Dimensions 72” L x 62” W x 73” H

- Condition: Used, Shop Tested


Specifications

ManufacturerQuadrel Labeling Systems
ModelML-60
Year2014
ConditionUsed
Serial Number81537-01
Stock Number231211
