ADCO Carton Former

No longer available

ADCO Carton Former

Available quantity: 1

Description

ADCO Carton Erector Used ADCO Dual Mandrel Carton Former Model AF25-2 EC

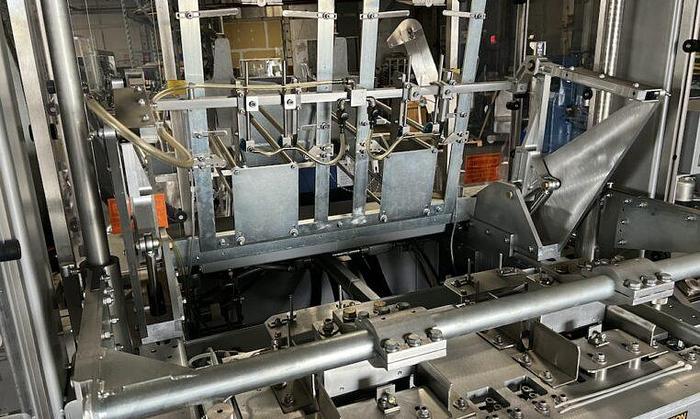

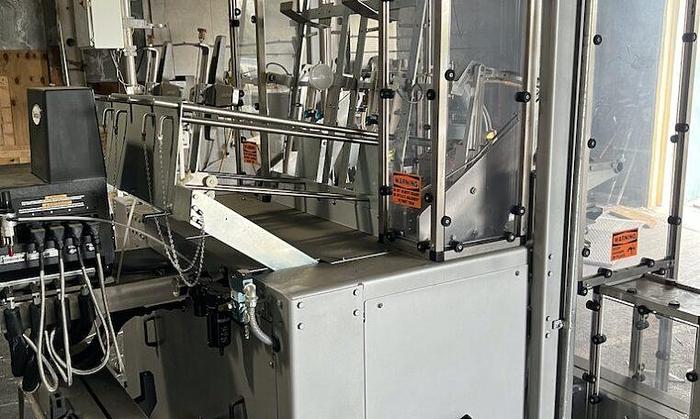

Used ADCO Dual Mandrel Carton Former Model AF25-2 EC forms trays from simple die-cut blank. Tray planks are loaded into an incline hopper where the blanks are picked by vacuum cups mounted on a reciprocating mechanical arm. The arm places the blanks on the forming frame and the plunger punches the blank through the forming frame as glue is applied. The tabs, corner posts, end panels, and lid are folded up and pressed into place to make a finished tray. Tray are then blown off of the plunger by a blast of air. The finished carton falls onto the out-feed conveyor. This Carton Former was never used and on original factory skid.

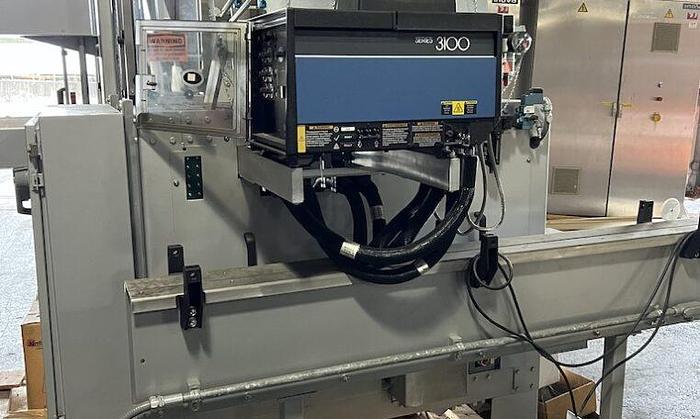

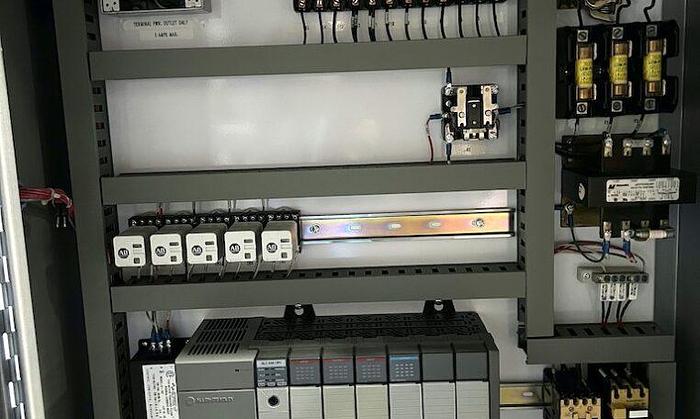

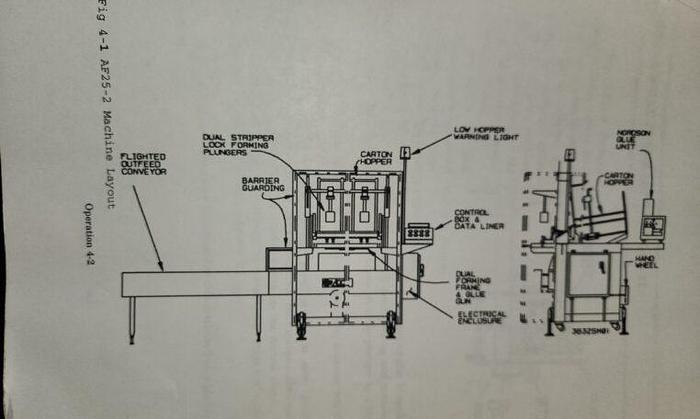

Features and Benefits: – Serial Number 3632HG – Processor AB 5/04 PLC – Electrics 460V/3/60 25 amps – Control circuit 120V/1/60 – Nordson 3100 hot glue system – Rated up to 60 cycles per minute x 2 = 120 cpm – Duel forming heads – Includes 6 foot discharge conveyor – Manual and spare parts included

Specifications

ManufacturerADCO MANUFACTURING
ModelAF25-2 EC
Year1997
ConditionUsed
Serial Number3632HG
Stock Number230908
Model numberAF25-2 EC
