McBrady Bottle Rinser

No longer available

McBrady Bottle Rinser

Available quantity: 1

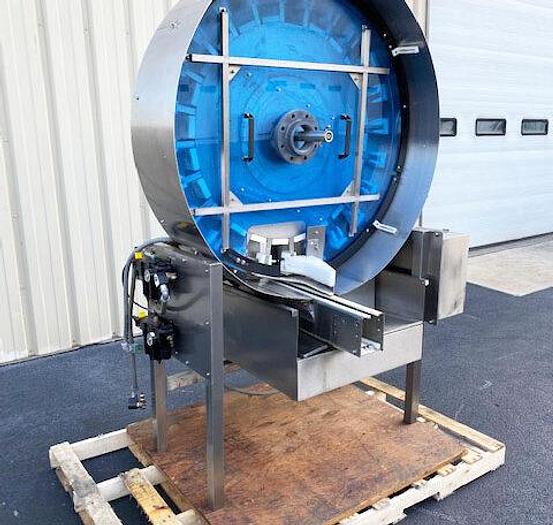

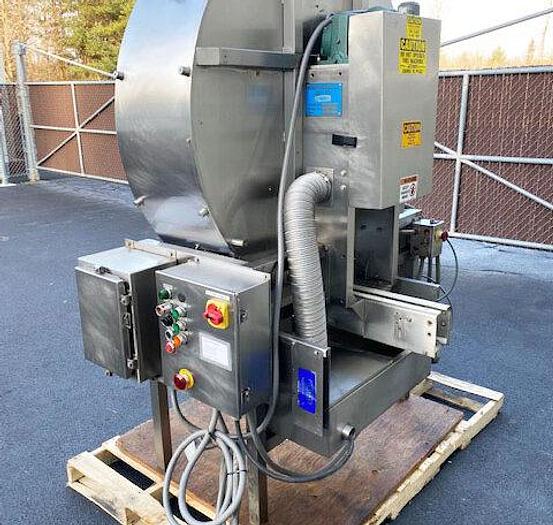

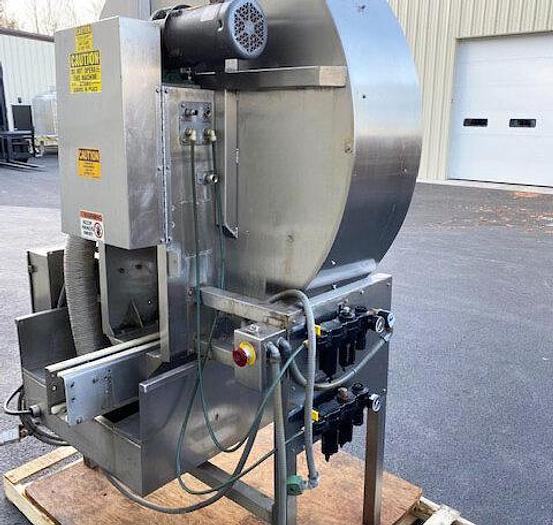

McBrady Bottle Rinser McBrady Model 100 Orbital Bottle Rinser Cleaner

The McBrady Bottle Rinser design allows it to mount over your existing conveyor, leaving a small footprint and simple integration into the your bottling line. Direct tube injection of air, liquid, steam or gas is utilized to thoroughly clean the inside of the bottle. This rinsing machine is also the perfect tool for gas purging/flushing in the inside of new wine bottles prior to filling. This is a great cleaner for those looking to conserve space in your line.

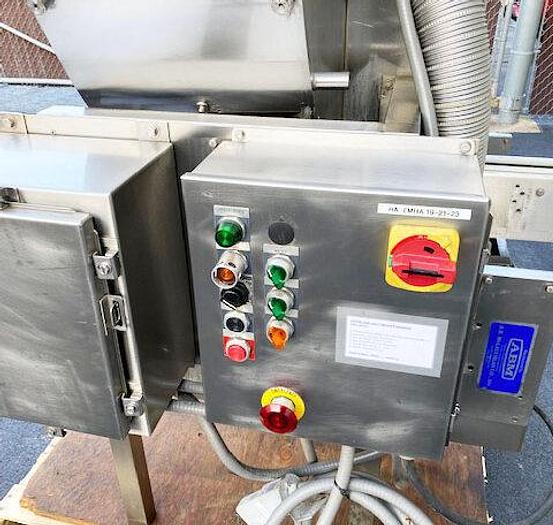

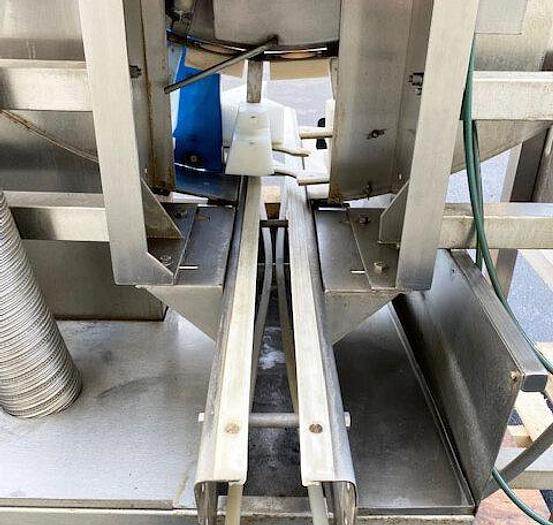

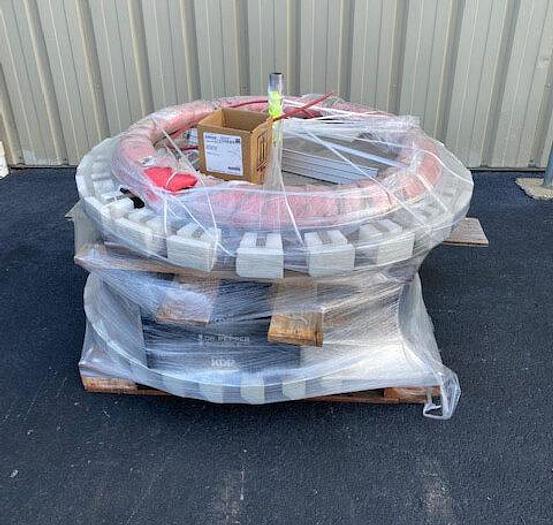

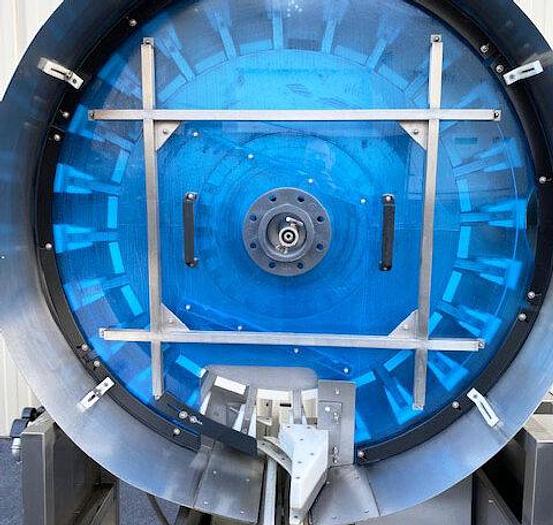

Features: – Model Number 100 – Serial Number WS54-11122 – Internal rinsing of glass, metal, plastic or composite containers and bottles – Rinse water is injected thru individual stainless steel tubes inserted into the neck of each bottle or container. – After rinsing, the bottles can be air rinsed to assist in draining. – Stainless Steel Construction – Water Rinse, Air Rinse or combination of both – 54-Inch Drum Diameter – Factory Rated Speeds up to 100 – 120 CPM (approx.), based on product specifications – Includes (3) Sets Existing Bottle Change Parts for 2” diameter, 2.5” diameter, 3.25” diameter containers – Easy Changeover – 4.5” Wide x 48” Long Pull Through S/S Bottle Conveyor Section – Stainless Steel Drip Collection Pan – Air Regulator Assembly – Operator Controls with E-Stop – Variable Speed – Allen Bradley Product Sensors – Electrical 480 Volt, 1 Ph, 60 Hz, – 32” Conveyor Elevation (adjustable) – Threaded Leveler Legs


ManufacturerMcBrady Engineering
Serial NumberWS54-11122
Stock Number230913
Overall dimensions60” Long x 48” Wide x 84” High
