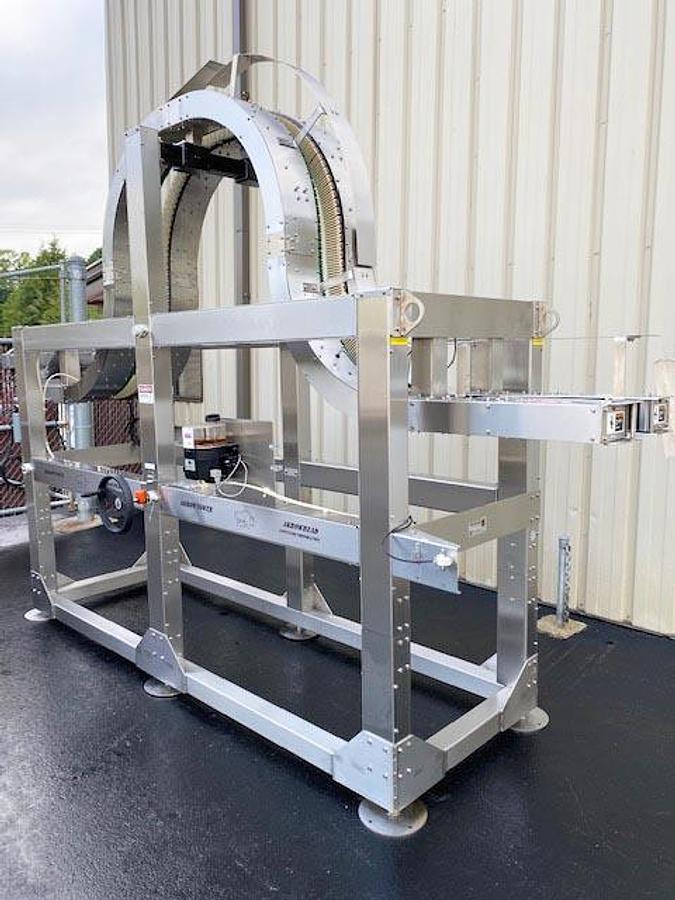

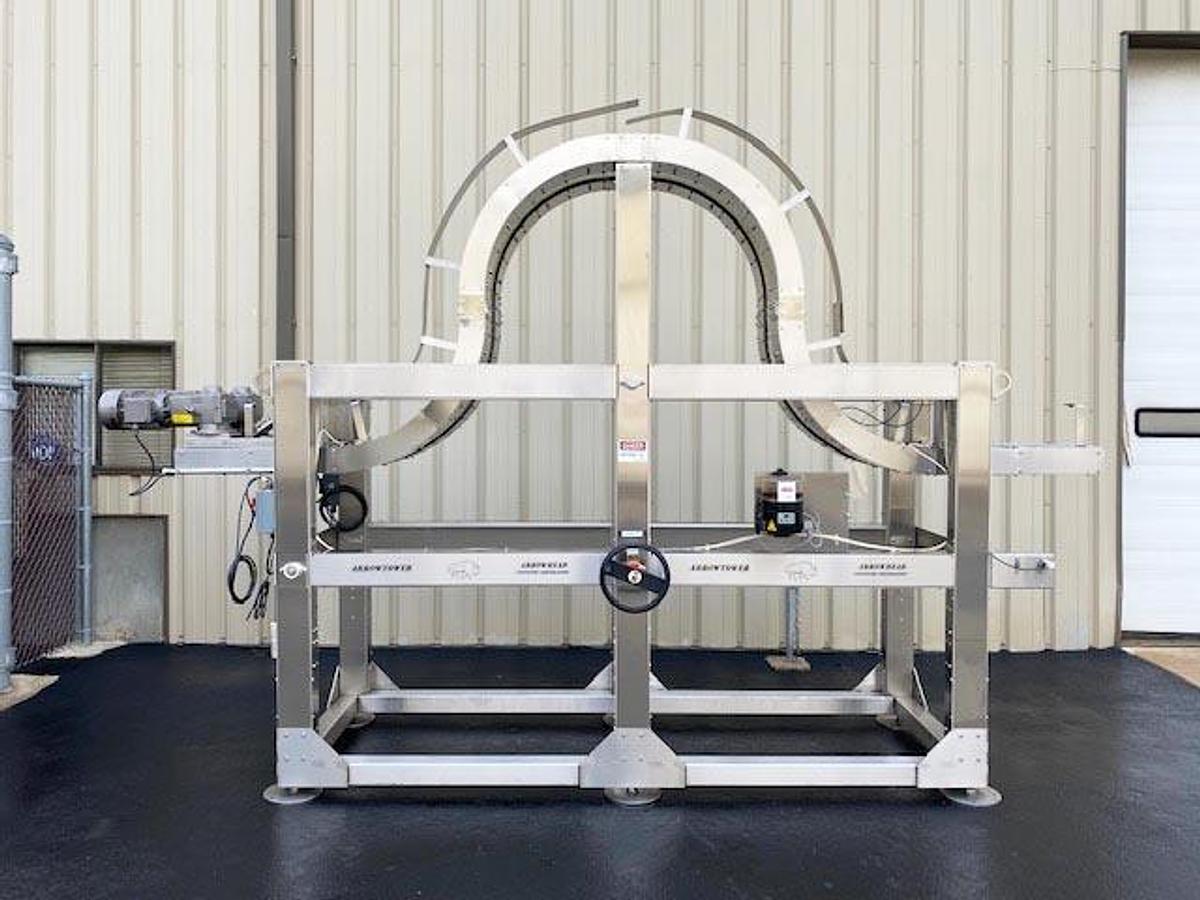

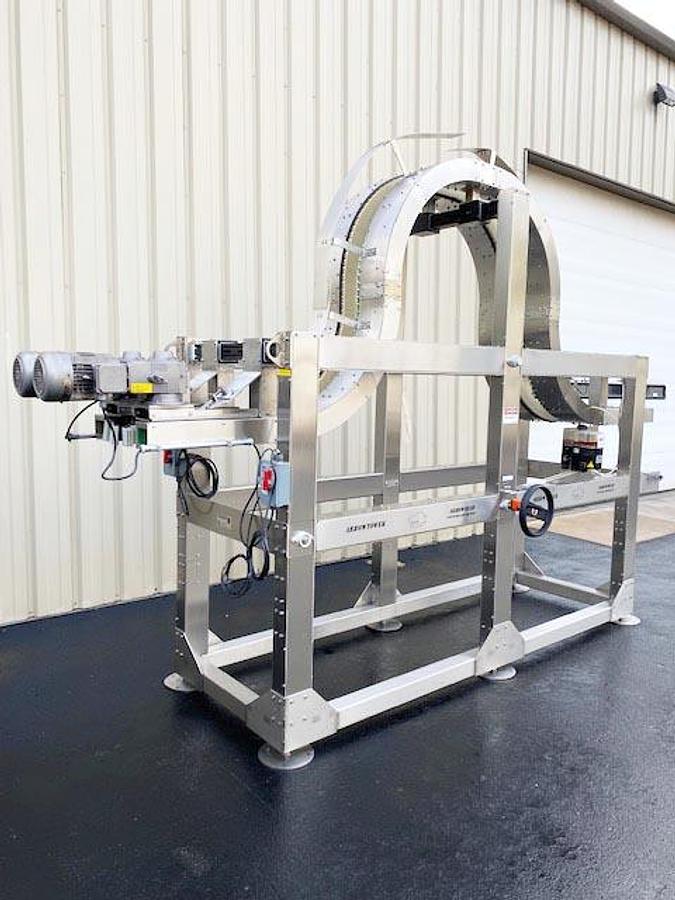

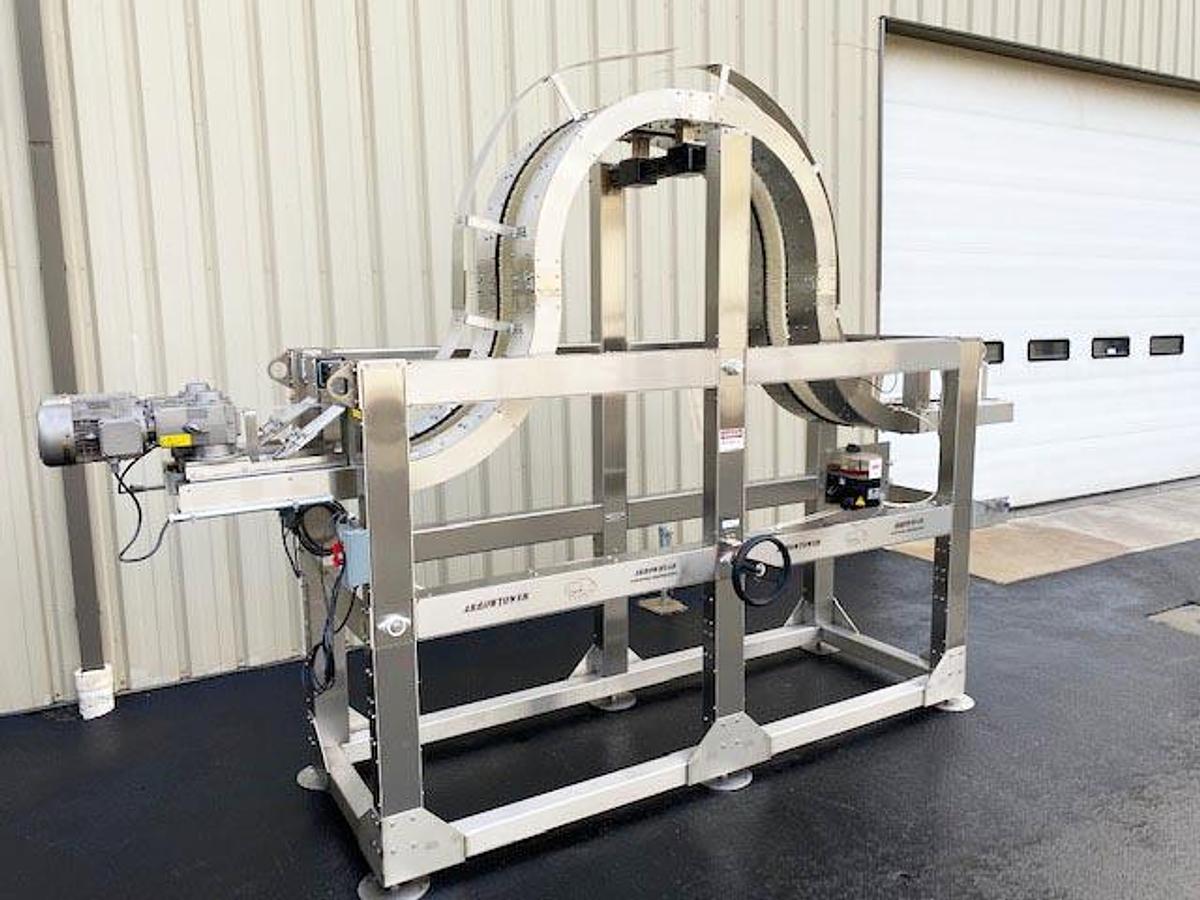

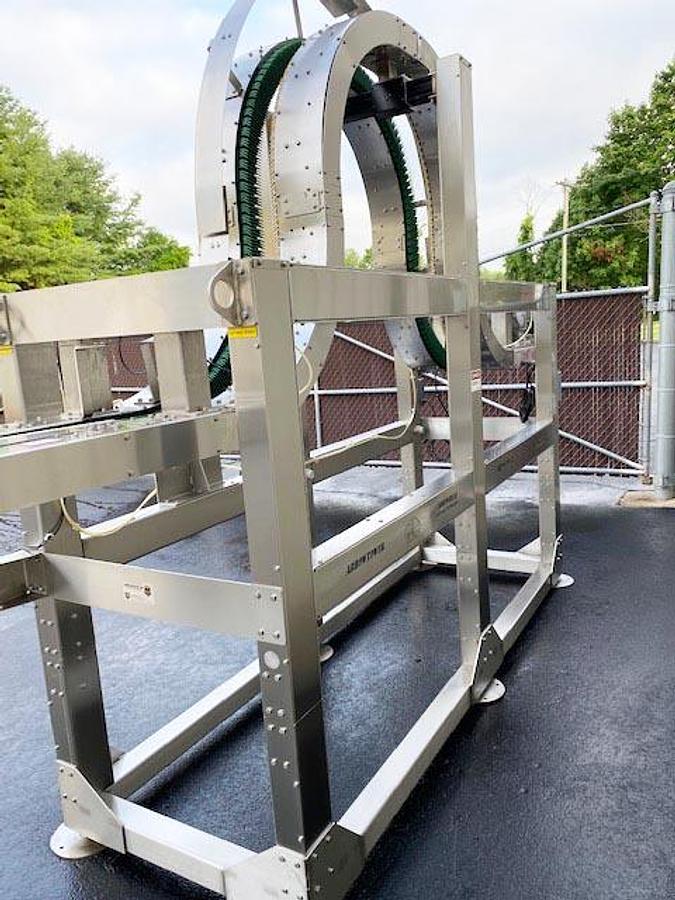

Headspace Cap Sterilizer

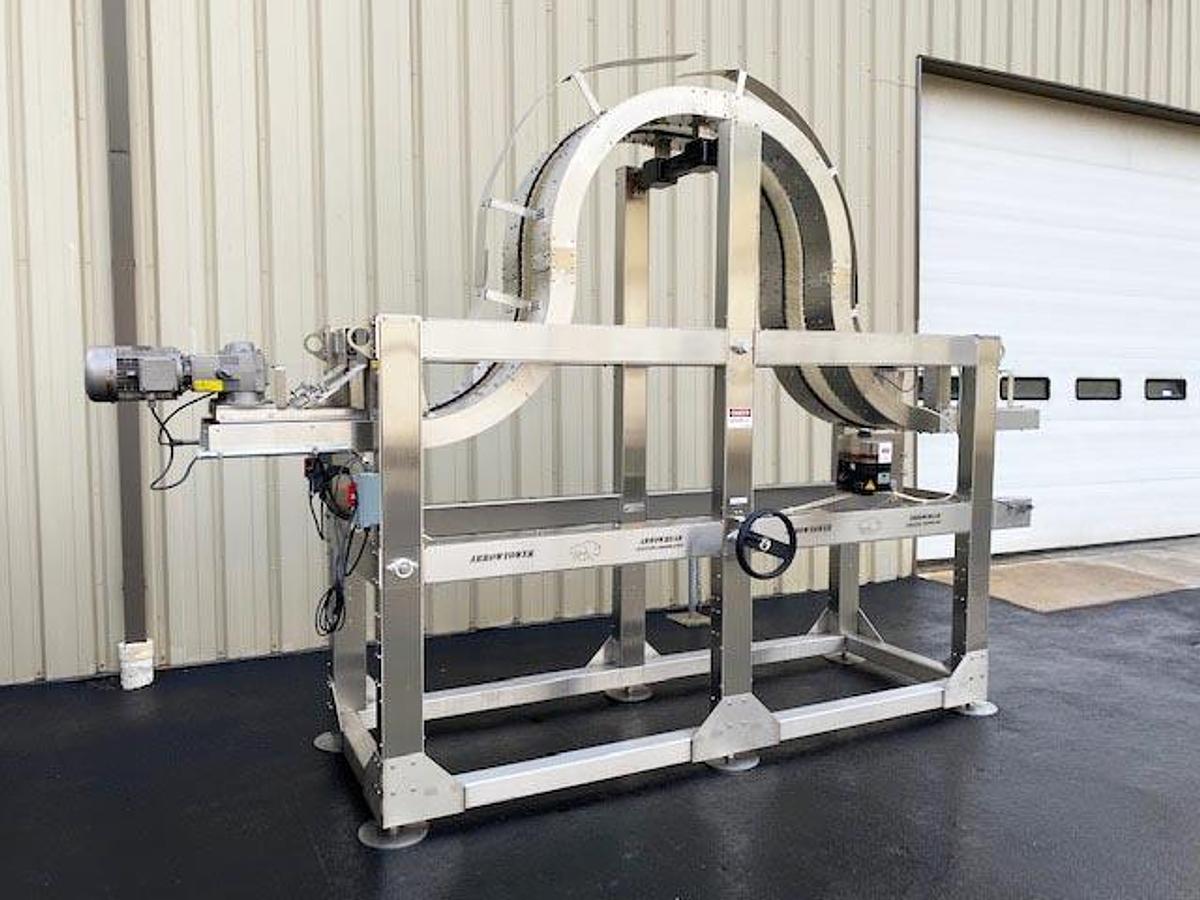

used Humpback Headspace Sterilizer Arrowhead Vertical Conveyor Headspace Sterilizer

Control your sterilization process with the Arrowhead Vertical Humpback Headspace Sterilizer. Tuck the Headspace Sterilizer between your capper and cooler on a hot fill line to sterilize the hot filled containers. Containers move through the vertical equipment gripped and tilted allowing them to stay in vertical until the hot liquid has had enough time to sterilize the headspace area and closure. Handle multiple size containers simply by hand crank adjustments. This unit runs up to 250 feet per minute and is easy to install.

Features: - Model Number GHB-S-LH-3.25-077010770D (ArrowTower)

- Serial Number GHB-196-0319

- Manufacturer Arrowhead Conveyor Corporation, Oshkosh Wisconsin

- Stainless Steel Construction

- Container Tipper - Headspace Sterilizer Conveyor

- Handwheel Adjustable for Various Size Bottles

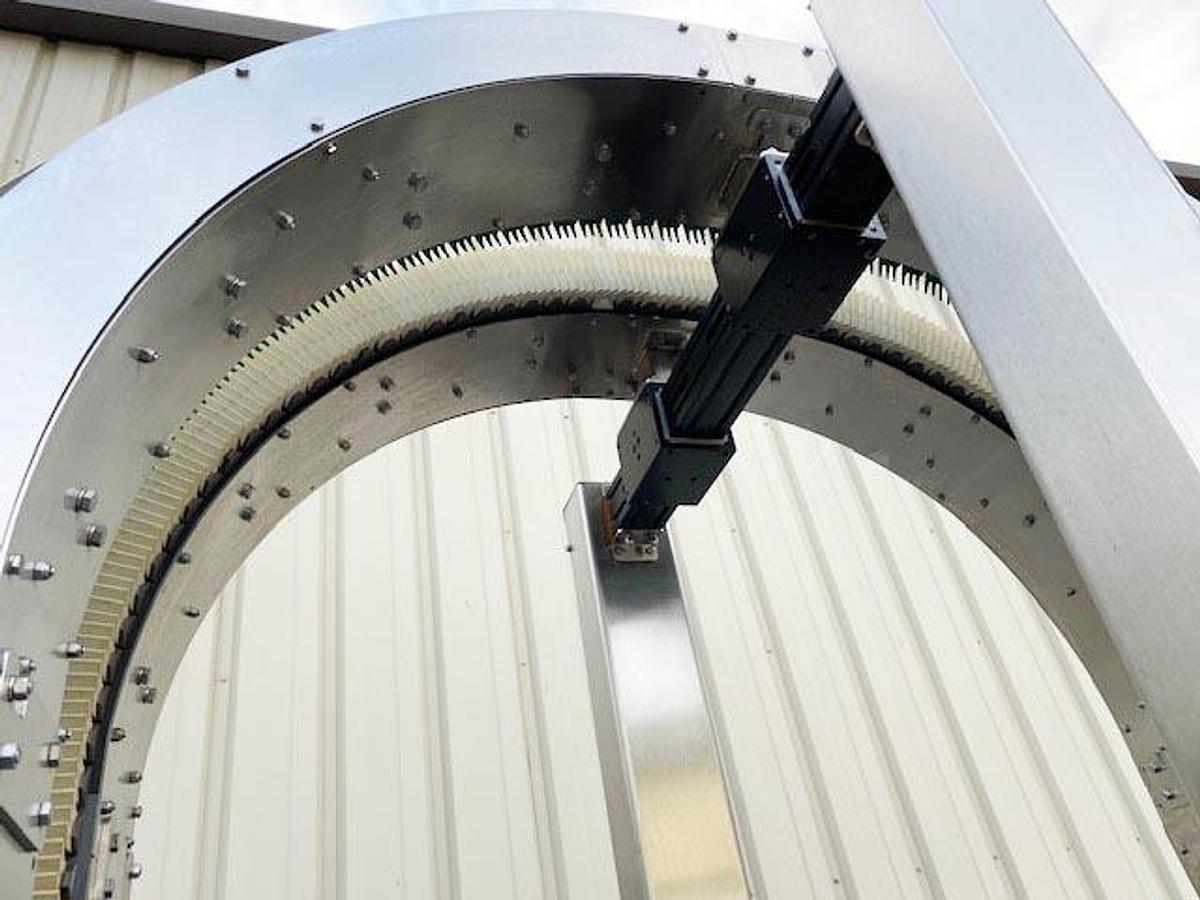

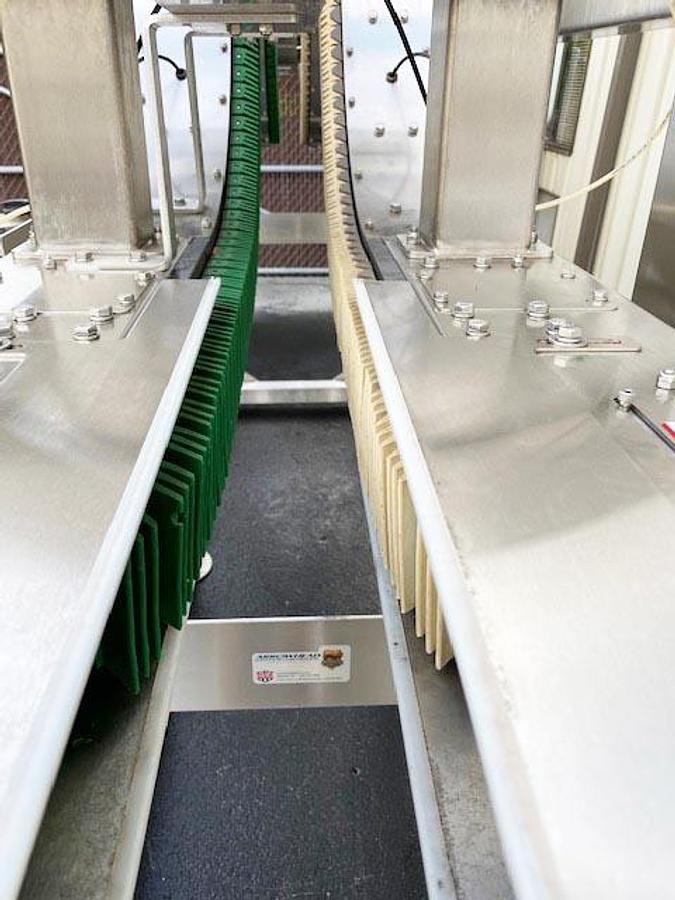

- Jaw Style Gripper Finger Pads

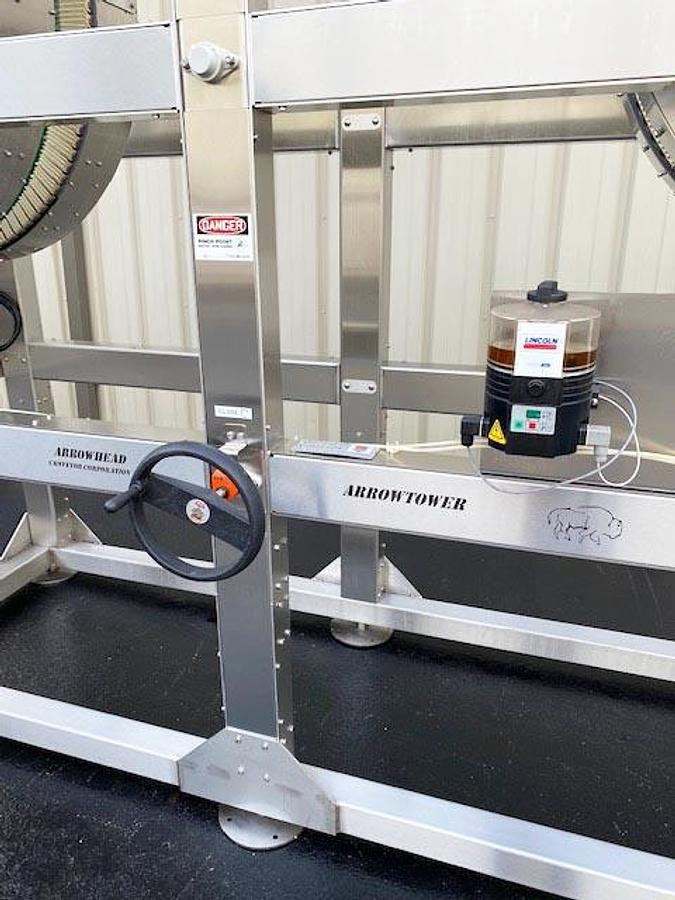

- Lincoln SKF Lubrication Unit

- Infeed/Discharge Elevation 56” (adjustable)

- (6) Stainless Steel Threaded Floor Levelers

- Includes Allen Bradley PowerFlex 70 VFD

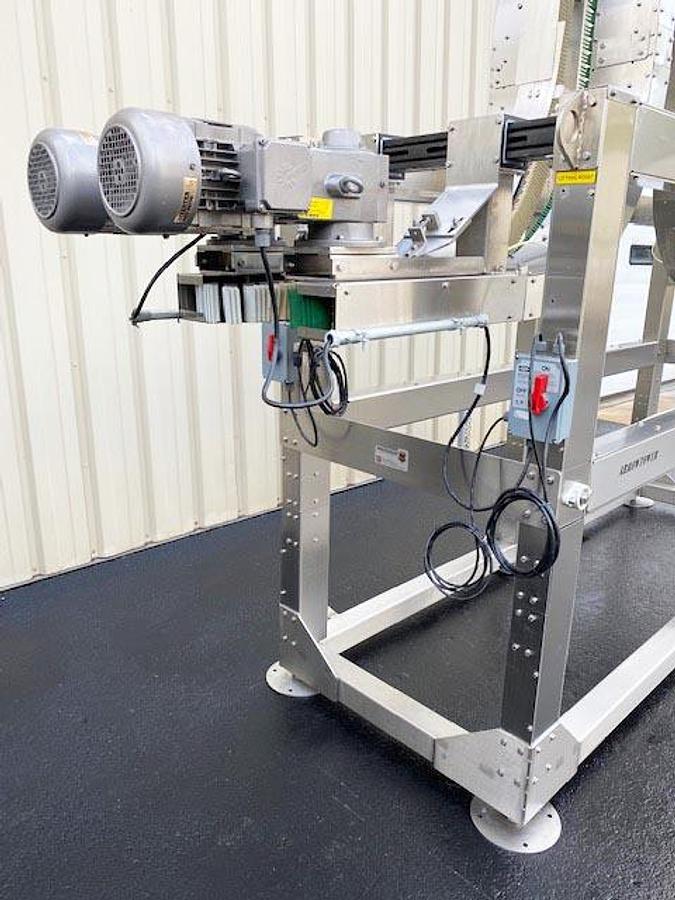

- Electrical Motors 208-230/460 Volt, 3 Ph, 60 Hz, 8.49=7.68/3.84 Amp

- Overall Dimensions 184” L x 53” W x 122” H

- Condition: Used
