Aidlin Cap Sorter Feeder

Aidlin Cap Sorter Feeder

Available quantity:1

orCall 610.683.5606

Description

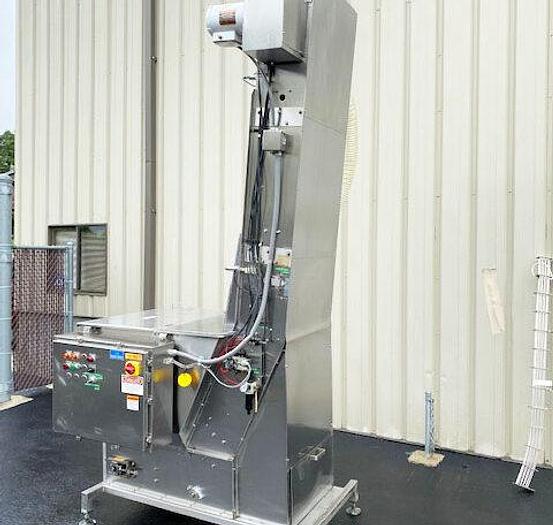

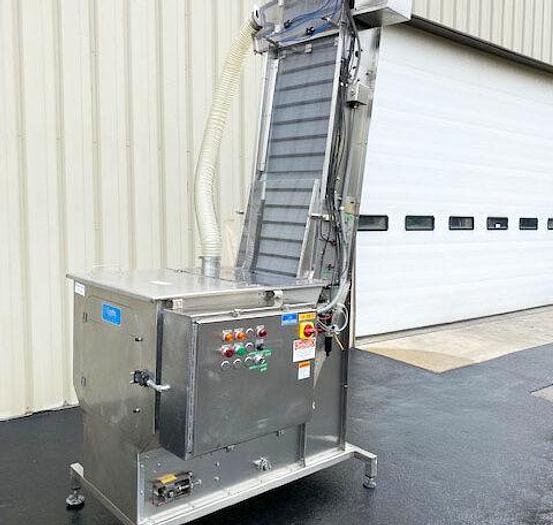

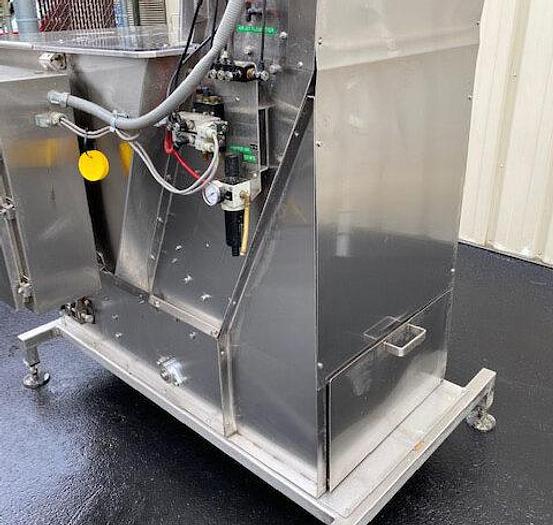

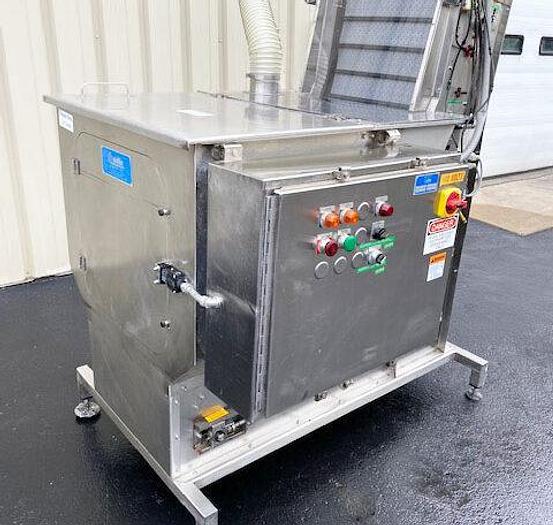

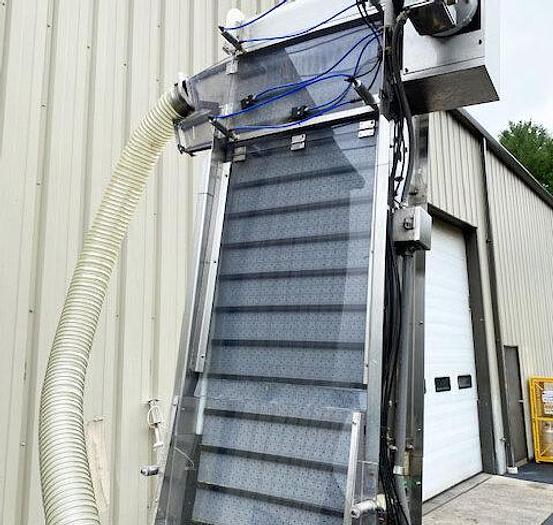

Aidlin Cap Sorter Feeder Aidlin Waterfall Style Cap Sorter Feeder Model CF 2024

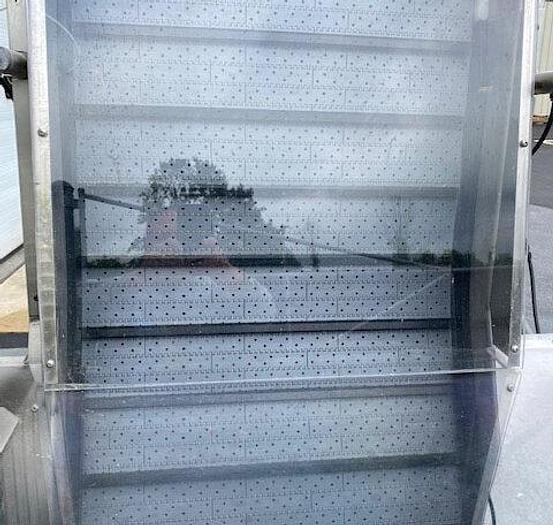

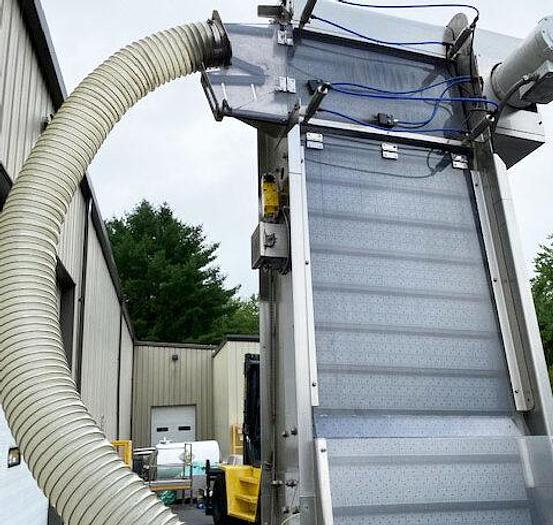

The Aidlin Cap Feeder combines the functions of cap storage, cap sorting, and cap elevation. The Cap Feeder has low space requirements, while cap replenishment takes place at floor level height, ensuring operator safety. The unit is capable of running plastic flat caps, sport caps and metal caps. Aidlin Waterfall Cap Feeder Sorter Model CF 2024 was last running 70mm Plastic Caps using pleated belts to sort/feed caps to the chute and onto the capper.

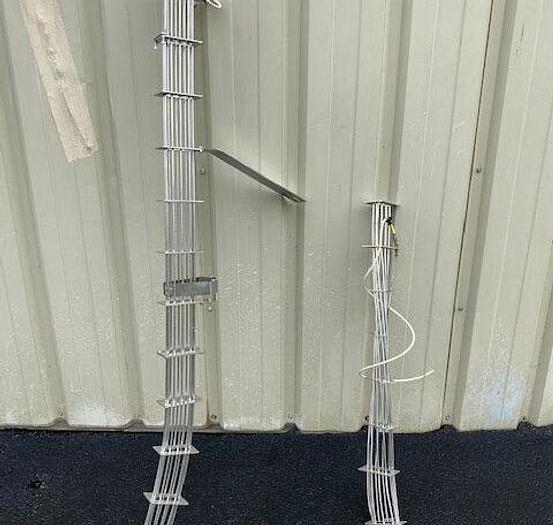

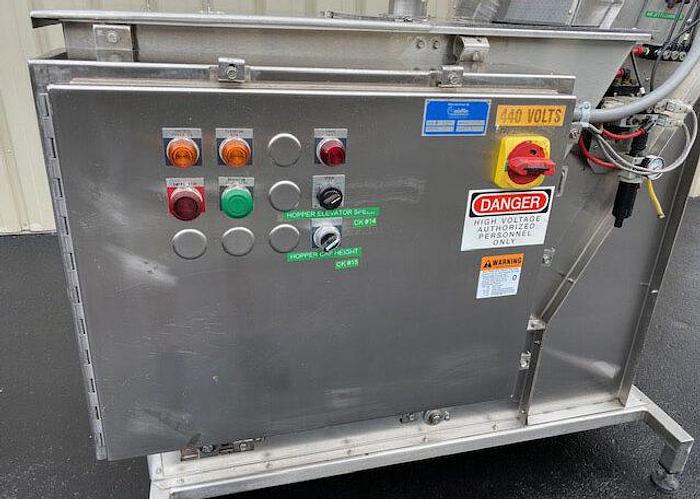

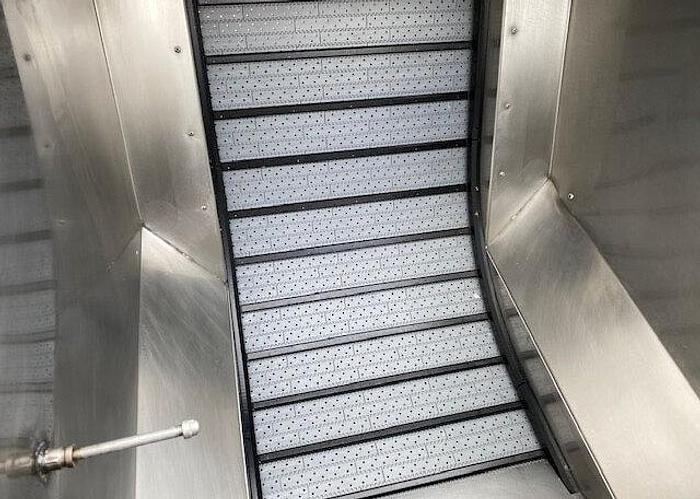

Features and Benefits: – LH Cap Discharge – Stainless Steel Construction – Stainless Steel Electrical Panel – Previously running 70mm flat plastic screw caps – Cap Discharge Height 112” – Distance Between Cap Belt Cleats/Slats 3.5” – 24” Wide Cleated Cap Belt – 20 Cubic Ft. Bulk Cap Hopper 40” L x 36” W x 36” Deep with Lexan Cover – Electrical 440 Volt, 3 Ph, 60 Hz, 30 FLA – Allen Bradley VFD – Banner Photo Eyes – Operator Controls with E-Stop – Includes Existing Cap Chute (shown in pictures) – Threaded Leg Levelers – Overall Dimensions 64” L x 48” W x 132” H

Specifications

ManufacturerAidlin
ModelCF20-24
ConditionUsed
Serial Number36 97 3245
Stock Number210717
